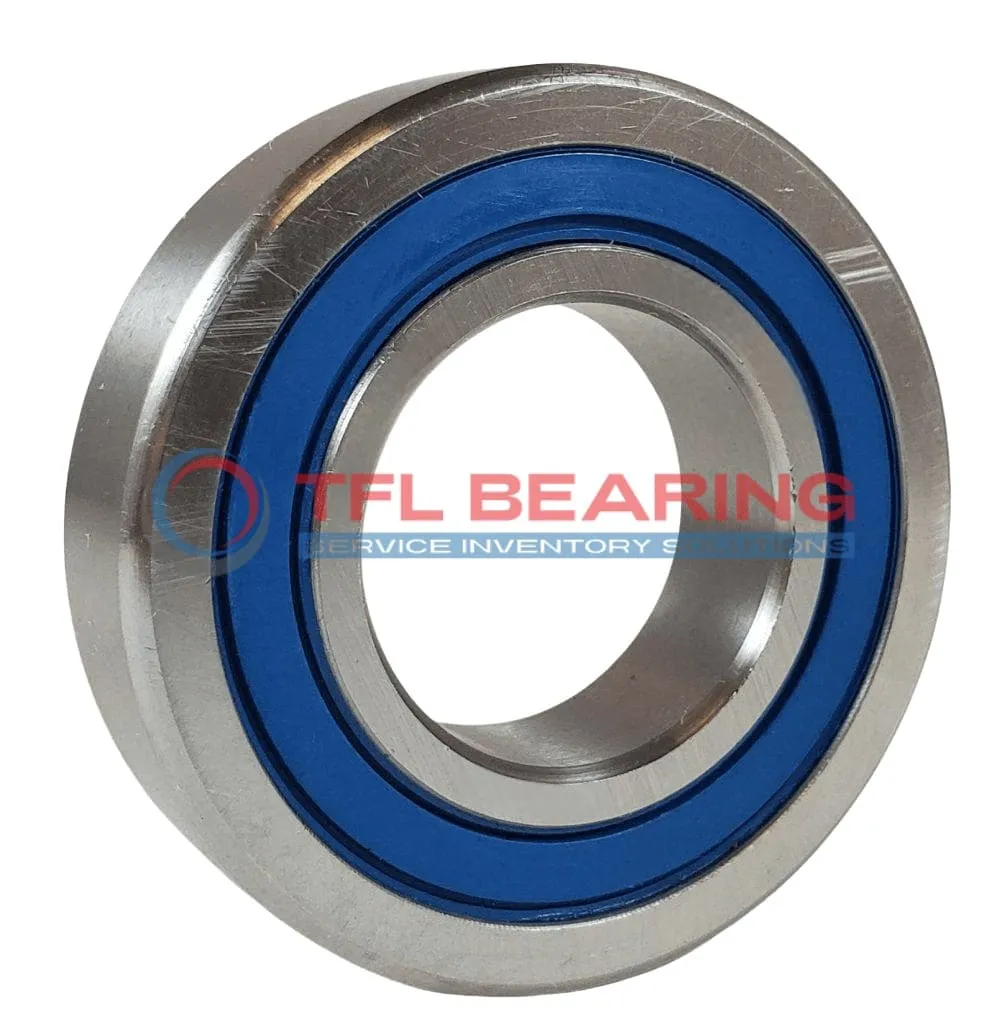

Super Precision Angular Contact Ball Bearings S71919 CDGA/P4A

Brand: TFL Bearing Interchangeable: SKF S71919 CDGA/P4A 95 mm × 130 mm × 18 mm Metric Sealed
Part number: S71919 CDGA/P4A
Super Precision Angular Contact Ball Bearings S71919 CDGA/P4A
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia95 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia130 mm
Outer Dia Tolerance-0.004mm to 0
Width18 mm
Width Tolerance-0.2mm to 0
Ball Dia11.112 mm
Performance
PreloadExtra light / Class A
Dynamic Radial Load11,115 lbf
Static Radial Load12,375 lbf
Temperature Range- 30°C to 110 °C
Max Speed21,000 rpm
Characteristics
Ball Qty28
Contact Angle15°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeSealed
Matched ArrangementNo
Number Of Bearings In Matched Set4
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationGrease
Weight0.6 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The S71919 CDGA/P4A is a super precision angular contact ball bearing with a 95mm bore and 130mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 11115 lbf and operates smoothly at speeds up to 21000 RPM.

Its sealed design keeps grease in and contaminants out, while the phenolic cage ensures quiet, long-lasting performance. The bearing works reliably in temperatures from -30°C to 110°C.

With a 15° contact angle and extra light preload, it’s ideal for high-precision applications like machine tool spindles or high-speed motors. The P4A tolerance class guarantees exceptional accuracy.

Weighing just 0.6kg, it’s part of a matched set of four bearings, suitable for universal matching in back-to-back, face-to-face, or tandem arrangements. Interchangeable with SKF models for easy replacements.

Features

Performance Features of S71919 CDGA/P4A Bearing

S71919 CDGA/P4A Bearing is designed with a 15° contact angle, optimising load distribution for precision applications.
Its chrome steel rings and balls enhance durability, while the phenolic cage ensures smooth operation at high speeds.

The bearing supports dynamic radial loads up to 11115 lbf, making it suitable for demanding tasks.
With a maximum speed of 21,000 rpm, it balances performance and efficiency in high-speed environments.

S71919 CDGA/P4A Bearing operates reliably in temperatures ranging from -30°C to 110°C.
Its sealed design and grease lubrication reduce maintenance needs, ensuring long service life.

Application

Key Fields for S71919 CDGA/P4A Bearing
S71919 CDGA/P4A Bearing is commonly used in high-speed machine tools, where its precision and angular contact design ensure accurate performance. The sealed construction helps maintain lubrication, reducing maintenance needs in demanding industrial settings.

In automotive applications, S71919 CDGA/P4A Bearing supports components like electric motors and transmissions, thanks to its ability to handle both radial and axial loads. The phenolic cage adds durability, making it suitable for long-term use.

For robotics and automation, S71919 CDGA/P4A Bearing’s extra light preload ensures smooth movement in robotic arms and CNC machines. Its high-speed capability makes it a reliable choice for precision-driven tasks.

Medical imaging devices benefit from S71919 CDGA/P4A Bearing’s consistent performance and low friction. The chrome steel construction ensures reliability in critical healthcare equipment.

In consumer electronics, S71919 CDGA/P4A Bearing can be found in high-performance printers and scanners, where its quiet operation and durability are valued. The grease lubrication ensures long-lasting performance with minimal noise.
