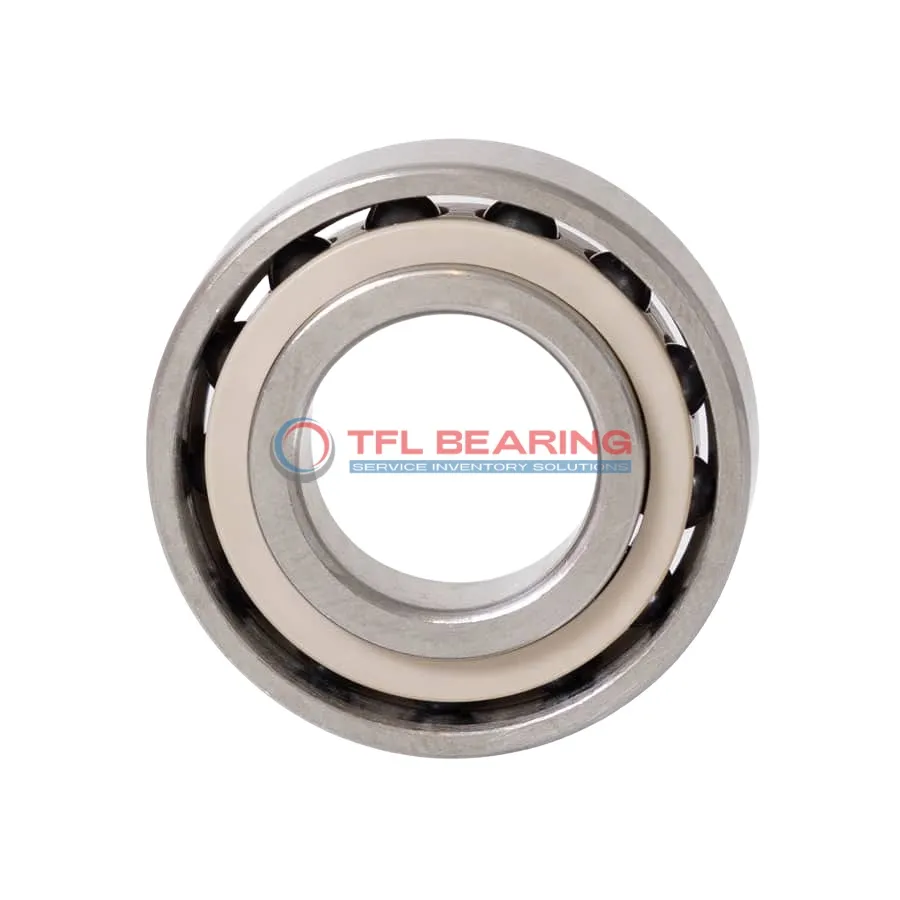

Super Precision Angular Contact Ball Bearings S71919 CD/HCP4A

Brand: TFL Bearing Interchangeable: SKF S71919 CD/HCP4A 95 mm × 130 mm × 18 mm Metric Sealed
Part number: S71919 CD/HCP4A
Super Precision Angular Contact Ball Bearings S71919 CD/HCP4A
In Stock
US$136.95 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia95 mm
Bore Dia Tolerance-0.008mm to 0
Outer Dia130 mm
Outer Dia Tolerance-0.009mm to 0
Width18 mm
Width Tolerance-0.2mm to 0
Ball Dia11.112 mm
Performance
PreloadAvailable
Dynamic Radial Load11,115 lbf
Static Radial Load12,375 lbf
Temperature Range-30° to 110 °C
Max Speed11,000 rpm
Characteristics
Ball Qty28
Contact Angle15°
Tolerance ClassP4 (ABEC-7)
System of MeasurementMetric
Seal TypeSealed
Matched ArrangementAvailable
For Load DirectionAngular Contact
LubricationLubricated
Weight0.5 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The S71919 CD/HCP4A is a super precision angular contact ball bearing with a 95mm bore and 130mm outer diameter, designed for high-performance applications. Its compact 18mm width makes it suitable for tight spaces while handling radial loads up to 11115 lbf.

The bearing features a 15° contact angle and ceramic balls, ensuring smooth operation at speeds up to 11000 RPM. The phenolic cage and sealed design provide durability and reduce maintenance needs.

With a P4 tolerance class, this bearing offers exceptional accuracy for demanding machinery. It works reliably in temperatures from -30°C to 110°C and comes pre-lubricated for immediate use.

Ideal for precision equipment like machine tools or high-speed spindles, this model is interchangeable with SKF bearings. Weighing 0.5kg, it balances strength and precision for industrial applications.

Features

Performance Features of S71919 CD/HCP4A Bearing

S71919 CD/HCP4A Bearing is designed with a 15° contact angle, optimising load distribution for angular contact applications.
Its ceramic balls and chrome steel rings enhance durability and reduce friction during high-speed operation.

The phenolic cage ensures smooth performance, even at speeds up to 11,000 rpm.
With a dynamic radial load capacity of 11115 lbf, it handles demanding conditions reliably.

S71919 CD/HCP4A Bearing operates efficiently within a temperature range of -30° to 110°C.
Its sealed design and lubrication reduce maintenance needs, making it a practical choice for precision tasks.

The P4 tolerance class ensures high accuracy, suitable for applications requiring tight tolerances.
Its matched arrangement option provides added flexibility for complex installations.

Application

Essential Roles of S71919 CD/HCP4A Bearing
S71919 CD/HCP4A Bearing is widely used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The ceramic balls reduce friction, making it suitable for high-speed operations.

In aerospace applications, S71919 CD/HCP4A Bearing supports critical components like turbine shafts, thanks to its phenolic cage and sealed design. This combination offers reliability in demanding environments.

For automation systems, S71919 CD/HCP4A Bearing excels in robotic arms and CNC machines, where its preload capability enhances stability. The P4 tolerance class ensures consistent performance in precision tasks.

Medical imaging devices benefit from S71919 CD/HCP4A Bearing’s smooth operation and low heat generation. Its lubricated design minimises maintenance, ideal for sensitive equipment.
