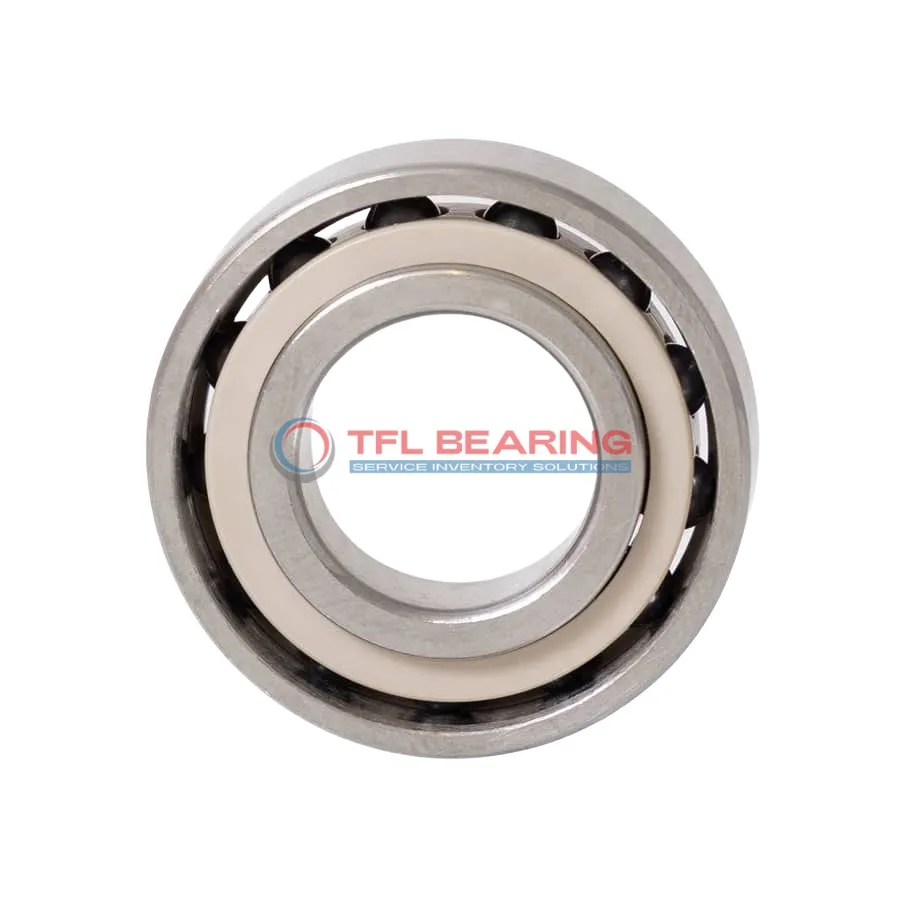

Super Precision Angular Contact Ball Bearings S71919 CB/HCP4A

Brand: TFL Bearing Interchangeable: SKF S71919 CB/HCP4A 95 mm × 130 mm × 18 mm Metric Sealed
Part number: S71919 CB/HCP4A
Super Precision Angular Contact Ball Bearings S71919 CB/HCP4A
In Stock
US$137.42 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia95 mm
Bore Dia Tolerance-0.008mm to 0
Outer Dia130 mm
Outer Dia Tolerance-0.009mm to 0
Width18 mm
Width Tolerance-0.2mm to 0
Ball Dia7.144 mm
Performance
PreloadAvailable
Dynamic Radial Load4,095 lbf
Static Radial Load4,185 lbf
Temperature Range-30° to 110 °C
Max Speed16,000 rpm
Characteristics
Ball Qty38
Contact Angle15°
Tolerance ClassP4 (ABEC-7)
System of MeasurementMetric
Seal TypeSealed
Matched ArrangementAvailable
For Load DirectionAngular Contact
LubricationLubricated
Weight0.61 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The S71919 CB/HCP4A is a super precision angular contact ball bearing with a 95mm bore and 130mm outer diameter, crafted from durable chrome steel and ceramic balls. It handles radial loads up to 4095 lbf and spins smoothly at speeds up to 16,000 RPM.

Its sealed design keeps lubrication in and contaminants out, while the phenolic cage ensures quiet, long-lasting performance. The 15° contact angle and P4 tolerance class make it ideal for high-precision applications.

This bearing is interchangeable with SKF models and comes preloaded for easy installation. Perfect for machine tools or high-speed spindles where accuracy and reliability are key.

Weighing 0.61kg, it’s robust yet lightweight. Suitable for temperatures from -30°C to 110°C, making it versatile for various industrial settings.

Features

How Is S71919 CB/HCP4A Bearing Engineered for Reliability?

S71919 CB/HCP4A Bearing features a 15° contact angle, optimised for precision angular contact applications.
The ceramic balls and chrome steel rings enhance durability while reducing friction.

With a dynamic radial load capacity of 4095 lbf, it handles demanding conditions effortlessly.
Its phenolic cage ensures smooth operation and extended service life.

The sealed design and lubrication reduce maintenance needs, making it a reliable choice.
Operating at speeds up to 16,000 rpm, it balances high performance with longevity.

Application

Industrial Uses of S71919 CB/HCP4A Bearing
S71919 CB/HCP4A Bearing is commonly used in high-speed machine tools, where its precision angular contact design ensures accurate performance. The ceramic balls reduce friction, making it ideal for applications requiring smooth rotation.

In automotive systems, S71919 CB/HCP4A Bearing supports components like electric motors and transmissions, where its sealed design protects against contaminants. The phenolic cage adds durability, even under continuous use.

For automation equipment, S71919 CB/HCP4A Bearing’s P4 tolerance class provides the reliability needed for robotic arms and CNC machines. Its matched arrangement option allows for custom setups in complex machinery.

Medical imaging devices benefit from S71919 CB/HCP4A Bearing’s consistent performance, thanks to its chrome steel rings and ceramic balls. The lubricated design ensures quiet operation, crucial in sensitive environments.

In consumer electronics, S71919 CB/HCP4A Bearing can be found in high-end printers and scanners, where its compact size and precision are key. The temperature range makes it suitable for various operating conditions.
