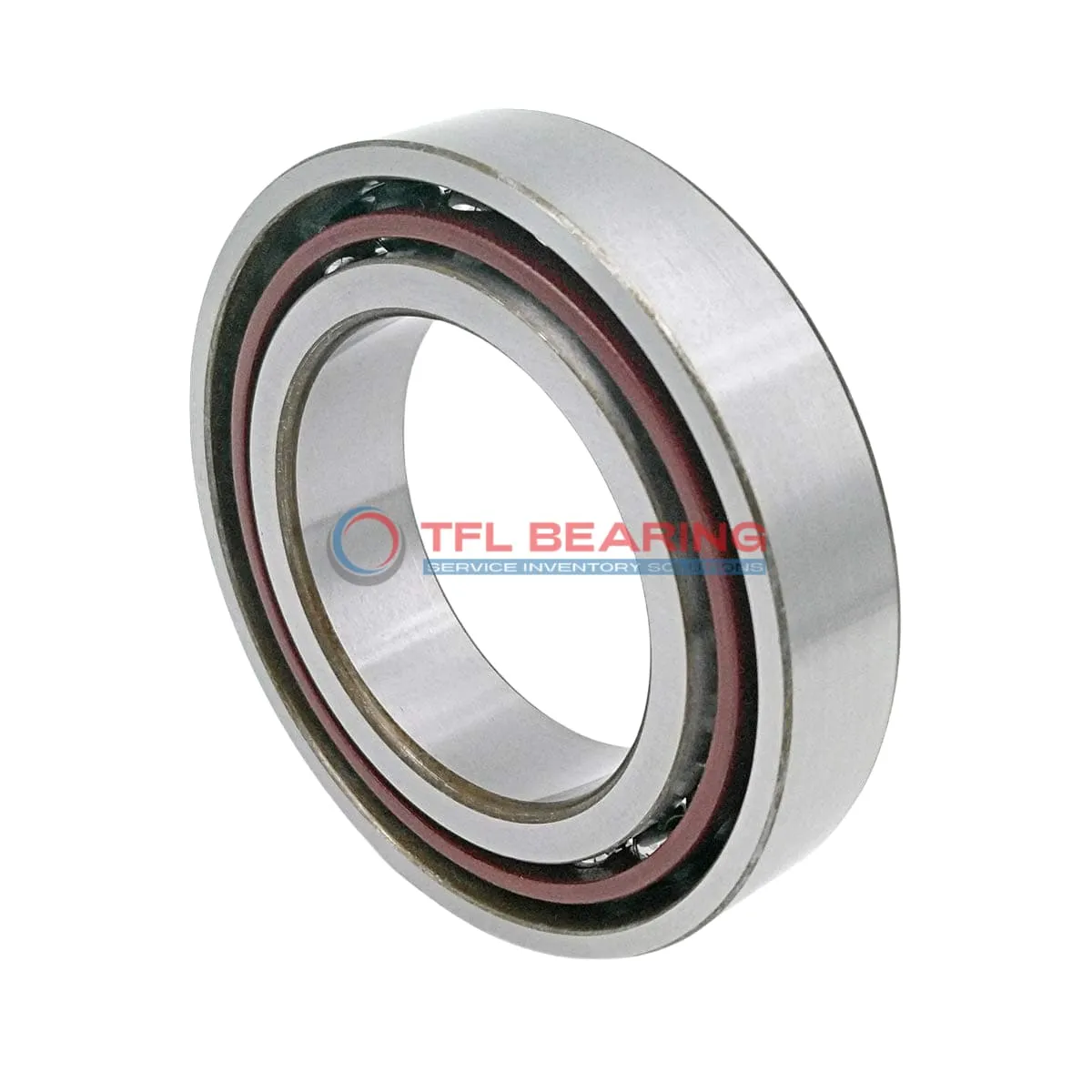

Super Precision Angular Contact Ball Bearings S71918 CD/HCP4A

Brand: TFL Bearing Interchangeable: SKF S71918 CD/HCP4A 90 mm × 125 mm × 18 mm Metric Sealed
Part number: S71918 CD/HCP4A
Super Precision Angular Contact Ball Bearings S71918 CD/HCP4A
In Stock
US$121.93 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia90 mm
Bore Dia Tolerance-0.008mm to 0
Outer Dia125 mm
Outer Dia Tolerance-0.009mm to 0
Width18 mm
Width Tolerance-0.2mm to 0
Ball Dia11.112 mm
Performance
PreloadAvailable
Dynamic Radial Load10,688 lbf
Static Radial Load11,475 lbf
Temperature Range-30° to 110 °C
Max Speed13,000 rpm
Characteristics
Ball Qty26
Contact Angle15°
Tolerance ClassP4 (ABEC-7)
System of MeasurementMetric
Seal TypeSealed
Matched ArrangementAvailable
For Load DirectionAngular Contact
LubricationLubricated
Weight0.48 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The S71918 CD/HCP4A is a super precision angular contact ball bearing with a 90mm bore and 125mm outer diameter, crafted from high-quality chrome steel. Its compact 18mm width makes it suitable for space-conscious applications.

With a 15° contact angle and ceramic balls, it handles radial loads up to 10688 lbf and spins smoothly at speeds up to 13000 RPM. The phenolic cage ensures durability and reduced friction.

Sealed for protection, this bearing comes pre-lubricated and operates efficiently in temperatures from -30°C to 110°C. Its P4 tolerance class guarantees high precision for demanding tasks.

Ideal for precision machinery like spindles or high-speed tools, it’s interchangeable with SKF bearings. Weighing 0.48kg, it offers a robust yet lightweight solution for angular contact needs.

Features

Why Choose S71918 CD/HCP4A Bearing for Precision Tasks?

S71918 CD/HCP4A Bearing features a 15° contact angle, ideal for handling combined radial and axial loads with high precision.
Its ceramic balls and chrome steel rings ensure smooth operation and reduced friction.

With a dynamic radial load capacity of 10688 lbf, S71918 CD/HCP4A Bearing performs reliably in demanding applications.
The phenolic cage maintains ball alignment, enhancing durability and reducing wear.

S71918 CD/HCP4A Bearing operates efficiently at speeds up to 13,000 rpm, making it suitable for high-speed machinery.
Its sealed design and lubrication ensure minimal maintenance and long service life.

The P4 tolerance class (ABEC-7) guarantees exceptional accuracy for precision tasks.
S71918 CD/HCP4A Bearing is preloaded and available in matched sets for optimal performance.

Application

Where Is S71918 CD/HCP4A Bearing Used?
S71918 CD/HCP4A Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The ceramic balls reduce friction, making it ideal for high-speed operations.

In the automotive sector, S71918 CD/HCP4A Bearing supports performance components like turbochargers and electric motor shafts. Its sealed design keeps contaminants out, extending service life even in demanding conditions.

For medical imaging devices, S71918 CD/HCP4A Bearing’s phenolic cage and P4 tolerance provide the quiet, vibration-free operation needed for clear results. The lubricated construction further enhances reliability in continuous-use scenarios.

Automation systems benefit from S71918 CD/HCP4A Bearing’s matched arrangement, which ensures consistent performance in robotic arms and CNC machines. The preload option allows for fine-tuning to suit specific application requirements.
