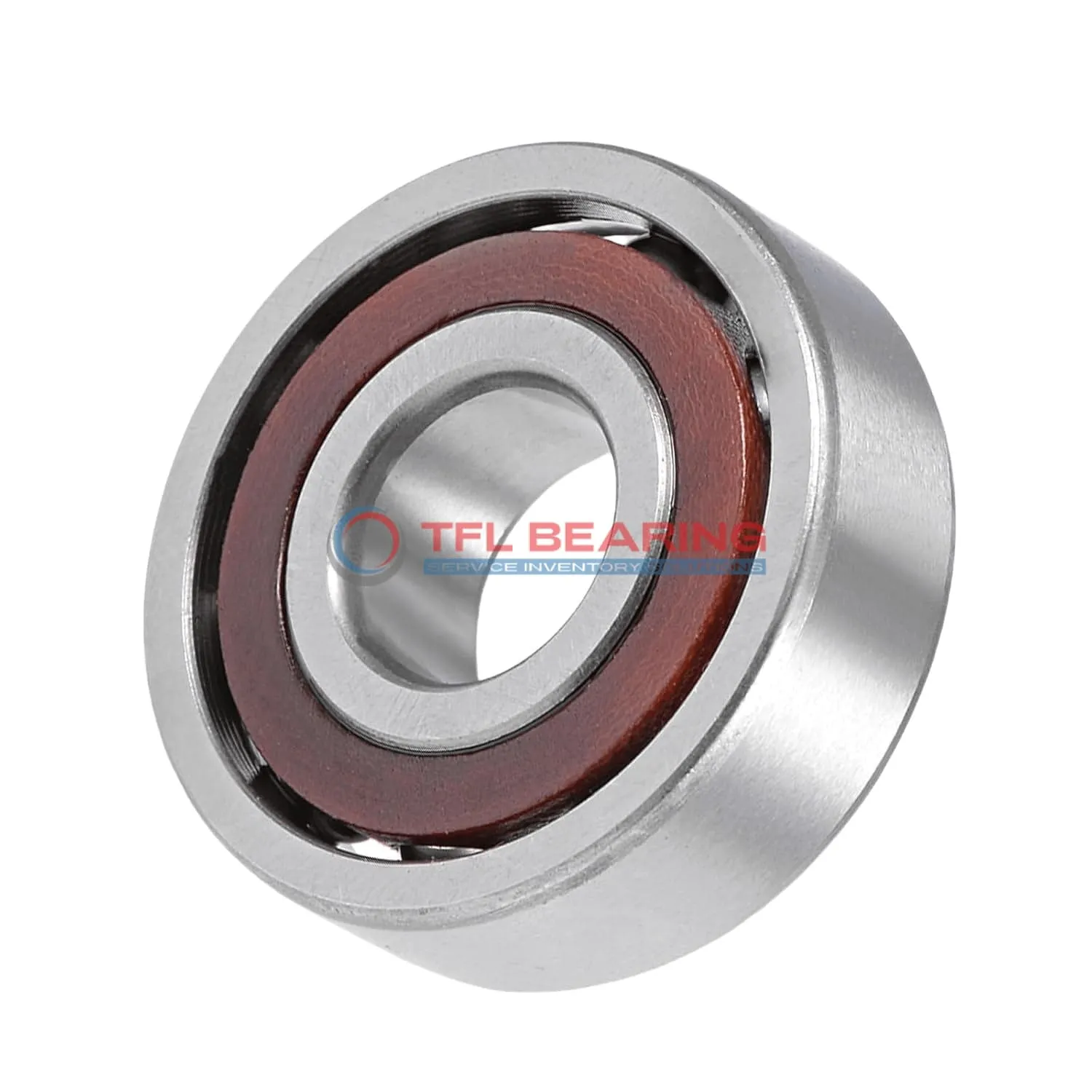

Super Precision Angular Contact Ball Bearings S71911 CDTP/HCP4B

Brand: TFL Bearing Interchangeable: SKF S71911 CDTP/HCP4B 55 mm × 80 mm × 13 mm Metric Sealed
Part number: S71911 CDTP/HCP4B
Super Precision Angular Contact Ball Bearings S71911 CDTP/HCP4B
In Stock
US$527.63 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia55 mm
Bore Dia Tolerance-0.007mm to 0
Outer Dia80 mm
Outer Dia Tolerance-0.007mm to 0
Width13 mm
Width Tolerance-0.2mm to 0
Ball Dia7.938 mm
Performance
PreloadAvailable
Dynamic Radial Load4,388 lbf
Static Radial Load3,285 lbf
Temperature Range-30° to 110 °C
Max Speed19,000 rpm
Characteristics
Ball Qty23
Contact Angle15°
Tolerance ClassP4 (ABEC-7)
System of MeasurementMetric
Seal TypeSealed
Matched ArrangementAvailable
For Load DirectionAngular Contact
LubricationLubricated
Weight0.16 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The S71911 CDTP/HCP4B is a super precision angular contact ball bearing with a 55mm bore and 80mm outer diameter, crafted from chrome steel for durability. Its compact 13mm width makes it suitable for tight spaces, while the ceramic balls enhance performance.

This bearing handles radial loads up to 4388 lbf and reaches speeds of 19,000 RPM, thanks to its phenolic cage and sealed design. The 15° contact angle ensures smooth operation under angular loads, and it comes pre-lubricated for immediate use.

With a P4 tolerance class, it offers high precision for demanding applications. Ideal for machine tools or high-speed spindles where accuracy is crucial. Works in temperatures from -30°C to 110°C.

Weighing just 0.16kg, it’s lightweight yet robust. Interchangeable with SKF bearings, simplifying replacements. The sealed design keeps contaminants out, extending service life.

Features

Performance Features of S71911 CDTP/HCP4B Bearing

S71911 CDTP/HCP4B Bearing is designed with a 15° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and ceramic balls enhance durability while reducing friction.

The phenolic cage in S71911 CDTP/HCP4B Bearing ensures smooth operation, even at high speeds up to 19,000 rpm.
This bearing maintains precision with a P4 tolerance class, suitable for demanding tasks.

S71911 CDTP/HCP4B Bearing handles dynamic radial loads up to 4388 lbf, offering reliable performance.
Its sealed design and lubrication reduce maintenance needs, extending service life.

The compact 55 mm×80 mm×13 mm size makes S71911 CDTP/HCP4B Bearing ideal for space-constrained applications.
It operates efficiently within a temperature range of -30° to 110 °C.

Application

Key Fields for S71911 CDTP/HCP4B Bearing
S71911 CDTP/HCP4B Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The ceramic balls reduce friction, making it suitable for high-speed operations.

In robotics, S71911 CDTP/HCP4B Bearing provides smooth movement in articulated arms and joints, thanks to its phenolic cage and sealed design. Its P4 tolerance class guarantees consistent performance in automated systems.

For medical imaging devices, S71911 CDTP/HCP4B Bearing’s chrome steel rings and ceramic balls offer reliability and low noise. The lubricated construction ensures long service life in critical applications.

Where Is S71911 CDTP/HCP4B Bearing Used?
S71911 CDTP/HCP4B Bearing fits well in aerospace applications, such as gyroscopes and navigation systems, due to its high-speed capabilities. The matched arrangement option allows for customised preload settings.

In semiconductor manufacturing, S71911 CDTP/HCP4B Bearing supports precision stages and wafer handlers. Its sealed design protects against contaminants, ensuring cleanroom compatibility.

Built for Heavy-Duty Use: S71911 CDTP/HCP4B Bearing
S71911 CDTP/HCP4B Bearing handles heavy radial and axial loads in industrial pumps and compressors. The 15° contact angle distributes forces evenly, enhancing durability.

For electric vehicle motors, S71911 CDTP/HCP4B Bearing’s low friction and high-speed tolerance improve efficiency. The metric dimensions make it easy to integrate into modern designs.

Automotive vs Aerospace: Applications of S71911 CDTP/HCP4B Bearing
In automotive transmissions, S71911 CDTP/HCP4B Bearing ensures smooth gear shifts with its angular contact design. The phenolic cage dampens vibrations for quieter operation.

For aerospace actuators, S71911 CDTP/HCP4B Bearing’s ceramic balls and P4 tolerance provide precision under extreme conditions. Its lightweight construction is ideal for flight-critical components.
