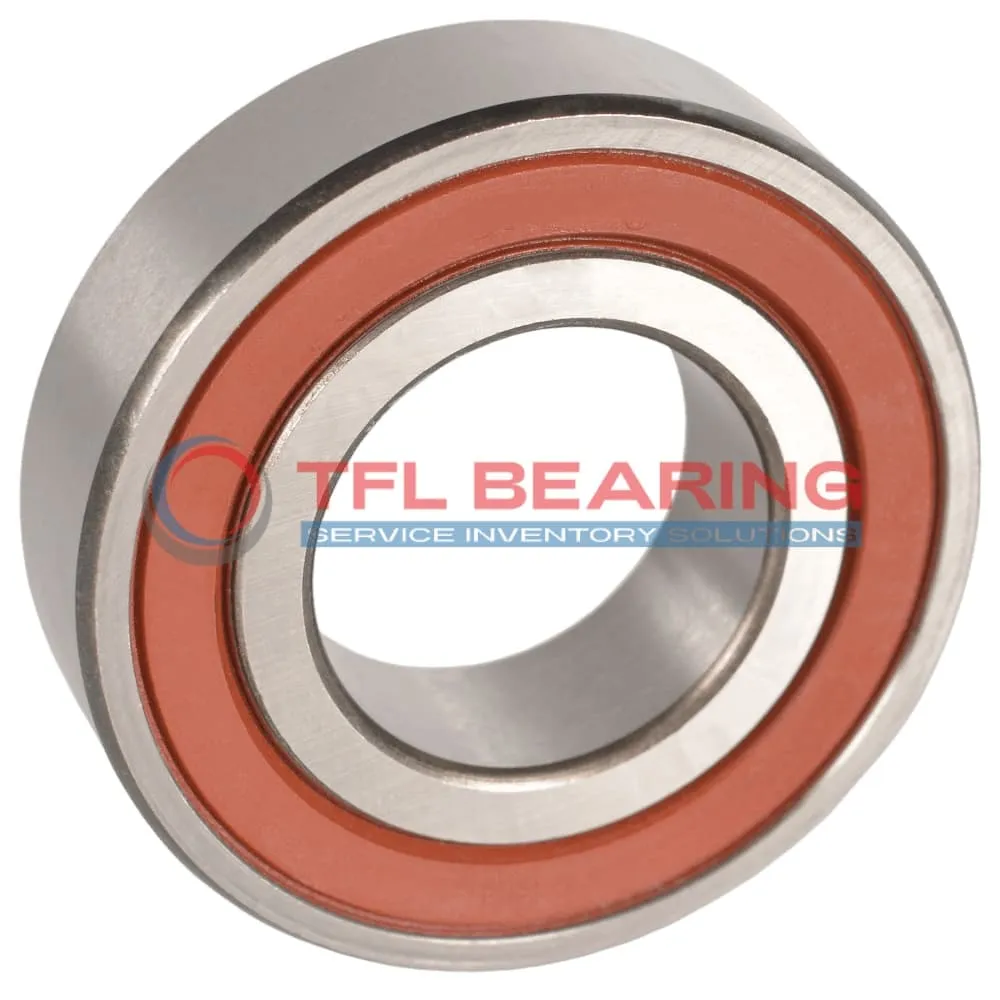

Super Precision Angular Contact Ball Bearings S7030 CDGA/P4A

Brand: TFL Bearing Interchangeable: SKF S7030 CDGA/P4A 150 mm × 225 mm × 35 mm Metric Sealed
Part number: S7030 CDGA/P4A
Super Precision Angular Contact Ball Bearings S7030 CDGA/P4A
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia150 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia225 mm
Outer Dia Tolerance-0.004mm to 0
Width35 mm
Width Tolerance-0.2mm to 0
Ball Dia23.812 mm
Performance
PreloadExtra light / Class A
Dynamic Radial Load38,700 lbf
Static Radial Load42,750 lbf
Temperature Range- 30°C to 110 °C
Max Speed11,000 rpm
Characteristics
Ball Qty22
Contact Angle15°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeSealed
Matched ArrangementNo
Number Of Bearings In Matched Set4
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationGrease
Weight4.21 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The S7030 CDGA/P4A is a super precision angular contact ball bearing with a 150mm bore and 225mm outer diameter, crafted from high-quality chrome steel. Its 15° contact angle and sealed design ensure smooth operation under angular loads.

This bearing handles dynamic radial loads up to 38700 lbf and spins efficiently at speeds up to 11000 RPM. The phenolic cage offers durability while the grease lubrication simplifies maintenance.

With a P4A tolerance class, it delivers exceptional accuracy for demanding applications. The bearing works reliably in temperatures from -30°C to 110°C.

Ideal for precision machinery like spindles or CNC equipment, it can be arranged back-to-back, face-to-face, or tandem. Weighing 4.21kg, it’s robust yet manageable for its size. Interchangeable with SKF bearings for easy replacement.

Features

Performance Features of S7030 CDGA/P4A Bearing

S7030 CDGA/P4A Bearing is crafted with chrome steel rings and balls, offering high precision and durability.
The 15° contact angle ensures efficient handling of both radial and axial loads in demanding applications.

With a dynamic radial load capacity of 38,700 lbf, it performs reliably under heavy loads.
The phenolic cage maintains ball alignment, reducing friction and extending operational life.

S7030 CDGA/P4A Bearing operates smoothly at speeds up to 11,000 rpm.
Its sealed design and grease lubrication minimise maintenance needs while ensuring consistent performance.

The P4A tolerance class guarantees high precision, making it ideal for critical applications.
Its universal matching capability allows flexible arrangement options for various setups.

Application

Industrial Uses of S7030 CDGA/P4A Bearing
S7030 CDGA/P4A Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate radial and axial load handling. The sealed construction helps maintain performance in environments with dust or debris.

In robotics, S7030 CDGA/P4A Bearing supports articulated arms, providing smooth motion and reliability in automated assembly lines. Its phenolic cage reduces friction, making it suitable for high-speed operations.

For aerospace applications, S7030 CDGA/P4A Bearing’s chrome steel rings and grease lubrication offer durability in critical components like landing gear systems. The P4A tolerance class ensures consistent performance under demanding conditions.

Medical imaging devices benefit from S7030 CDGA/P4A Bearing’s precision, particularly in rotating parts of MRI machines. The extra-light preload enhances stability, reducing vibration during operation.

In electric motors, S7030 CDGA/P4A Bearing handles high speeds efficiently, thanks to its balanced design and quality materials. The universal matching feature allows flexible installation in various configurations.
