Super Precision Angular Contact Ball Bearings S7020 ACDTP/HCP4B

Super Precision Angular Contact Ball Bearings S7020 ACDTP/HCP4B

The S7020 ACDTP/HCP4B is a super precision angular contact ball bearing with a 100mm bore and 150mm outer diameter, crafted from high-quality chrome steel. It features a 25° contact angle and ceramic balls for smooth operation.

This sealed bearing handles radial loads up to 17842 lbf and can spin at speeds up to 9500 RPM. Its phenolic cage ensures durability and reduced friction during high-speed use.

With a P4 tolerance class, it offers exceptional accuracy for demanding applications. The bearing works reliably in temperatures from -30°C to 110°C.

Ideal for precision machinery like CNC spindles or high-performance motors, where low vibration and tight tolerances are crucial. Weighing 1.06kg, it’s a robust choice for industrial settings.

Matched arrangements and preload options are available for enhanced performance. Compliant with industry standards, it’s interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S7020 ACDTP/HCP4B
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 24 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 15.875 mm
  • Ball Qty 22
  • Contact Angle 25°
  • Tolerance Class P4 (ABEC-7)
  • System of Measurement Metric
  • Seal Type Sealed
  • Matched Arrangement Available
  • Preload Available
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Ceramic
  • Cage Material Phenolic
  • Dynamic Radial Load 17842 lbf
  • Static Radial Load 18000 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Max Speed 9500 rpm
  • Weight 1.06 kg
  • Price（$） 1276.461

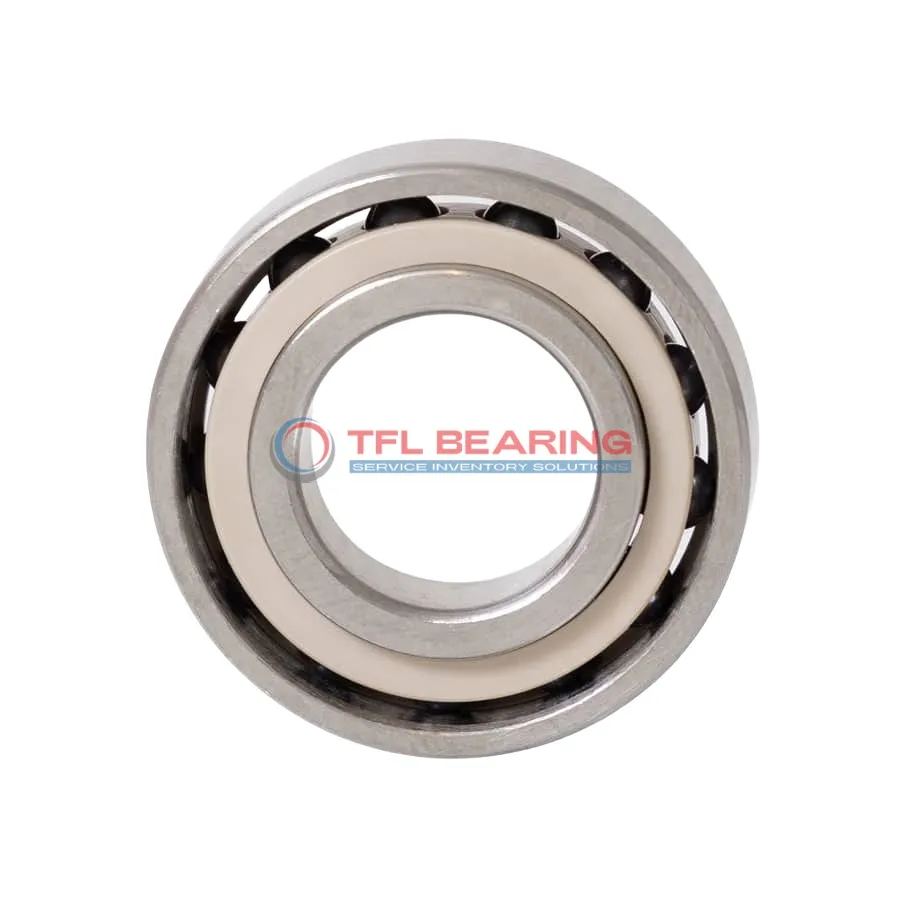

Super Precision Angular Contact Ball Bearings S7020 ACDTP/HCP4B dimension drawing
Download DWG Download PDF

Features

Performance Features of S7020 ACDTP/HCP4B Bearing

S7020 ACDTP/HCP4B Bearing is designed with a 25° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and ceramic balls enhance durability and reduce friction during high-speed operation.

The phenolic cage ensures smooth performance, even at speeds up to 9,500 rpm.
With a dynamic radial load capacity of 17,842 lbf, it handles demanding conditions reliably.

S7020 ACDTP/HCP4B Bearing operates efficiently within a temperature range of -30° to 110°C.
Its sealed design and lubrication minimise maintenance needs, ensuring long service life.

Application

Key Fields for S7020 ACDTP/HCP4B Bearing
S7020 ACDTP/HCP4B Bearing is widely used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The ceramic balls reduce friction, making it ideal for high-speed operations.

In robotics, S7020 ACDTP/HCP4B Bearing provides smooth motion control for articulated arms, thanks to its phenolic cage and sealed design. This combination enhances durability in repetitive movements.

For aerospace applications, S7020 ACDTP/HCP4B Bearing’s P4 tolerance class meets the strict requirements of flight control systems. Its ability to handle both radial and axial loads makes it versatile for various aircraft components.

The sealed construction of S7020 ACDTP/HCP4B Bearing also suits medical imaging devices, where contamination-free operation is essential. The lubricated design ensures long-term reliability in sensitive environments.
