Super Precision Angular Contact Ball Bearings S7020 ACD/P4ADBB

Super Precision Angular Contact Ball Bearings S7020 ACD/P4ADBB

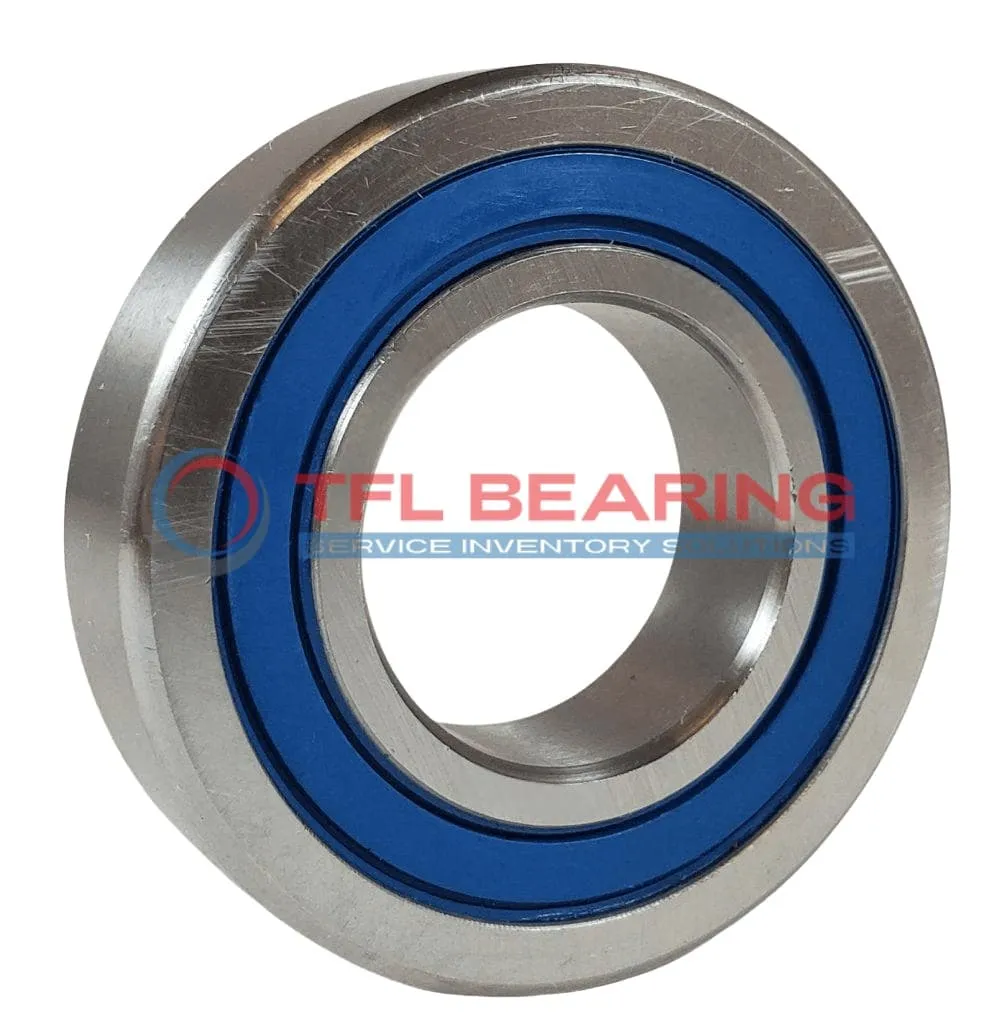

The S7020 ACD/P4ADBB is a super precision angular contact ball bearing with a 100mm bore and 150mm outer diameter, crafted from durable chrome steel. Its 25° contact angle and sealed design ensure smooth operation under angular loads.

This matched pair of bearings handles dynamic radial loads up to 28575 lbf and spins at speeds up to 16250 RPM. The phenolic cage and grease lubrication provide quiet, long-lasting performance in temperatures from -30°C to 110°C.

With P4A tolerance class and light preload, it offers excellent accuracy for demanding applications. The 48mm width makes it compact for its load capacity.

Ideal for high-precision machinery like CNC spindles or grinding equipment where both radial and axial loads are present. The matched DB arrangement ensures balanced performance in paired installations.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S7020 ACD/P4ADBB
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 48 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 15.875 mm
  • Ball Qty 22
  • Contact Angle 25°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Sealed
  • Matched Arrangement 2 bearings <> DB
  • Number Of Bearings In Matched Set 2
  • Universal Matching Bearing No
  • Preload Light / Class B
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 28575 lbf
  • Static Radial Load 36000 lbf
  • Lubrication Grease
  • Temperature Range - 30°C to 110 °C
  • Max Speed 16250 rpm
  • Weight 2.55 kg
Super Precision Angular Contact Ball Bearings S7020 ACD/P4ADBB dimension drawing
Download DWG Download PDF
