Super Precision Angular Contact Ball Bearings S7020 ACD/P4ADBA

Brand: TFL Bearing Interchangeable: SKF S7020 ACD/P4ADBA 100 mm × 150 mm × 48 mm Metric Sealed
Part number: S7020 ACD/P4ADBA
Super Precision Angular Contact Ball Bearings S7020 ACD/P4ADBA
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia100 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia150 mm
Outer Dia Tolerance-0.004mm to 0
Width48 mm
Width Tolerance-0.2mm to 0
Ball Dia15.875 mm
Performance
PreloadExtra light / Class A
Dynamic Radial Load28,575 lbf
Static Radial Load36,000 lbf
Temperature Range- 30°C to 110 °C
Max Speed16,250 rpm
Characteristics
Ball Qty22
Contact Angle25°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeSealed
Matched Arrangement2 bearings <> DB
Number Of Bearings In Matched Set2
Universal Matching BearingNo
For Load DirectionAngular Contact
LubricationGrease
Weight2.55 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic

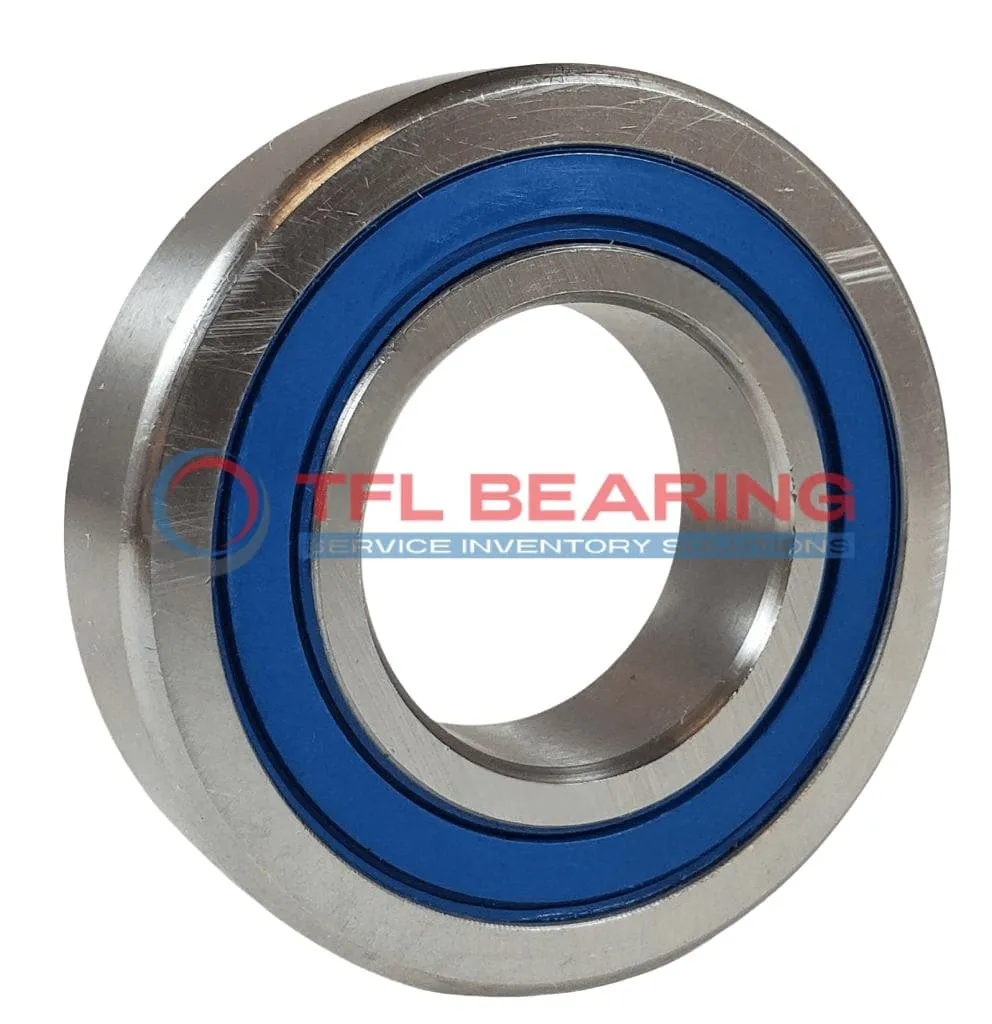

Dimension drawing · click to enlarge

Description

The S7020 ACD/P4ADBA is a super precision angular contact ball bearing with a 100mm bore and 150mm outer diameter, crafted from durable chrome steel. Its compact design measures 100mm×150mm×48mm, making it suitable for tight spaces.

This bearing handles radial loads up to 28575 lbf and spins smoothly at speeds up to 16250 RPM. With a 25° contact angle and extra light preload, it offers excellent stability and precision.

Its sealed design keeps grease in and contaminants out, while the phenolic cage ensures quiet operation. The matched pair arrangement (DB) enhances performance in high-precision applications.

Ideal for machine tools, spindles, or other high-speed equipment requiring accuracy. It operates in temperatures from -30°C to 110°C and is interchangeable with SKF bearings. Weighing 2.55kg, it’s robust yet manageable for its size.

Features

Performance Features of S7020 ACD/P4ADBA Bearing

S7020 ACD/P4ADBA Bearing is designed with a 25° contact angle, optimising load distribution for angular contact applications.
The chrome steel rings and balls ensure durability under high dynamic radial loads of 28575 lbf.

Its phenolic cage maintains ball alignment, reducing friction and enhancing performance.
With a maximum speed of 16,250 rpm, it delivers smooth operation in precision settings.

The sealed design and grease lubrication minimise maintenance needs.
S7020 ACD/P4ADBA Bearing operates reliably in temperatures from -30°C to 110°C.

The extra light preload (Class A) ensures precise movement with minimal resistance.
Its matched arrangement of two bearings (DB) provides stability for demanding applications.

Application

Key Fields for S7020 ACD/P4ADBA Bearing
S7020 ACD/P4ADBA Bearing is widely used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The sealed construction helps maintain performance in environments with dust or debris.

In robotics, S7020 ACD/P4ADBA Bearing provides smooth motion control for articulated arms, thanks to its extra-light preload and phenolic cage. The matched arrangement also reduces vibration in high-speed applications.

For aerospace components, S7020 ACD/P4ADBA Bearing’s chrome steel construction offers durability under radial and axial loads. Its P4A tolerance class makes it suitable for critical systems requiring tight precision.

Automotive testing equipment benefits from S7020 ACD/P4ADBA Bearing’s ability to handle dynamic loads at high speeds. The grease lubrication ensures long service life even in continuous operation.

In medical imaging devices, S7020 ACD/P4ADBA Bearing’s low-noise performance enhances the accuracy of diagnostic tools. The temperature range allows reliable use in various clinical environments.
