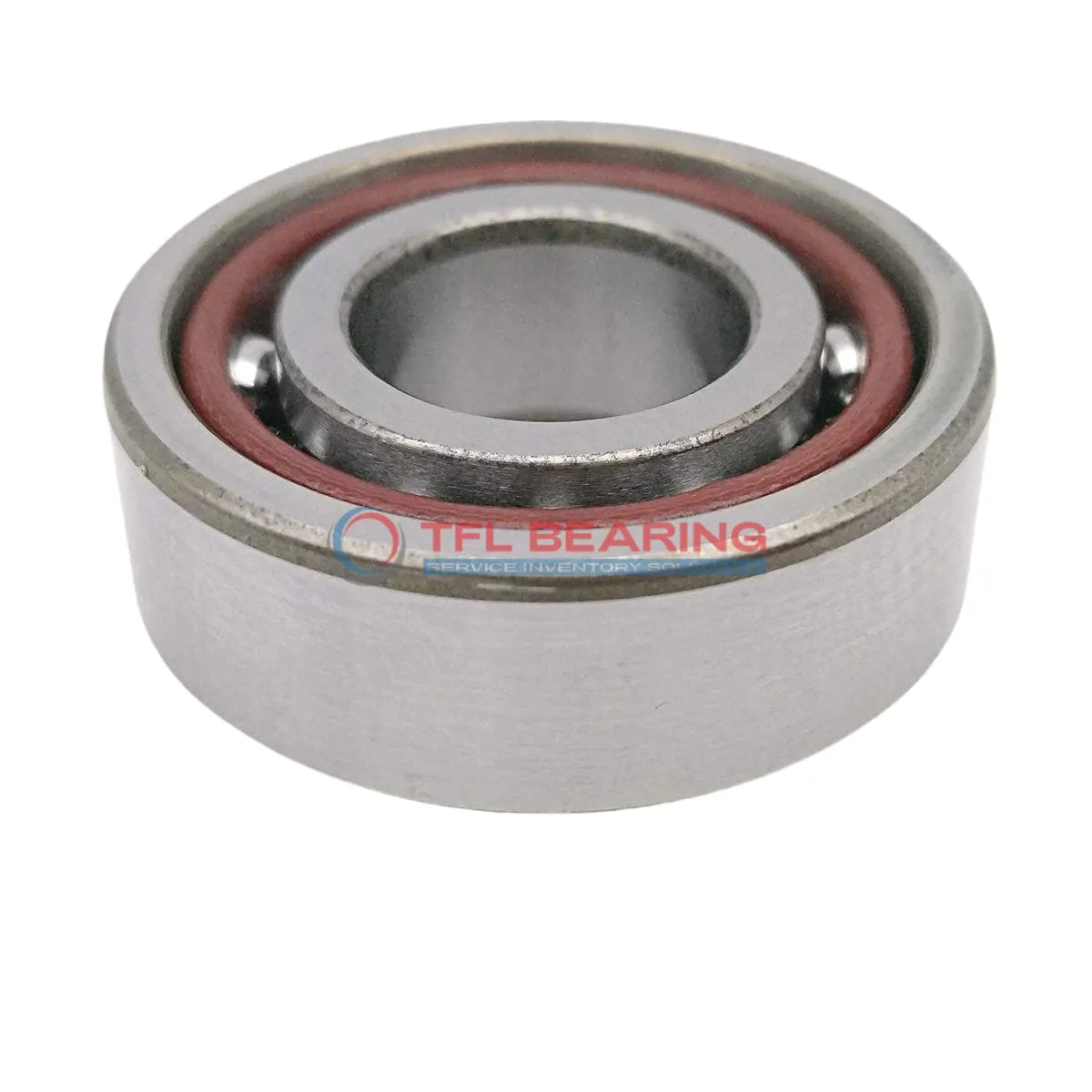

Super Precision Angular Contact Ball Bearings S7018 CDGA/HCP4A

Brand: TFL Bearing Interchangeable: SKF S7018 CDGA/HCP4A 90 mm × 140 mm × 24 mm Metric Sealed
Part number: S7018 CDGA/HCP4A
Super Precision Angular Contact Ball Bearings S7018 CDGA/HCP4A
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia90 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia140 mm
Outer Dia Tolerance-0.004mm to 0
Width24 mm
Width Tolerance-0.2mm to 0
Ball Dia15.875 mm
Performance
PreloadExtra light / Class A
Dynamic Radial Load17,842 lbf
Static Radial Load17,212 lbf
Temperature Range- 30°C to 110 °C
Max Speed15,000 rpm
Characteristics
Ball Qty20
Contact Angle15°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeSealed
Matched ArrangementNo
Number Of Bearings In Matched Set3
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationGrease
Weight1.02 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The S7018 CDGA/HCP4A is a super precision angular contact ball bearing with a 90mm bore and 140mm outer diameter, crafted from high-quality chrome steel. It features a 15° contact angle and ceramic balls for smooth operation.

This bearing handles radial loads up to 17842 lbf and spins at speeds up to 15000 RPM, making it suitable for high-performance applications. Its sealed design and grease lubrication ensure low maintenance.

With a phenolic cage and P4A tolerance class, it offers excellent accuracy and durability. The bearing works in temperatures from -30°C to 110°C and weighs 1.02kg.

Ideal for precision machinery like spindles or CNC equipment, it can be arranged back-to-back, face-to-face, or tandem. It’s also interchangeable with SKF bearings for easy replacement.

Features

Performance Features of S7018 CDGA/HCP4A Bearing

S7018 CDGA/HCP4A Bearing features a 15° contact angle, optimised for precision angular contact applications.
Its chrome steel rings and ceramic balls ensure smooth operation under high radial loads.

The phenolic cage in S7018 CDGA/HCP4A Bearing maintains ball alignment, reducing friction and wear.
With a dynamic radial load capacity of 17842 lbf, it handles demanding conditions reliably.

S7018 CDGA/HCP4A Bearing operates efficiently at speeds up to 15,000 rpm, thanks to its grease lubrication.
Its sealed design protects against contaminants, extending service life in various environments.

The extra light preload of S7018 CDGA/HCP4A Bearing ensures precise performance in high-speed applications.
Its temperature range of -30°C to 110°C makes it suitable for diverse operating conditions.

Application

Key Fields for S7018 CDGA/HCP4A Bearing
S7018 CDGA/HCP4A Bearing is commonly used in high-speed machine tools, where its precision and ceramic balls reduce friction for smoother operation. The sealed design helps keep contaminants out, extending service life in demanding environments.

In robotics, S7018 CDGA/HCP4A Bearing provides reliable angular contact support for robotic arms, ensuring accurate movement. Its phenolic cage offers lightweight durability, ideal for repetitive motions.

For medical imaging devices, S7018 CDGA/HCP4A Bearing’s P4A tolerance class ensures minimal vibration, critical for clear scans. The grease lubrication maintains quiet performance, even during prolonged use.

In electric vehicle motors, S7018 CDGA/HCP4A Bearing handles high radial loads while maintaining efficiency. The extra light preload reduces energy loss, making it a smart choice for eco-friendly designs.

For aerospace applications, S7018 CDGA/HCP4A Bearing’s temperature stability suits both extreme cold and moderate heat. Its universal matching capability simplifies assembly in complex systems.
