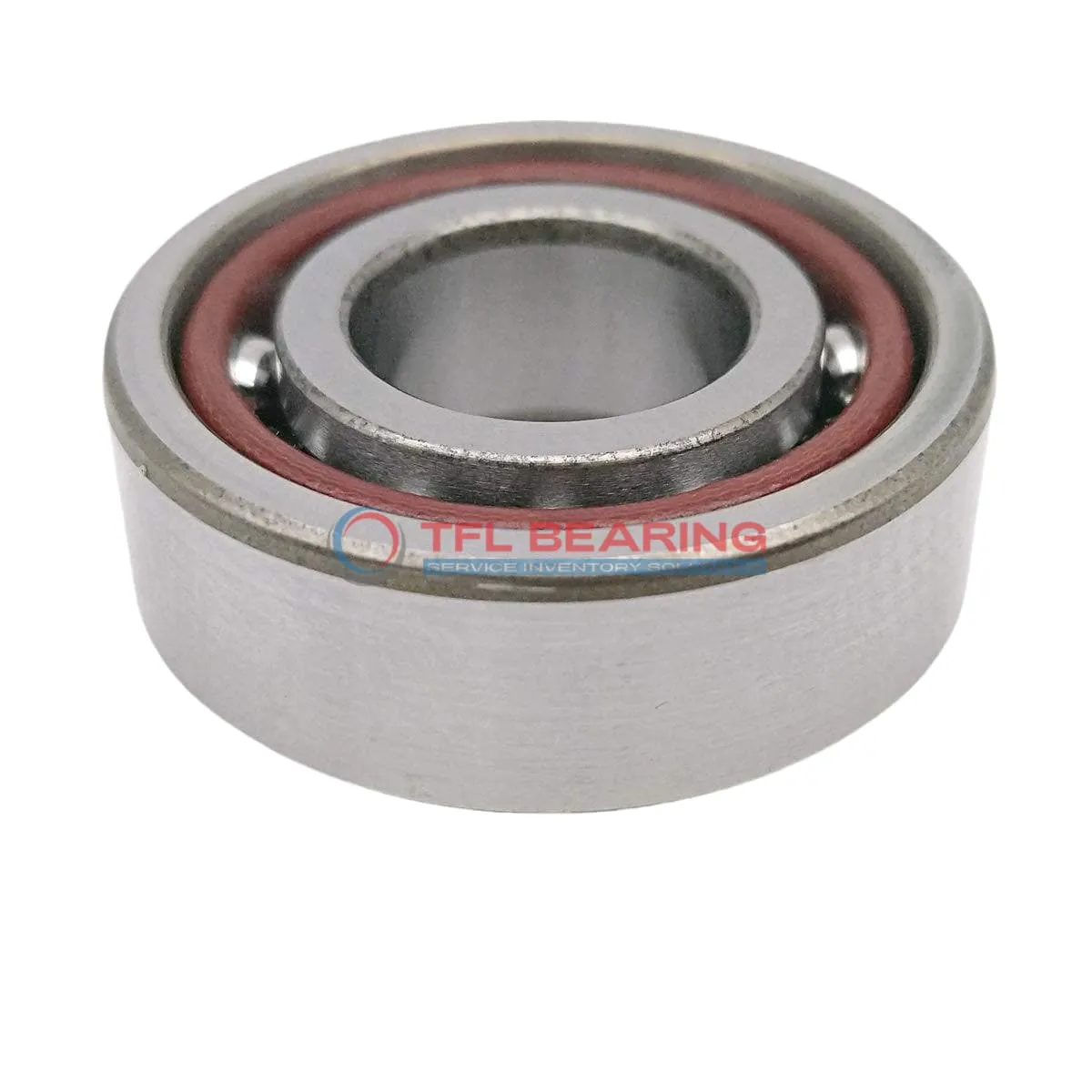

Super Precision Angular Contact Ball Bearings S7018 ACE/HCP4A

Brand: TFL Bearing Interchangeable: SKF S7018 ACE/HCP4A 90 mm × 140 mm × 24 mm Metric Sealed
Part number: S7018 ACE/HCP4A
Super Precision Angular Contact Ball Bearings S7018 ACE/HCP4A
In Stock
US$115.64 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia90 mm
Bore Dia Tolerance-0.008mm to 0
Outer Dia140 mm
Outer Dia Tolerance-0.009mm to 0
Width24 mm
Width Tolerance-0.2mm to 0
Ball Dia11.112 mm
Performance
PreloadAvailable
Dynamic Radial Load7,605 lbf
Static Radial Load6,750 lbf
Temperature Range-30° to 110 °C
Max Speed14,000 rpm
Characteristics
Ball Qty28
Contact Angle25°
Tolerance ClassP4 (ABEC-7)
System of MeasurementMetric
Seal TypeSealed
Matched ArrangementAvailable
For Load DirectionAngular Contact
LubricationLubricated
Weight1.16 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The S7018 ACE/HCP4A is a super precision angular contact ball bearing with a 90mm bore and 140mm outer diameter, crafted from durable chrome steel. Its compact 24mm width makes it suitable for tight spaces while handling radial loads up to 7605 lbf.

With a 25° contact angle and ceramic balls, it offers smooth operation at speeds up to 14,000 RPM. The sealed design keeps lubrication in place, and the phenolic cage ensures quiet, long-lasting performance.

This bearing comes preloaded and matched for precise alignment, ideal for high-accuracy applications. It works well in temperatures from -30°C to 110°C and meets P4 tolerance standards.

Perfect for machine tools or high-speed spindles where precision is key. Weighing 1.16kg, it’s robust yet manageable for its size, and interchangeable with SKF equivalents.

Features

How Is S7018 ACE/HCP4A Bearing Engineered for Reliability?

S7018 ACE/HCP4A Bearing features a 25° contact angle, optimised for handling combined radial and axial loads.
Its chrome steel rings and ceramic balls enhance durability while reducing friction for smoother operation.

The phenolic cage maintains ball alignment, ensuring consistent performance even at high speeds up to 14,000 rpm.
With a dynamic radial load capacity of 7605 lbf, it delivers reliable performance in precision applications.

Sealed design and preload availability further enhance S7018 ACE/HCP4A Bearing’s stability and longevity.
Its P4 tolerance class guarantees high precision, making it suitable for demanding industrial uses.

Application

Industrial Uses of S7018 ACE/HCP4A Bearing
S7018 ACE/HCP4A Bearing is commonly used in high-speed machine tools, where its precision and angular contact design ensure accurate performance. The ceramic balls reduce friction, making it ideal for demanding industrial environments.

What Makes S7018 ACE/HCP4A Bearing a Preferred Choice?
In automotive applications, S7018 ACE/HCP4A Bearing excels in gearboxes and electric motors due to its high-speed capabilities and reliable load handling. The phenolic cage adds durability, even under continuous use.

Perfect Fit for Automation: S7018 ACE/HCP4A Bearing
S7018 ACE/HCP4A Bearing is a great match for robotic arms and automated systems, thanks to its low friction and high precision. The sealed design keeps contaminants out, ensuring long-lasting performance.

Medical vs Industrial: Where S7018 ACE/HCP4A Bearing Excels
S7018 ACE/HCP4A Bearing is versatile, working well in medical imaging devices and industrial machinery alike. Its chrome steel rings and ceramic balls provide a balance of strength and smooth operation.
