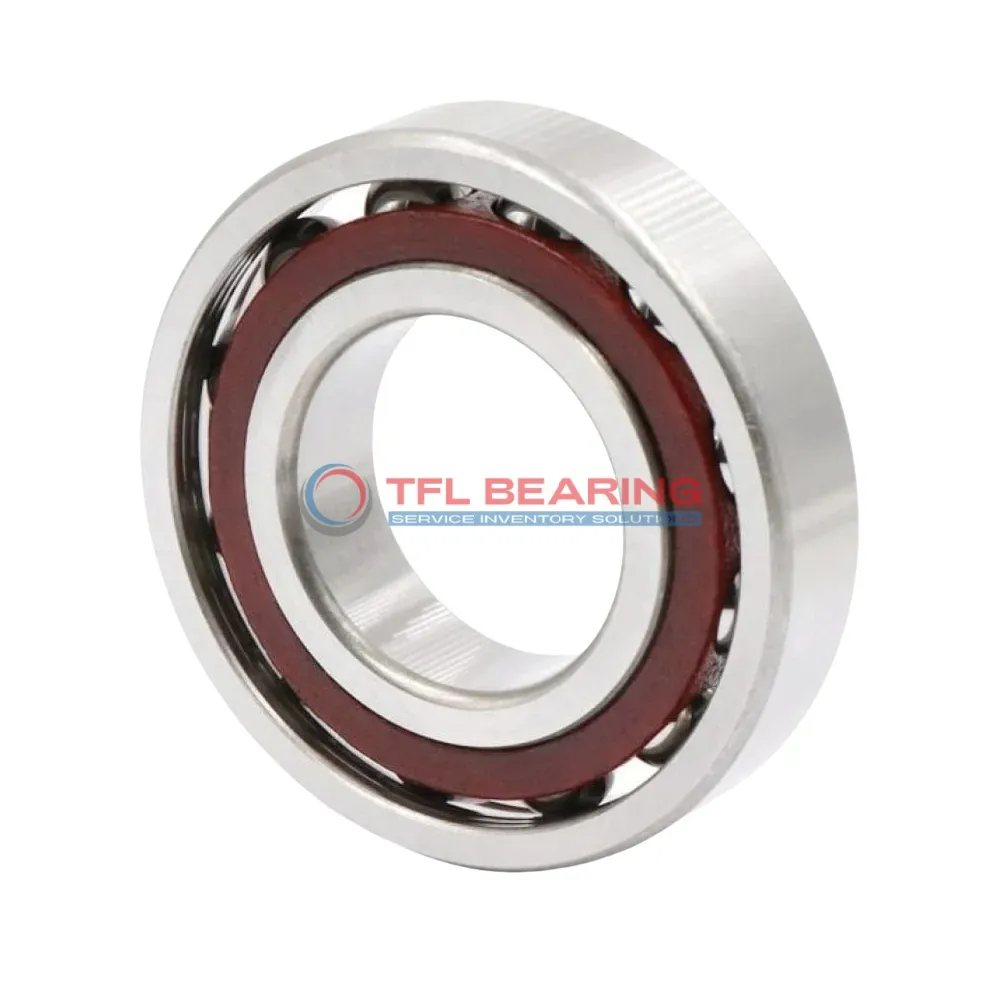

Super Precision Angular Contact Ball Bearings S7016 ACE/HCP4ADGA

Super Precision Angular Contact Ball Bearings S7016 ACE/HCP4ADGA

The S7016 ACE/HCP4ADGA is a super precision angular contact ball bearing with an 80mm bore and 125mm outer diameter, crafted from chrome steel for durability. It features a 25° contact angle and ceramic balls for smooth operation.

This bearing handles radial loads up to 11858 lbf and spins at speeds up to 28000 RPM, thanks to its phenolic cage and grease lubrication. Its sealed design keeps contaminants out while maintaining performance.

The universal matching allows flexible arrangements like back-to-back or face-to-face, ideal for high-precision applications. Weighing 1.63kg, it’s suitable for machine tools or spindles where accuracy is key.

With a temperature range of -30°C to 110°C and P4A tolerance class, it offers reliable performance in demanding conditions. Interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S7016 ACE/HCP4ADGA
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 80 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 125 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 44 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 11.112 mm
  • Ball Qty 25
  • Contact Angle 25°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Sealed
  • Matched Arrangement Universal matching
  • Number Of Bearings In Matched Set 2
  • Universal Matching Bearing Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
  • Preload Extra light / Class A
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Ceramic
  • Cage Material Phenolic
  • Dynamic Radial Load 11858 lbf
  • Static Radial Load 11925 lbf
  • Lubrication Grease
  • Temperature Range - 30°C to 110 °C
  • Max Speed 28000 rpm
  • Weight 1.63 kg
Super Precision Angular Contact Ball Bearings S7016 ACE/HCP4ADGA dimension drawing
Download DWG Download PDF

Features

Performance Features of S7016 ACE/HCP4ADGA Bearing

S7016 ACE/HCP4ADGA Bearing features a 25° contact angle, optimised for high-precision angular contact applications.
The ceramic balls and chrome steel rings ensure smooth operation with minimal friction.

With a dynamic radial load capacity of 11858 lbf, it handles demanding tasks efficiently.
The phenolic cage maintains ball alignment, enhancing durability and performance.

S7016 ACE/HCP4ADGA Bearing operates at speeds up to 28,000 rpm, suitable for high-speed machinery.
Its sealed design and grease lubrication reduce maintenance needs while protecting against contaminants.

The universal matching capability allows flexible arrangement in back-to-back, face-to-face, or tandem configurations.
This makes S7016 ACE/HCP4ADGA Bearing adaptable to various precision engineering requirements.

Application

Common Applications of S7016 ACE/HCP4ADGA Bearing
S7016 ACE/HCP4ADGA Bearing is widely used in high-speed machine tools, where its ceramic balls and phenolic cage reduce friction and heat buildup. The sealed design keeps contaminants out, ensuring long-lasting performance in demanding environments.

How Does S7016 ACE/HCP4ADGA Bearing Improve Performance?
In automotive applications like electric vehicle motors, S7016 ACE/HCP4ADGA Bearing handles angular contact loads with precision. Its universal matching feature allows flexible installation in back-to-back or face-to-face configurations.

Built for Heavy-Duty Use: S7016 ACE/HCP4ADGA Bearing
This bearing excels in industrial robots, providing smooth motion for robotic arms thanks to its P4A tolerance class. The extra light preload ensures minimal vibration during high-speed operations.

Medical vs Industrial: Where S7016 ACE/HCP4ADGA Bearing Excels
In medical imaging devices, S7016 ACE/HCP4ADGA Bearing offers quiet operation and reliability. For industrial uses like CNC spindles, its high dynamic load capacity supports heavy cutting tasks.

Perfect Fit for Automation: S7016 ACE/HCP4ADGA Bearing
S7016 ACE/HCP4ADGA Bearing is ideal for automated production lines, where its grease lubrication reduces maintenance needs. The 25° contact angle balances radial and axial loads effectively.
