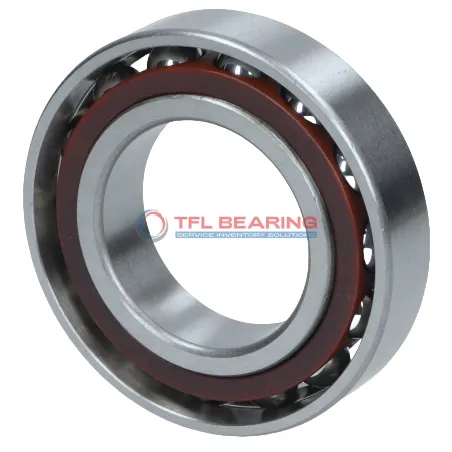

Super Precision Angular Contact Ball Bearings S7014 FEGA/HCP4A

Super Precision Angular Contact Ball Bearings S7014 FEGA/HCP4A

The S7014 FEGA/HCP4A is a super precision angular contact ball bearing with a 70mm bore and 110mm outer diameter, crafted from durable chrome steel. Its compact 20mm width makes it suitable for space-sensitive applications.

With a contact angle of 18°, it handles both radial and axial loads efficiently, supporting up to 5265 lbf dynamically. The ceramic balls and phenolic cage allow it to spin smoothly at speeds up to 22,000 RPM.

Sealed for protection, this bearing comes pre-greased and requires minimal maintenance. It operates reliably in temperatures from -30°C to 110°C, making it versatile for various environments.

Ideal for high-precision machinery like spindles or CNC tools, it’s interchangeable with SKF bearings. The lightweight design (0.59kg) and P4A tolerance ensure consistent performance in demanding setups.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S7014 FEGA/HCP4A
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 20 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 9.525 mm
  • Ball Qty 25
  • Contact Angle 18°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Sealed
  • Matched Arrangement No
  • Number Of Bearings In Matched Set 2
  • Universal Matching Bearing Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
  • Preload Extra light / Class A
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Ceramic
  • Cage Material Phenolic
  • Dynamic Radial Load 5265 lbf
  • Static Radial Load 4118 lbf
  • Lubrication Grease
  • Temperature Range - 30°C to 110 °C
  • Max Speed 22000 rpm
  • Weight 0.59 kg
Super Precision Angular Contact Ball Bearings S7014 FEGA/HCP4A dimension drawing
Download DWG Download PDF

Features

Performance Features of S7014 FEGA/HCP4A Bearing

S7014 FEGA/HCP4A Bearing is designed with a 18° contact angle, ideal for precision angular contact applications.
Its chrome steel rings and ceramic balls provide excellent durability and smooth operation.

The phenolic cage ensures stability at high speeds, supporting up to 22,000 rpm.
With a dynamic radial load capacity of 5265 lbf, it handles demanding tasks reliably.

S7014 FEGA/HCP4A Bearing operates efficiently in temperatures from -30°C to 110°C.
Its sealed design and grease lubrication reduce maintenance needs, ensuring long service life.

Application

Industrial Uses of S7014 FEGA/HCP4A Bearing
S7014 FEGA/HCP4A Bearing is commonly used in high-speed machine tools, where its precision and ceramic balls reduce friction for smoother operation. The sealed design helps keep contaminants out, extending service life in demanding workshop conditions.

What Makes S7014 FEGA/HCP4A Bearing a Preferred Choice?
With its 18° contact angle, S7014 FEGA/HCP4A Bearing excels in applications like spindle drives, offering stable performance under angular loads. The phenolic cage provides quiet operation, ideal for environments where noise reduction matters.

Perfect Fit for Automation: S7014 FEGA/HCP4A Bearing
In robotic arms, S7014 FEGA/HCP4A Bearing handles rapid directional changes thanks to its extra light preload and P4A tolerance class. The grease lubrication ensures consistent performance even during extended operation cycles.

Medical vs Industrial: Where S7014 FEGA/HCP4A Bearing Excels
While suitable for industrial grinders, S7014 FEGA/HCP4A Bearing also performs well in medical centrifuges due to its ceramic balls’ corrosion resistance. The metric dimensions make it compatible with various European equipment standards.
