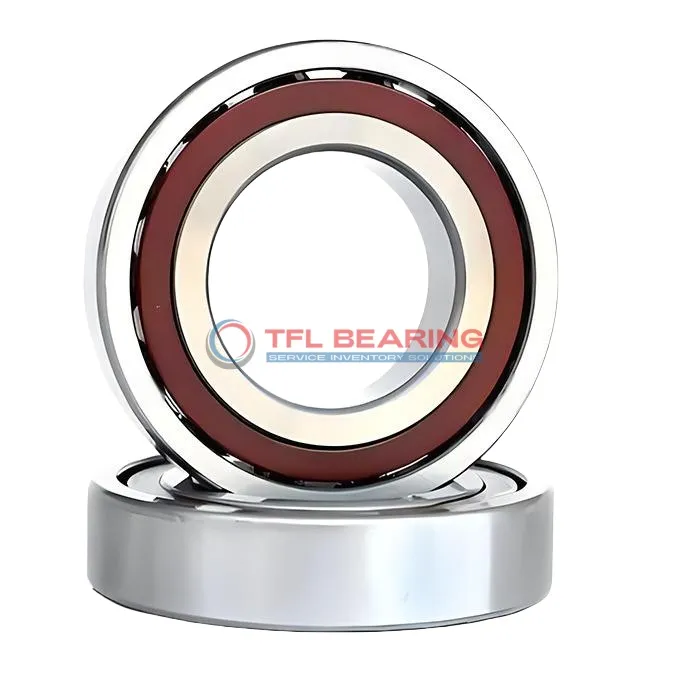

Super Precision Angular Contact Ball Bearings S7012 CD/HCP4ADGA

Super Precision Angular Contact Ball Bearings S7012 CD/HCP4ADGA

The S7012 CD/HCP4ADGA is a super precision angular contact ball bearing with a 60mm bore and 95mm outer diameter, crafted from durable chrome steel. Its 15° contact angle and ceramic balls ensure smooth operation under high speeds.

This sealed bearing handles radial loads up to 14918 lbf and spins at speeds up to 31000 RPM. The phenolic cage and grease lubrication make it low-maintenance and long-lasting.

Designed for universal matching, it can be arranged back-to-back, face-to-face, or tandem. Ideal for precision applications like machine tools or high-speed spindles.

Weighing 0.69kg, it operates in temperatures from -30°C to 110°C. Compliant with P4A tolerance class for exceptional accuracy.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S7012 CD/HCP4ADGA
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 95 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 36 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 11.112 mm
  • Ball Qty 19
  • Contact Angle 15°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Sealed
  • Matched Arrangement Universal matching
  • Number Of Bearings In Matched Set 2
  • Universal Matching Bearing Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
  • Preload Extra light / Class A
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Ceramic
  • Cage Material Phenolic
  • Dynamic Radial Load 14918 lbf
  • Static Radial Load 15638 lbf
  • Lubrication Grease
  • Temperature Range - 30°C to 110 °C
  • Max Speed 31000 rpm
  • Weight 0.69 kg
Super Precision Angular Contact Ball Bearings S7012 CD/HCP4ADGA dimension drawing
Download DWG Download PDF

Features

Performance Features of S7012 CD/HCP4ADGA Bearing

S7012 CD/HCP4ADGA Bearing is crafted with chrome steel rings and ceramic balls, offering high precision and durability.
Its 15° contact angle ensures optimal performance in angular contact applications.

The phenolic cage maintains ball alignment, reducing friction and enhancing speed capabilities.
With a maximum speed of 31,000 rpm, it excels in high-speed operations.

S7012 CD/HCP4ADGA Bearing’s sealed design protects against contaminants, extending its service life.
The extra light preload (Class A) ensures smooth operation with minimal resistance.

Universal matching allows flexible arrangement options, including back-to-back or face-to-face configurations.
Its dynamic radial load capacity of 14,918 lbf makes it reliable for demanding tasks.

The grease lubrication system ensures consistent performance across a temperature range of -30°C to 110°C.
This bearing is ideal for applications requiring precision and long-term reliability.

Application

Industrial Uses of S7012 CD/HCP4ADGA Bearing
S7012 CD/HCP4ADGA Bearing is commonly used in high-speed machine tools, where its precision angular contact design ensures accurate spindle rotation. The ceramic balls reduce friction, making it ideal for applications requiring smooth operation.

In robotics, S7012 CD/HCP4ADGA Bearing supports articulated arms, providing stability and durability in repetitive movements. The sealed design helps keep contaminants out, extending the bearing’s lifespan in demanding environments.

For aerospace applications, S7012 CD/HCP4ADGA Bearing’s lightweight phenolic cage and high-speed capability make it suitable for aircraft components. Its universal matching feature allows for flexible installation in various configurations.

Where Is S7012 CD/HCP4ADGA Bearing Used?
S7012 CD/HCP4ADGA Bearing is found in medical imaging devices, where its high precision and low noise are essential for clear diagnostics. The grease lubrication ensures quiet operation, critical in sensitive environments.

In automation systems, S7012 CD/HCP4ADGA Bearing enhances the performance of linear guides and conveyors. Its extra light preload reduces wear, making it a reliable choice for continuous operation.

Built for Heavy-Duty Use: S7012 CD/HCP4ADGA Bearing
S7012 CD/HCP4ADGA Bearing handles heavy radial loads in industrial pumps, thanks to its chrome steel rings and robust construction. The P4A tolerance class guarantees consistent performance under stress.

For electric motors, S7012 CD/HCP4ADGA Bearing’s 15° contact angle improves load distribution, reducing vibration. Its temperature range of -30°C to 110°C ensures reliability in varied operating conditions.

Automotive vs Aerospace: Applications of S7012 CD/HCP4ADGA Bearing
In automotive gearboxes, S7012 CD/HCP4ADGA Bearing provides smooth shifting with its high dynamic load capacity. The ceramic balls help withstand high RPMs without compromising performance.

For aerospace actuators, S7012 CD/HCP4ADGA Bearing’s lightweight design and precision make it a preferred choice. The universal matching feature simplifies installation in complex assemblies.
