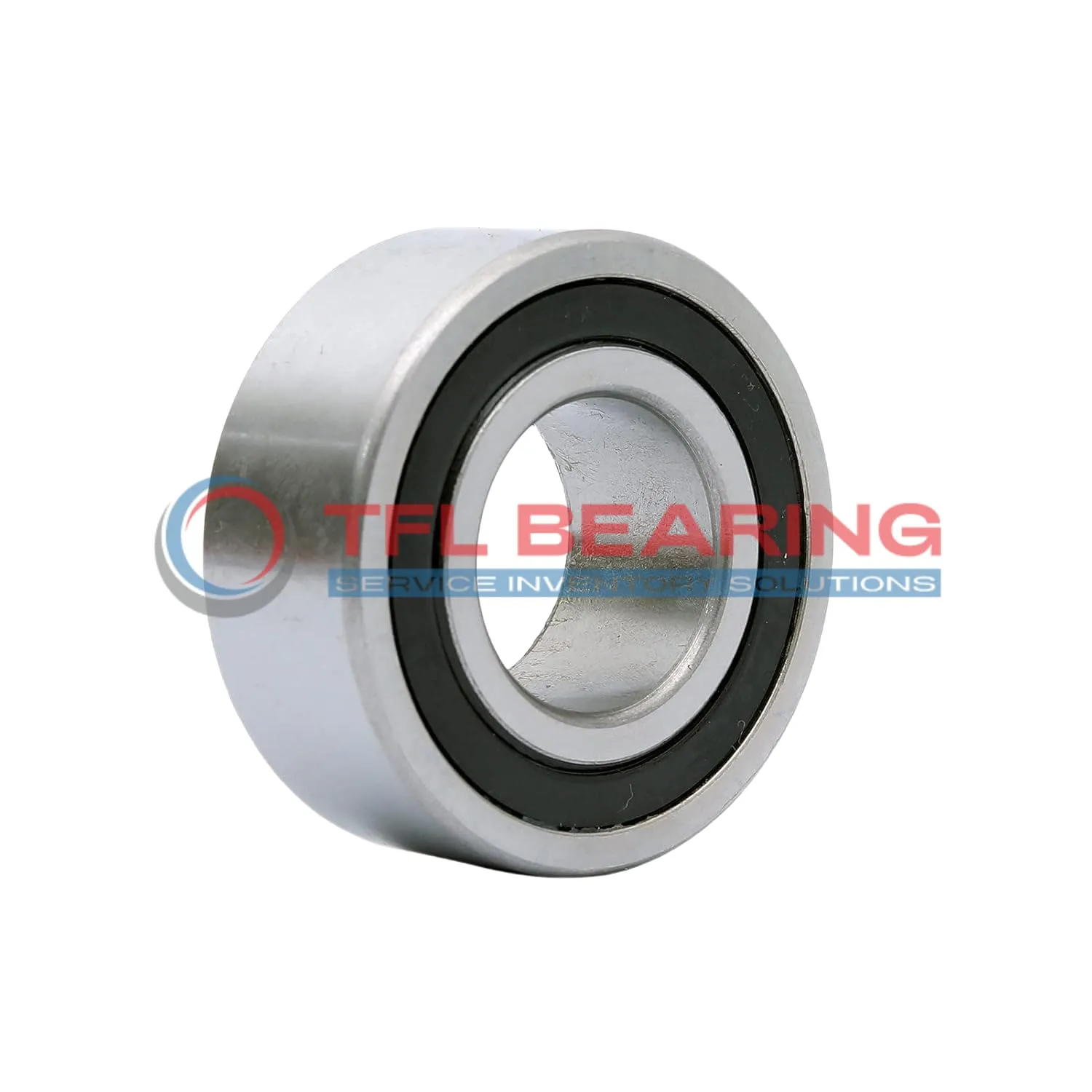

Super Precision Angular Contact Ball Bearings S7006 ACDGA/P4A

Super Precision Angular Contact Ball Bearings S7006 ACDGA/P4A

The S7006 ACDGA/P4A is a super precision angular contact ball bearing with a 30mm bore and 55mm outer diameter, crafted from high-quality chrome steel. It features a 25° contact angle and comes sealed for protection, with an extra light preload for smooth operation.

This bearing handles dynamic radial loads up to 3105 lbf and spins at speeds up to 71,500 RPM, making it suitable for high-performance applications. Its phenolic cage ensures durability while keeping the weight light at just 0.11kg.

Designed for angular contact loads, it works well in temperatures from -30°C to 110°C. The P4A tolerance class guarantees precision, and it’s interchangeable with SKF bearings for easy replacement.

Ideal for precision machinery like spindles or CNC equipment, where accuracy and speed are crucial. The bearing can be paired in back-to-back, face-to-face, or tandem arrangements for versatile use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S7006 ACDGA/P4A
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 55 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 13 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 7.938 mm
  • Ball Qty 14
  • Contact Angle 25°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Sealed
  • Matched Arrangement No
  • Number Of Bearings In Matched Set 2
  • Universal Matching Bearing Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
  • Preload Extra light / Class A
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 3105 lbf
  • Static Radial Load 1721 lbf
  • Lubrication Grease
  • Temperature Range - 30°C to 110 °C
  • Max Speed 71500 rpm
  • Weight 0.11 kg
Super Precision Angular Contact Ball Bearings S7006 ACDGA/P4A dimension drawing
Download DWG Download PDF

Features

Performance Features of S7006 ACDGA/P4A Bearing

S7006 ACDGA/P4A Bearing is designed with a 25° contact angle, providing excellent radial and axial load capacity.
Its chrome steel rings and balls ensure durability and smooth operation in high-speed applications.

The phenolic cage in S7006 ACDGA/P4A Bearing reduces friction and noise, making it ideal for precision tasks.
With a maximum speed of 71,500 rpm, it delivers reliable performance without compromising efficiency.

S7006 ACDGA/P4A Bearing operates in temperatures from -30°C to 110°C, suitable for various industrial environments.
Its sealed design keeps contaminants out, reducing maintenance needs and extending service life.

The extra light preload of S7006 ACDGA/P4A Bearing ensures minimal friction and optimal precision.
It can be arranged in back-to-back, face-to-face, or tandem configurations for versatile applications.

Application

Industrial Uses of S7006 ACDGA/P4A Bearing
S7006 ACDGA/P4A Bearing is commonly used in high-speed machine tools, where its precision and angular contact design ensure accurate performance. The sealed construction helps keep contaminants out, extending its lifespan in demanding environments.

What Makes S7006 ACDGA/P4A Bearing a Preferred Choice?
In automotive applications like electric motors, S7006 ACDGA/P4A Bearing handles both radial and axial loads efficiently. Its phenolic cage reduces friction, making it suitable for smooth, high-speed rotation.

Perfect Fit for Automation: S7006 ACDGA/P4A Bearing
S7006 ACDGA/P4A Bearing works well in robotic arms, providing stability and precision for repetitive movements. The grease lubrication ensures quiet operation, ideal for sensitive automation systems.

Medical vs Industrial: Where S7006 ACDGA/P4A Bearing Excels
S7006 ACDGA/P4A Bearing is reliable in medical imaging devices, offering consistent performance under light loads. In industrial settings, it supports spindle systems where precision and speed are key.
