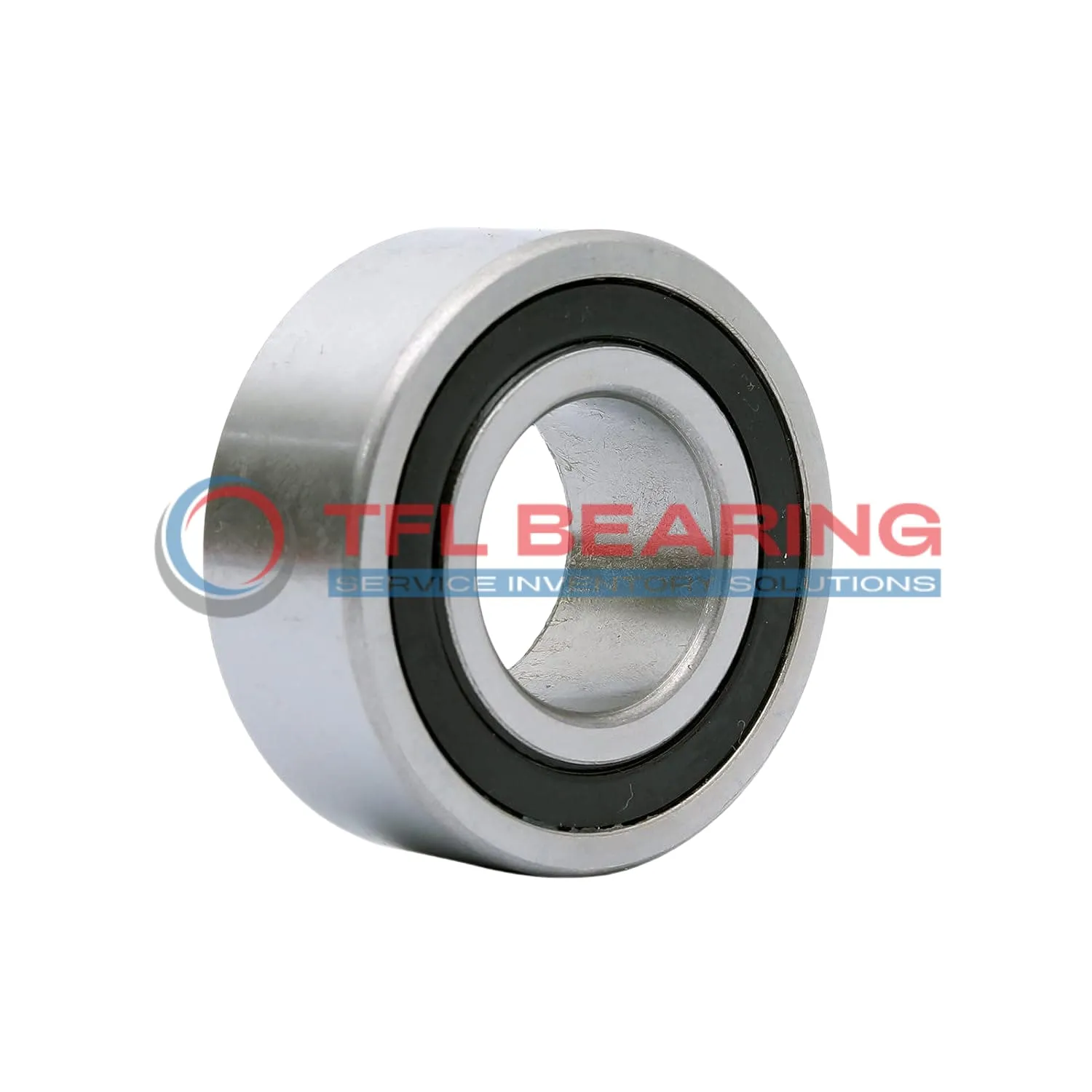

Super Precision Angular Contact Ball Bearings S7005 CE/P4ADGA

Brand: TFL Bearing Interchangeable: SKF S7005 CE/P4ADGA 25 mm × 47 mm × 24 mm Metric Sealed
Part number: S7005 CE/P4ADGA
Super Precision Angular Contact Ball Bearings S7005 CE/P4ADGA
In Stock
US$15.26 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia25 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia47 mm
Outer Dia Tolerance-0.004mm to 0
Width24 mm
Width Tolerance-0.2mm to 0
Ball Dia6.35 mm
Performance
PreloadExtra light / Class A
Dynamic Radial Load3,038 lbf
Static Radial Load1,868 lbf
Temperature Range- 30°C to 110 °C
Max Speed83,000 rpm
Characteristics
Ball Qty14
Contact Angle15°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeSealed
Matched ArrangementUniversal matching
Number Of Bearings In Matched Set2
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationGrease
Weight0.15 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The S7005 CE/P4ADGA is a super precision angular contact ball bearing measuring 25mm by 47mm by 24mm, crafted from durable chrome steel. It features a 15° contact angle and comes sealed for protection, with universal matching for flexible arrangement.

This bearing handles radial loads up to 3038 lbf and spins smoothly at speeds up to 83,000 RPM. Its extra-light preload ensures quiet operation, while the phenolic cage offers stability under stress.

The sealed design keeps grease in and contaminants out, making it low-maintenance. It works well in temperatures from -30°C to 110°C, suitable for demanding environments.

Ideal for high-precision applications like machine tools or spindle drives, this bearing comes in a matched set of two. It’s interchangeable with SKF models, offering reliable performance in back-to-back, face-to-face, or tandem configurations. Weighing just 0.15kg, it’s lightweight yet robust.

Features

Performance Features of S7005 CE/P4ADGA Bearing

S7005 CE/P4ADGA Bearing is designed with a 15° contact angle, ideal for handling combined radial and axial loads.
Its universal matching capability allows flexible arrangement in back-to-back, face-to-face, or tandem configurations.

The chrome steel rings and balls ensure durability, while the phenolic cage reduces friction and noise.
With a dynamic radial load capacity of 3038 lbf, it performs reliably under demanding conditions.

S7005 CE/P4ADGA Bearing operates smoothly at speeds up to 83,000 rpm, thanks to its precision P4A tolerance class.
The sealed design and grease lubrication minimise maintenance needs, extending service life.

Its compact size (25 mm×47 mm×24 mm) makes it suitable for space-constrained applications.
The extra light preload ensures smooth operation without excessive friction.

Application

Industrial Uses of S7005 CE/P4ADGA Bearing
S7005 CE/P4ADGA Bearing is commonly used in high-speed machine tools, where its precision and angular contact design ensure accurate spindle rotation. The sealed construction keeps contaminants out, extending service life in demanding workshop conditions.

How Does S7005 CE/P4ADGA Bearing Improve Performance?
In robotics, S7005 CE/P4ADGA Bearing enhances joint movement with its low friction and high-speed capability. The phenolic cage dampens vibrations, making it ideal for smooth, repetitive motions in automated systems.

Built for Heavy-Duty Use: S7005 CE/P4ADGA Bearing
This bearing excels in automotive transmissions, handling combined radial and thrust loads efficiently. Its universal matching feature allows flexible arrangement in compact spaces, saving design time for engineers.

Medical vs Industrial: Where S7005 CE/P4ADGA Bearing Excels
While S7005 CE/P4ADGA Bearing performs well in industrial pumps, its true strength lies in medical imaging devices. The P4A tolerance ensures minimal vibration, critical for clear diagnostic results in MRI machines.

Perfect Fit for Automation: S7005 CE/P4ADGA Bearing
S7005 CE/P4ADGA Bearing is a go-to choice for 3D printers, providing smooth linear motion in print heads. The grease lubrication reduces maintenance needs, perfect for continuous operation in production lines.
