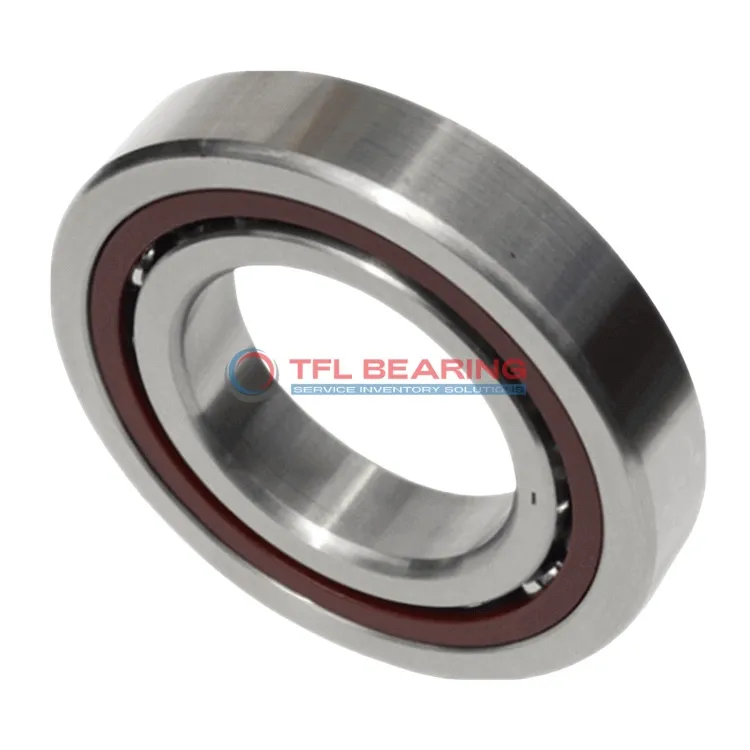

Super Precision Angular Contact Ball Bearings S7005 CE/HCP4ADT

Super Precision Angular Contact Ball Bearings S7005 CE/HCP4ADT

The S7005 CE/HCP4ADT is a super precision angular contact ball bearing with a 25mm bore and 47mm outer diameter, crafted from durable chrome steel and ceramic balls. It handles radial loads up to 3038 lbf and reaches speeds of 83,000 RPM, making it suitable for high-performance applications.

Its sealed design and grease lubrication ensure smooth operation with minimal maintenance. The phenolic cage adds durability while keeping the bearing lightweight at just 0.14kg.

This matched set of two bearings comes with a 15° contact angle and preload for stability. Ideal for precision machinery like spindles or CNC equipment where accuracy is key.

Operating in temperatures from -30°C to 110°C, it meets P4A tolerance standards for reliable performance. Interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S7005 CE/HCP4ADT
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 24 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 6.35 mm
  • Ball Qty 14
  • Contact Angle 15°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Sealed
  • Matched Arrangement 2 bearings << DT
  • Number Of Bearings In Matched Set 2
  • Universal Matching Bearing No
  • Preload Available
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Ceramic
  • Cage Material Phenolic
  • Dynamic Radial Load 3038 lbf
  • Static Radial Load 1868 lbf
  • Lubrication Grease
  • Temperature Range - 30°C to 110 °C
  • Max Speed 83000 rpm
  • Weight 0.14 kg
Super Precision Angular Contact Ball Bearings S7005 CE/HCP4ADT dimension drawing
Download DWG Download PDF

Features

Performance Features of S7005 CE/HCP4ADT Bearing

S7005 CE/HCP4ADT Bearing is designed with a 15° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and ceramic balls enhance durability while reducing friction.

The phenolic cage in S7005 CE/HCP4ADT Bearing ensures smooth operation at high speeds, up to 83,000 rpm.
Preloaded and matched as a set of two bearings, it offers consistent performance in precision tasks.

S7005 CE/HCP4ADT Bearing operates efficiently within a temperature range of -30°C to 110°C.
Its sealed design and grease lubrication minimise maintenance needs, ensuring long service life.

Application

Key Fields for S7005 CE/HCP4ADT Bearing
S7005 CE/HCP4ADT Bearing is widely used in high-precision machine tools, where its 15° contact angle ensures accurate radial and axial load handling. The ceramic balls reduce friction, making it ideal for high-speed spindle applications.

In robotics, S7005 CE/HCP4ADT Bearing provides smooth motion control in articulated arms and joints. Its matched arrangement and preload options enhance stability in dynamic movements.

For aerospace components, S7005 CE/HCP4ADT Bearing’s phenolic cage and sealed design offer reliability in demanding conditions. The P4A tolerance class ensures consistent performance in critical systems.

Automotive testing equipment benefits from S7005 CE/HCP4ADT Bearing’s grease lubrication and temperature resilience. Its compact size fits seamlessly into sensor mounts and calibration devices.
