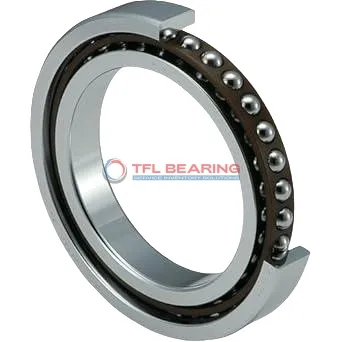

Super Precision Angular Contact Ball Bearings S7002 ACEGA/HCP4A

Brand: TFL Bearing Interchangeable: SKF S7002 ACEGA/HCP4A 15 mm × 32 mm × 9 mm Metric Sealed
Part number: S7002 ACEGA/HCP4A
Super Precision Angular Contact Ball Bearings S7002 ACEGA/HCP4A
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia15 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia32 mm
Outer Dia Tolerance-0.004mm to 0
Width9 mm
Width Tolerance-0.2mm to 0
Ball Dia4.762 mm
Performance
PreloadExtra light / Class A
Dynamic Radial Load952 lbf
Static Radial Load412 lbf
Temperature Range- 30°C to 110 °C
Max Speed95,000 rpm
Characteristics
Ball Qty12
Contact Angle25°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeSealed
Matched ArrangementNo
Number Of Bearings In Matched Set3
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationGrease
Weight0.026 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The S7002 ACEGA/HCP4A is a super precision angular contact ball bearing with a compact size of 15mm by 32mm by 9mm. Made from chrome steel and ceramic balls, it offers smooth operation and durability.

With a 25° contact angle, it handles both radial and thrust loads efficiently, up to 952 lbf dynamically. Its sealed design keeps grease in and contaminants out, ideal for high-speed applications up to 95,000 RPM.

The phenolic cage ensures quiet performance, while the P4A tolerance class guarantees precision. It works in temperatures from -30°C to 110°C, suitable for demanding environments.

This bearing is interchangeable with SKF models and can be used in matched sets for back-to-back, face-to-face, or tandem arrangements. Perfect for precision machinery like spindles or medical equipment.

Weighing just 0.026kg, it’s lightweight yet robust for its size. The ceramic balls reduce friction, enhancing speed and longevity.

Features

Performance Features of S7002 ACEGA/HCP4A Bearing

S7002 ACEGA/HCP4A Bearing features a 25° contact angle, optimised for precision angular contact applications.
Its chrome steel rings and ceramic balls reduce friction, enhancing performance in high-speed operations.

With a dynamic radial load capacity of 952 lbf, it handles demanding tasks reliably.
The phenolic cage ensures smooth operation, even at speeds up to 95,000 rpm.

S7002 ACEGA/HCP4A Bearing operates efficiently within a temperature range of -30°C to 110°C.
Its sealed design and grease lubrication minimise maintenance needs, ensuring long-term reliability.

Application

Super Precision Angular Contact Ball Bearings S7002 ACEGA/HCP4A is commonly used in high-speed machine tools, where its ceramic balls and phenolic cage reduce friction and heat buildup.
The sealed design keeps contaminants out, making it suitable for environments where cleanliness is a priority, such as in medical imaging equipment.

In robotics, S7002 ACEGA/HCP4A provides smooth and precise movement for articulated arms, thanks to its extra light preload and P4A tolerance class.
Its compact size and high-speed capability make it a reliable choice for automated assembly lines.

For aerospace applications, S7002 ACEGA/HCP4A handles both radial and axial loads efficiently, ensuring stability in critical components.
The chrome steel rings and ceramic balls offer durability under varying temperature conditions.

In consumer electronics like high-end printers, S7002 ACEGA/HCP4A ensures quiet and precise paper handling.
The grease lubrication and sealed design contribute to its long service life with minimal maintenance.
