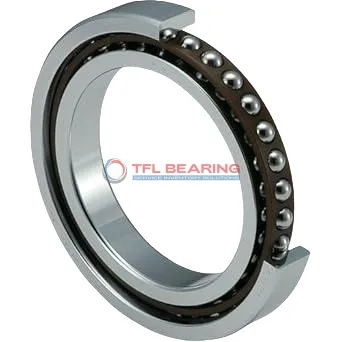

Super Precision Angular Contact Ball Bearings S7002 ACD/HCP4A

Brand: TFL Bearing Interchangeable: SKF S7002 ACD/HCP4A 15 mm × 32 mm × 9 mm Metric Sealed
Part number: S7002 ACD/HCP4A
Super Precision Angular Contact Ball Bearings S7002 ACD/HCP4A
In Stock
US$83.37 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia15 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia32 mm
Outer Dia Tolerance-0.006mm to 0
Width9 mm
Width Tolerance-0.2mm to 0
Ball Dia4.762 mm
Performance
PreloadAvailable
Dynamic Radial Load1,112 lbf
Static Radial Load522 lbf
Temperature Range-30° to 110 °C
Max Speed60,000 rpm
Characteristics
Ball Qty12
Contact Angle25°
Tolerance ClassP4 (ABEC-7)
System of MeasurementMetric
Seal TypeSealed
Matched ArrangementAvailable
For Load DirectionAngular Contact
LubricationLubricated
Weight0.027 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The S7002 ACD/HCP4A is a super precision angular contact ball bearing with a compact size of 15mm by 32mm by 9mm. Made from chrome steel and ceramic balls, it offers smooth operation and durability.

With a 25° contact angle and sealed design, it handles both radial and axial loads efficiently. It supports speeds up to 60,000 RPM and works in temperatures from -30°C to 110°C.

The phenolic cage reduces friction, while the P4 tolerance class ensures high precision. Preload options and matched arrangements are available for tailored performance.

Ideal for high-speed applications like machine tool spindles or precision instruments. Its lightweight design (0.027kg) makes it easy to integrate into compact systems.

Features

Why Choose S7002 ACD/HCP4A Bearing for Precision Tasks?

S7002 ACD/HCP4A Bearing features a 25° contact angle, ideal for handling combined radial and axial loads with high precision.
Its ceramic balls and chrome steel rings ensure smooth operation, even at speeds up to 60,000 rpm.

The phenolic cage reduces friction and wear, enhancing the bearing’s longevity.
With a P4 tolerance class, S7002 ACD/HCP4A Bearing delivers consistent performance in demanding applications.

Sealed design protects against contaminants, making it suitable for clean or harsh environments.
Preload availability allows for fine-tuning, ensuring optimal performance in precision machinery.

Application

Common Applications of S7002 ACD/HCP4A Bearing
S7002 ACD/HCP4A Bearing is widely used in high-speed machine tools, where its precision and angular contact design ensure smooth operation. The ceramic balls reduce friction, making it ideal for applications requiring minimal heat generation.

In robotics, S7002 ACD/HCP4A Bearing supports articulated arms, providing stability and accuracy in repetitive movements. Its sealed design also helps keep contaminants out, extending service life in demanding environments.

For dental drills and other medical devices, S7002 ACD/HCP4A Bearing’s phenolic cage offers quiet performance and resistance to sterilisation chemicals. The P4 tolerance class ensures reliable operation in critical healthcare settings.

Automotive enthusiasts appreciate S7002 ACD/HCP4A Bearing in performance gearboxes, where its high-speed capability enhances shifting precision. The matched arrangement option further improves load distribution for demanding driving conditions.
