Super Precision Angular Contact Ball Bearings 7224 ACD/P4ADGA

Super Precision Angular Contact Ball Bearings 7224 ACD/P4ADGA

The 7224 ACD/P4ADGA is a super precision angular contact ball bearing with a 120mm bore and 215mm outer diameter, crafted from high-quality chrome steel. It handles radial loads up to 69075 lbf and operates smoothly at speeds up to 10000 RPM.

Its 25° contact angle and universal matching design allow flexible arrangements like back-to-back or face-to-face, ideal for complex setups. The phenolic cage ensures durability while keeping the bearing lightweight.

This bearing is lubricated for easy maintenance and works in temperatures from -30°C to 110°C. It’s interchangeable with SKF bearings, making replacements straightforward.

Perfect for high-precision machinery like CNC spindles or industrial pumps, where accuracy and reliability are key. Weighing 10.8kg, it’s robust yet manageable for its size. Comes as a matched set of two for balanced performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7224 ACD/P4ADGA
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 120 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 215 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 80 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 30.162 mm
  • Ball Qty 15
  • Contact Angle 25°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement Universal matching
  • Number Of Bearings In Matched Set 2
  • Universal Matching Bearing Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
  • Preload Extra light / Class A
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 69075 lbf
  • Static Radial Load 82125 lbf
  • Lubrication Lubricated
  • Temperature Range - 30°C to 110 °C
  • Max Speed 10000 rpm
  • Weight 10.8 kg
  • Price（$） 1586.439

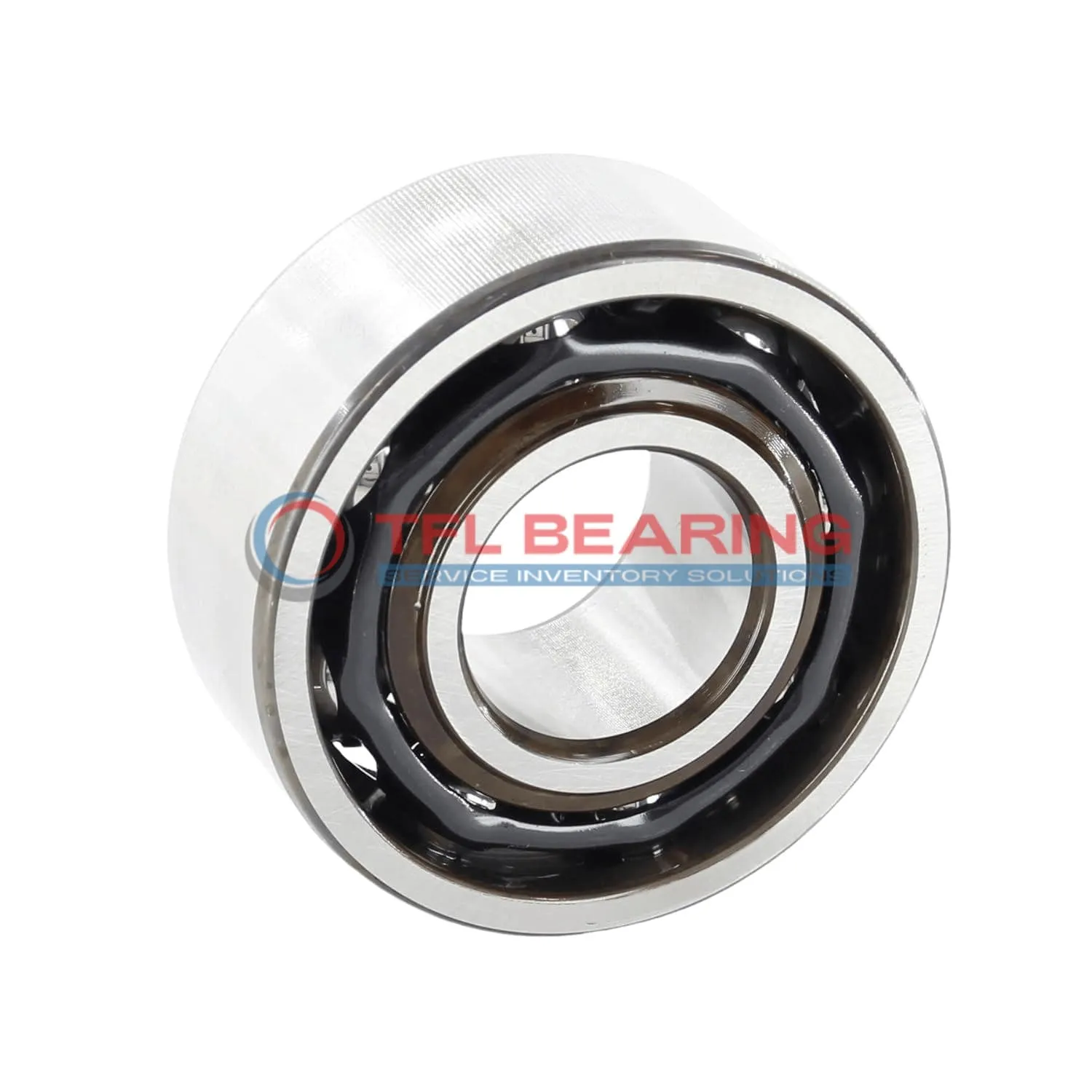

Super Precision Angular Contact Ball Bearings 7224 ACD/P4ADGA dimension drawing
Download DWG Download PDF
