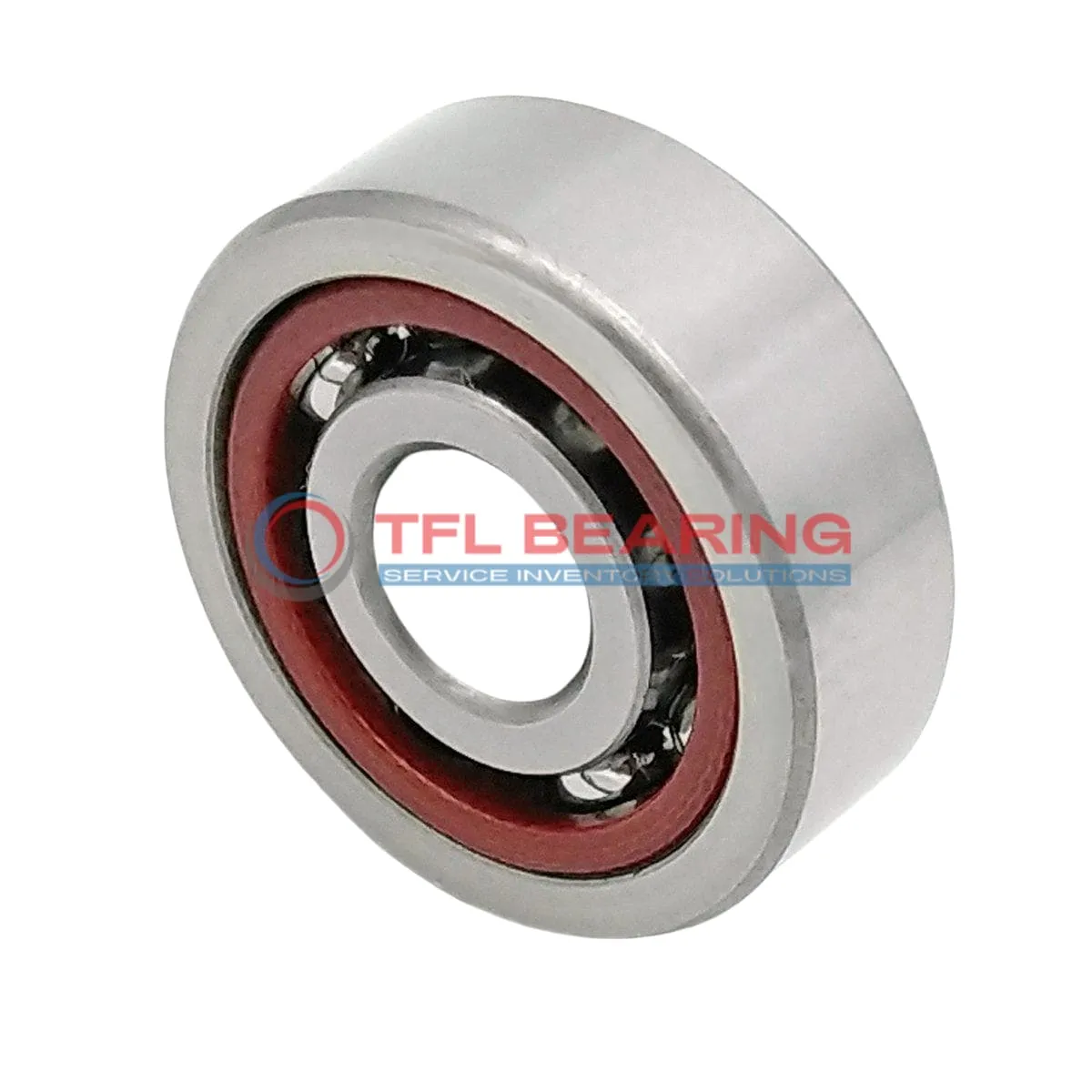

Super Precision Angular Contact Ball Bearings 7206 CD/P4ADBA

Super Precision Angular Contact Ball Bearings 7206 CD/P4ADBA

The 7206 CD/P4ADBA is a super precision angular contact ball bearing, measuring 30mm by 62mm by 32mm, crafted from durable chrome steel. It handles radial loads up to 8932 lbf and spins smoothly at speeds up to 71,500 RPM.

Its 15° contact angle and matched pair design (DB arrangement) provide excellent stability for angular loads. The phenolic cage ensures quiet operation and long service life.

Preloaded for extra light performance, it’s ideal for high-precision applications like machine tool spindles or robotics. The open design allows easy relubrication.

With a temperature range of -30°C to 110°C and P4A tolerance class, it’s built for accuracy. Weighing 0.39kg, it’s a reliable choice for demanding setups. Interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7206 CD/P4ADBA
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 32 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 9.525 mm
  • Ball Qty 13
  • Contact Angle 15°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement 2 bearings <> DB
  • Number Of Bearings In Matched Set 2
  • Universal Matching Bearing No
  • Preload Extra light / Class A
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 8932 lbf
  • Static Radial Load 7200 lbf
  • Lubrication Lubricated
  • Temperature Range - 30°C to 110 °C
  • Max Speed 71500 rpm
  • Weight 0.39 kg
Super Precision Angular Contact Ball Bearings 7206 CD/P4ADBA dimension drawing
Download DWG Download PDF

Features

Performance Features of 7206 CD/P4ADBA Bearing

7206 CD/P4ADBA Bearing is designed with a 15° contact angle, optimised for handling combined radial and axial loads.
Its chrome steel rings and balls ensure durability, while the phenolic cage reduces friction and noise.

The bearing’s extra light preload (Class A) enhances precision, making it suitable for high-speed applications.
With a dynamic radial load capacity of 8932 lbf, it delivers reliable performance under demanding conditions.

7206 CD/P4ADBA Bearing operates smoothly at speeds up to 71,500 rpm, balancing efficiency and longevity.
Its open design allows for easy lubrication, maintaining optimal performance over time.

Application

Industrial Uses of 7206 CD/P4ADBA Bearing
7206 CD/P4ADBA Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The matched arrangement of two bearings provides stability under heavy radial and axial loads.

In automotive applications, 7206 CD/P4ADBA Bearing supports gearbox systems, offering smooth performance at high speeds. Its phenolic cage reduces friction, making it suitable for demanding driving conditions.

For robotics, 7206 CD/P4ADBA Bearing is ideal for articulated arms, thanks to its extra light preload and precise tolerances. The open design allows for easy lubrication, extending service life in continuous operation.

Medical imaging devices benefit from 7206 CD/P4ADBA Bearing’s low noise and vibration characteristics. The chrome steel construction ensures reliability in critical diagnostic equipment.

In consumer electronics, 7206 CD/P4ADBA Bearing can be found in high-end printers, where its precision enhances print quality. The temperature range also makes it adaptable to various operating environments.
