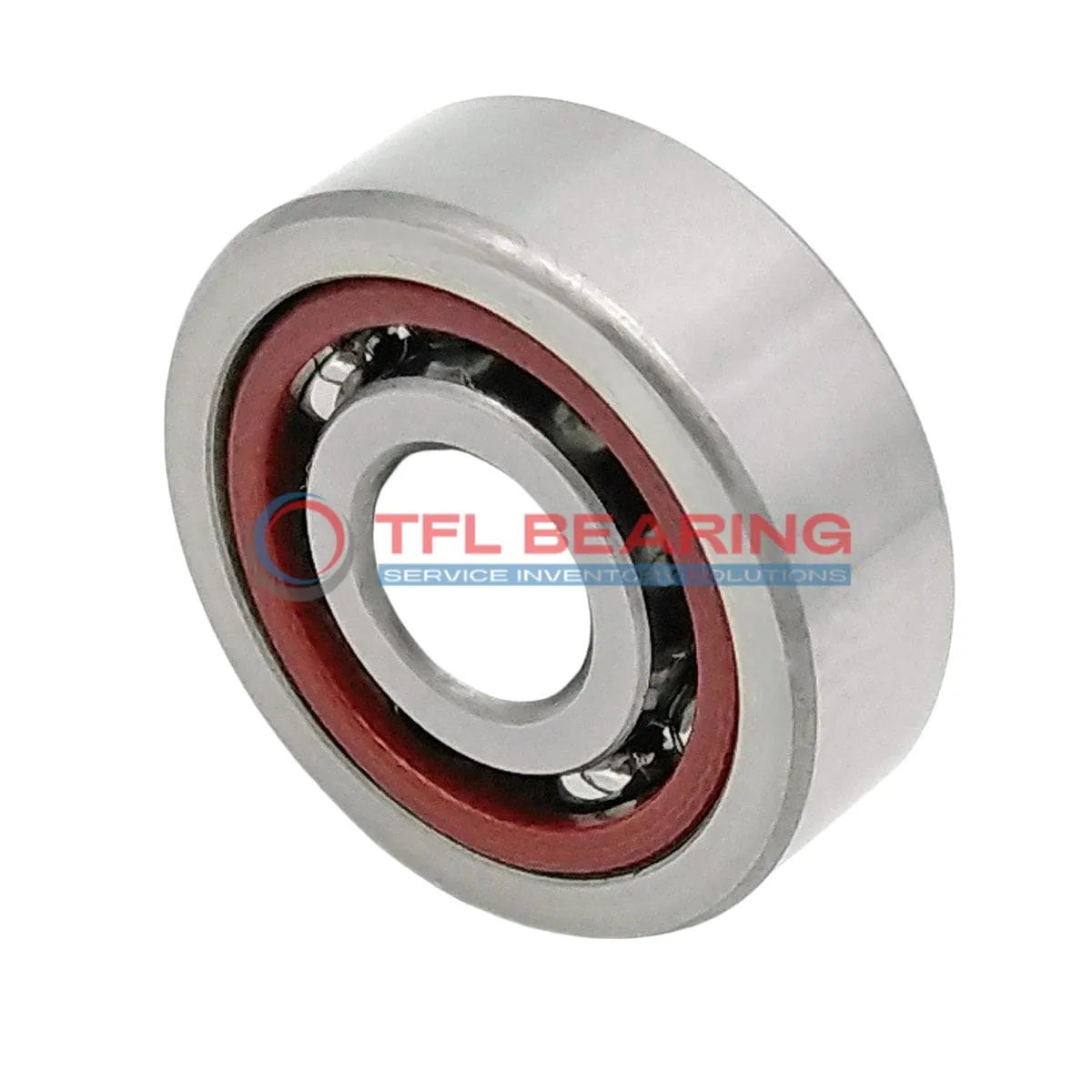

Super Precision Angular Contact Ball Bearings 7206 ACDGC/P4A

Brand: TFL Bearing Interchangeable: SKF 7206 ACDGC/P4A 30 mm × 62 mm × 16 mm Metric Open
Part number: 7206 ACDGC/P4A
Super Precision Angular Contact Ball Bearings 7206 ACDGC/P4A
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia30 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia62 mm
Outer Dia Tolerance-0.004mm to 0
Width16 mm
Width Tolerance-0.2mm to 0
Ball Dia9.525 mm
Performance
PreloadModerate / Class C
Dynamic Radial Load5,265 lbf
Static Radial Load3,442 lbf
Temperature Range- 30°C to 110 °C
Max Speed100,500 rpm
Characteristics
Ball Qty13
Contact Angle25°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementNo
Number Of Bearings In Matched Set3
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationLubricated
Weight0.2 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 7206 ACDGC/P4A is a super precision angular contact ball bearing with a 30mm bore and 62mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 5265 lbf and operates smoothly at speeds up to 100,500 RPM.

With a 25° contact angle and moderate preload, it offers excellent stability for angular contact applications. The phenolic cage ensures quiet operation and long service life.

This bearing is suitable for high-precision machinery like spindles or CNC equipment, where accuracy is key. It works in temperatures from -30°C to 110°C and comes pre-lubricated for easy installation.

Weighing just 0.2kg, it’s lightweight yet robust. Compliant with P4A tolerance standards, it’s interchangeable with SKF bearings for hassle-free replacements.

Features

Performance Features of 7206 ACDGC/P4A Bearing

7206 ACDGC/P4A Bearing is designed with a 25° contact angle, offering excellent radial and axial load capacity.
Its chrome steel rings and balls ensure durability, while the phenolic cage provides smooth operation at high speeds.

With a dynamic radial load of 5265 lbf, it handles demanding applications with ease.
The P4A tolerance class guarantees precision, making it suitable for high-accuracy machinery.

7206 ACDGC/P4A Bearing operates efficiently at speeds up to 100,500 rpm.
Its moderate preload (Class C) ensures stable performance in various configurations, including back-to-back and face-to-face arrangements.

The open design allows for easy lubrication, extending the bearing’s service life.
Its universal matching capability makes it versatile for different industrial needs.

Application

Industrial Uses of 7206 ACDGC/P4A Bearing
7206 ACDGC/P4A Bearing is commonly used in machine tools, where its high precision and moderate preload ensure accurate spindle rotation. The open design and phenolic cage make it suitable for high-speed operations in industrial settings.

In automotive applications, 7206 ACDGC/P4A Bearing supports components like wheel hubs and transmissions, thanks to its angular contact design. The chrome steel construction provides durability under varying load conditions.

For automation systems, 7206 ACDGC/P4A Bearing is ideal for robotic arms and CNC machines, where consistent performance is key. Its P4A tolerance class ensures minimal vibration and noise during operation.

Medical imaging devices benefit from 7206 ACDGC/P4A Bearing’s precision and reliability. The lubricated design and temperature range make it a dependable choice for sensitive equipment.

In consumer electronics, 7206 ACDGC/P4A Bearing can be found in high-performance fans and printers. Its lightweight design and smooth operation enhance the longevity of these devices.
