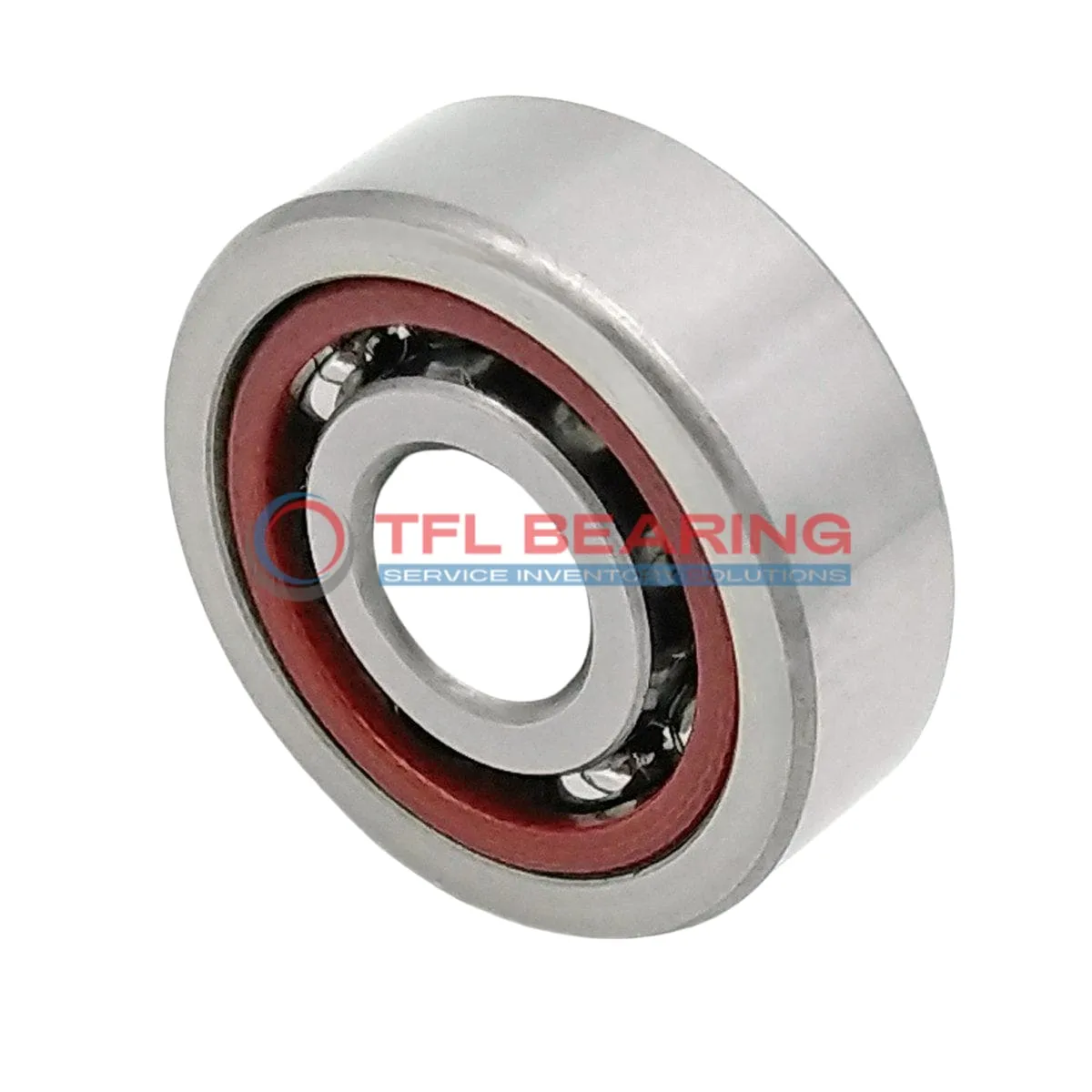

Super Precision Angular Contact Ball Bearings 7206 ACDGA/P4A

Brand: TFL Bearing Interchangeable: SKF 7206 ACDGA/P4A 30 mm × 62 mm × 16 mm Metric Open
Part number: 7206 ACDGA/P4A
Super Precision Angular Contact Ball Bearings 7206 ACDGA/P4A
In Stock
US$52.37 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia30 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia62 mm
Outer Dia Tolerance-0.004mm to 0
Width16 mm
Width Tolerance-0.2mm to 0
Ball Dia9.525 mm
Performance
PreloadExtra light / Class A
Dynamic Radial Load5,265 lbf
Static Radial Load3,442 lbf
Temperature Range- 30°C to 110 °C
Max Speed100,500 rpm
Characteristics
Ball Qty13
Contact Angle25°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementNo
Number Of Bearings In Matched Set3
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationLubricated
Weight0.2 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 7206 ACDGA/P4A is a super precision angular contact ball bearing with a 30mm bore and 62mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 5265 lbf and spins smoothly at speeds up to 100,500 RPM.

Its 25° contact angle and extra light preload ensure precise performance, while the phenolic cage reduces friction. The bearing operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings and comes lubricated for immediate use. Ideal for high-speed applications like machine tool spindles or precision instruments.

Weighing just 0.2kg, it’s lightweight yet robust. The P4A tolerance class guarantees exceptional accuracy for demanding tasks.

Features

Performance Features of 7206 ACDGA/P4A Bearing

7206 ACDGA/P4A Bearing is crafted with chrome steel rings and balls, ensuring durability and precision.
The 25° contact angle allows it to handle both radial and axial loads efficiently.

With a dynamic radial load capacity of 5265 lbf, it performs reliably in high-stress applications.
The phenolic cage maintains ball alignment, reducing friction and enhancing longevity.

7206 ACDGA/P4A Bearing operates smoothly at speeds up to 100,500 rpm, making it suitable for high-speed machinery.
Its extra light preload ensures minimal resistance, improving overall efficiency.

The open design and lubricated construction simplify maintenance while ensuring consistent performance.
It functions well within a temperature range of -30°C to 110°C, adapting to various working conditions.

7206 ACDGA/P4A Bearing’s P4A tolerance class guarantees high precision, ideal for demanding applications.
Its universal matching capability allows flexible arrangement options like back-to-back or face-to-face setups.

Application

Common Applications of 7206 ACDGA/P4A Bearing
7206 ACDGA/P4A Bearing is widely used in machine tools, where its high precision and angular contact design ensure accurate spindle rotation. The extra light preload makes it suitable for applications requiring minimal friction and smooth operation.

In automotive systems, 7206 ACDGA/P4A Bearing supports high-speed components like turbochargers and electric motors. Its phenolic cage and chrome steel construction provide durability and resistance to heat and wear.

For robotics, 7206 ACDGA/P4A Bearing is ideal for articulated arms and joints, thanks to its ability to handle combined radial and axial loads. The P4A tolerance class ensures consistent performance in demanding automation tasks.

In medical imaging devices, 7206 ACDGA/P4A Bearing offers reliable performance due to its precision and low noise operation. The open design allows for easy lubrication, extending its service life in critical applications.

For consumer electronics like high-end printers, 7206 ACDGA/P4A Bearing ensures smooth paper feed mechanisms. Its lightweight design and high-speed capability make it a practical choice for compact, high-performance devices.
