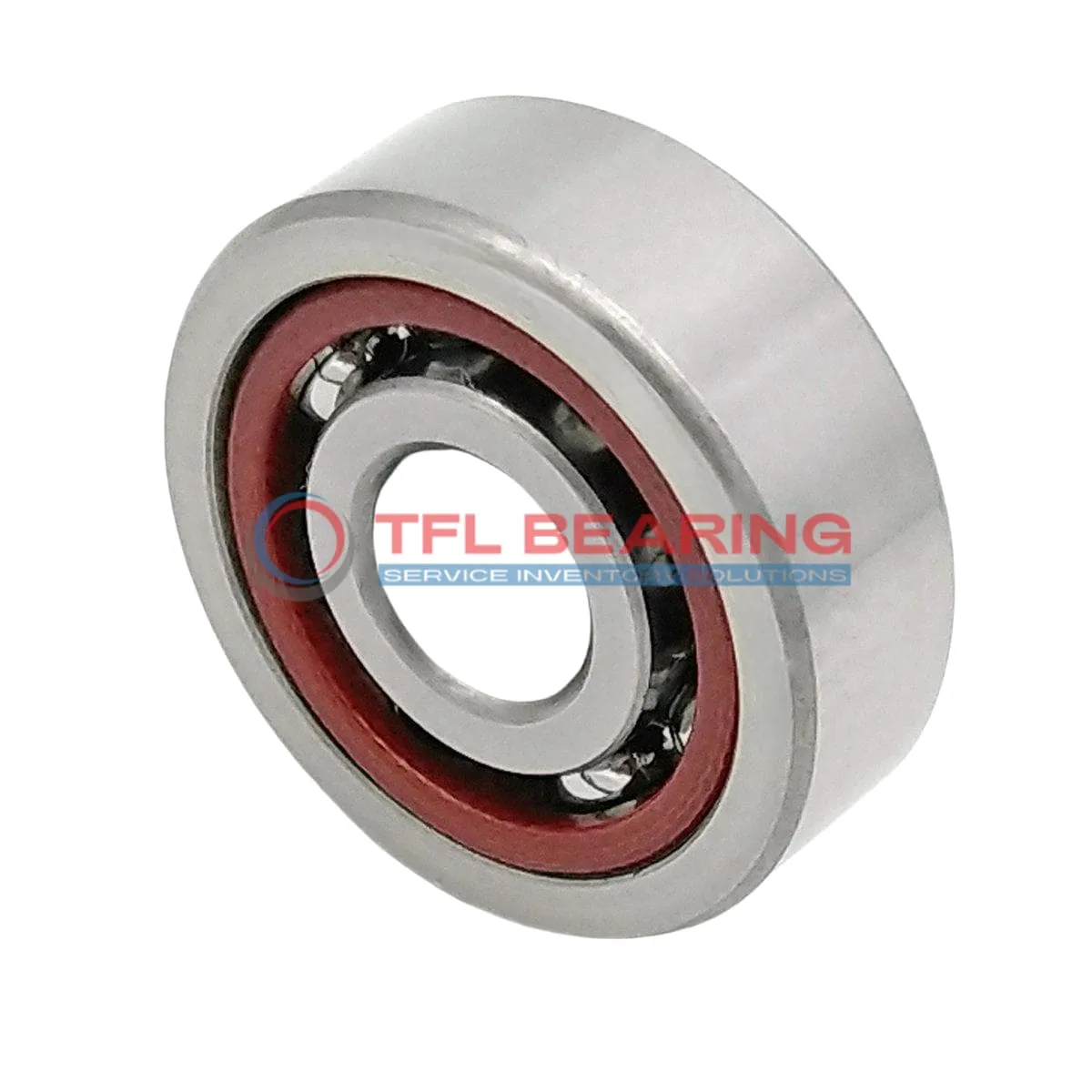

Super Precision Angular Contact Ball Bearings 7206 ACD/P4ATBTA

Brand: TFL Bearing Interchangeable: SKF 7206 ACD/P4ATBTA 30 mm × 62 mm × 48 mm Metric Open
Part number: 7206 ACD/P4ATBTA
Super Precision Angular Contact Ball Bearings 7206 ACD/P4ATBTA
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia30 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia62 mm
Outer Dia Tolerance-0.004mm to 0
Width48 mm
Width Tolerance-0.2mm to 0
Ball Dia9.525 mm
Performance
PreloadExtra light / Class A
Dynamic Radial Load11,408 lbf
Static Radial Load10,238 lbf
Temperature Range- 30°C to 110 °C
Max Speed100,500 rpm
Characteristics
Ball Qty13
Contact Angle25°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched Arrangement3 bearings <>> TBT
Number Of Bearings In Matched Set3
Universal Matching BearingNo
For Load DirectionAngular Contact
LubricationLubricated
Weight0.59 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 7206 ACD/P4ATBTA is a super precision angular contact ball bearing with a 30mm bore and 62mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 11408 lbf and spins smoothly at speeds up to 100,500 RPM.

Its 25° contact angle and matched set of three bearings (arranged > TBT) provide excellent stability for high-precision applications. The phenolic cage ensures quiet operation and long service life.

Designed for extra light preload (Class A), this bearing is ideal for machine tools or spindles requiring tight tolerances. It operates reliably in temperatures from -30°C to 110°C.

Weighing 0.59kg, it’s a robust yet lightweight choice for demanding environments. Compliant with P4A tolerance standards, it’s interchangeable with SKF bearings for easy replacement.

Features

How Does 7206 ACD/P4ATBTA Bearing Reduce Friction?

7206 ACD/P4ATBTA Bearing features a 25° contact angle, optimised for smooth angular contact operation.
Its chrome steel construction ensures durability while reducing friction during high-speed rotations.

The phenolic cage maintains ball alignment, minimising wear and enhancing performance.
With a maximum speed of 100,500 rpm, it balances efficiency and reliability in precision applications.

7206 ACD/P4ATBTA Bearing’s extra light preload reduces operational resistance, extending service life.
Its open design allows for easy lubrication, ensuring consistent performance over time.

Application

Industrial Uses of 7206 ACD/P4ATBTA Bearing
7206 ACD/P4ATBTA Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The matched arrangement of three bearings provides stability in demanding industrial environments.

Where Is 7206 ACD/P4ATBTA Bearing Used?
In automotive applications, 7206 ACD/P4ATBTA Bearing supports high-speed components like turbochargers and electric motors. Its phenolic cage reduces friction, enhancing performance under continuous use.

Optimized for Performance: 7206 ACD/P4ATBTA Bearing
For medical imaging devices, 7206 ACD/P4ATBTA Bearing offers reliable precision due to its P4A tolerance class. The chrome steel construction ensures durability in critical healthcare equipment.

Automotive vs Aerospace: Applications of 7206 ACD/P4ATBTA Bearing
7206 ACD/P4ATBTA Bearing is versatile, fitting both automotive transmissions and aerospace actuators. Its extra-light preload makes it suitable for applications requiring minimal friction and high-speed operation.
