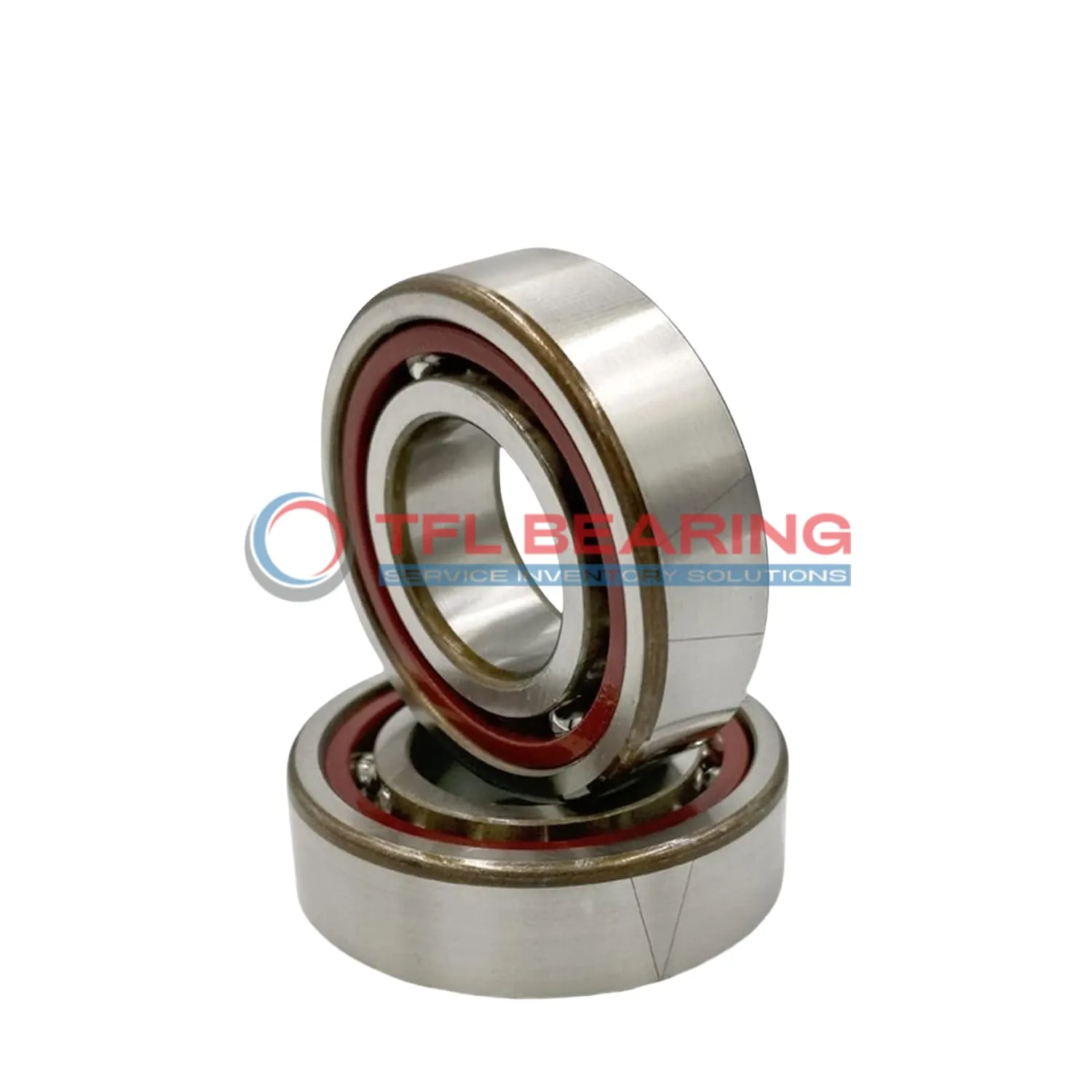

Super Precision Angular Contact Ball Bearings 7202 ACD/P4ADGD

Brand: TFL Bearing Interchangeable: SKF 7202 ACD/P4ADGD 15 mm × 35 mm × 22 mm Metric Open
Part number: 7202 ACD/P4ADGD
Super Precision Angular Contact Ball Bearings 7202 ACD/P4ADGD
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia15 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia35 mm
Outer Dia Tolerance-0.004mm to 0
Width22 mm
Width Tolerance-0.2mm to 0
Ball Dia6.35 mm
Performance
PreloadHeavy / Class D
Dynamic Radial Load2,632 lbf
Static Radial Load1,440 lbf
Temperature Range- 30°C to 110 °C
Max Speed95,000 rpm
Characteristics
Ball Qty10
Contact Angle25°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementUniversal matching
Number Of Bearings In Matched Set2
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationLubricated
Weight0.086 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 7202 ACD/P4ADGD is a super precision angular contact ball bearing with a 15mm bore and 35mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 2632 lbf and spins smoothly at speeds up to 95,000 RPM.

Its 25° contact angle and heavy preload ensure stable performance under demanding conditions. The open design and phenolic cage make it easy to maintain while offering long service life.

This bearing is part of a matched set, suitable for universal mounting in back-to-back, face-to-face, or tandem arrangements. Ideal for high-precision applications like machine tool spindles or robotics.

Weighing just 0.086kg, it’s lightweight yet robust. It operates efficiently in temperatures from -30°C to 110°C, making it versatile for various industrial uses.

Features

Performance Features of 7202 ACD/P4ADGD Bearing

7202 ACD/P4ADGD Bearing is designed with a 25° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls ensure durability and resistance to wear under dynamic radial loads up to 2632 lbf.

The phenolic cage maintains ball alignment, reducing friction and enhancing smooth operation at high speeds.
With a maximum speed of 95,000 rpm, it delivers reliable performance in precision tasks.

7202 ACD/P4ADGD Bearing operates efficiently within a temperature range of -30°C to 110°C.
Its universal matching design allows flexible arrangement options, including back-to-back and face-to-face configurations.

The heavy preload (Class D) ensures stability and precision in demanding applications.
Lubrication is pre-applied, reducing initial setup time and maintenance needs.

Application

Common Applications of 7202 ACD/P4ADGD Bearing
7202 ACD/P4ADGD Bearing is widely used in machine tools, where its super precision and angular contact design ensure accurate spindle performance. The heavy preload and universal matching make it suitable for high-speed operations.

In robotics, 7202 ACD/P4ADGD Bearing supports articulated arms, providing smooth movement and reliable load handling. Its phenolic cage reduces friction, enhancing efficiency in repetitive tasks.

For automotive applications, 7202 ACD/P4ADGD Bearing fits well in gearboxes and differential systems, thanks to its durable chrome steel construction. The P4A tolerance class ensures consistent performance under demanding conditions.

Medical imaging devices benefit from 7202 ACD/P4ADGD Bearing’s precision, as it maintains stability in high-resolution scanners. The open design allows for easy lubrication, extending service life.

In 3D printers, 7202 ACD/P4ADGD Bearing ensures precise linear motion, crucial for detailed prints. Its high-speed capability and low friction make it a reliable choice for automation.
