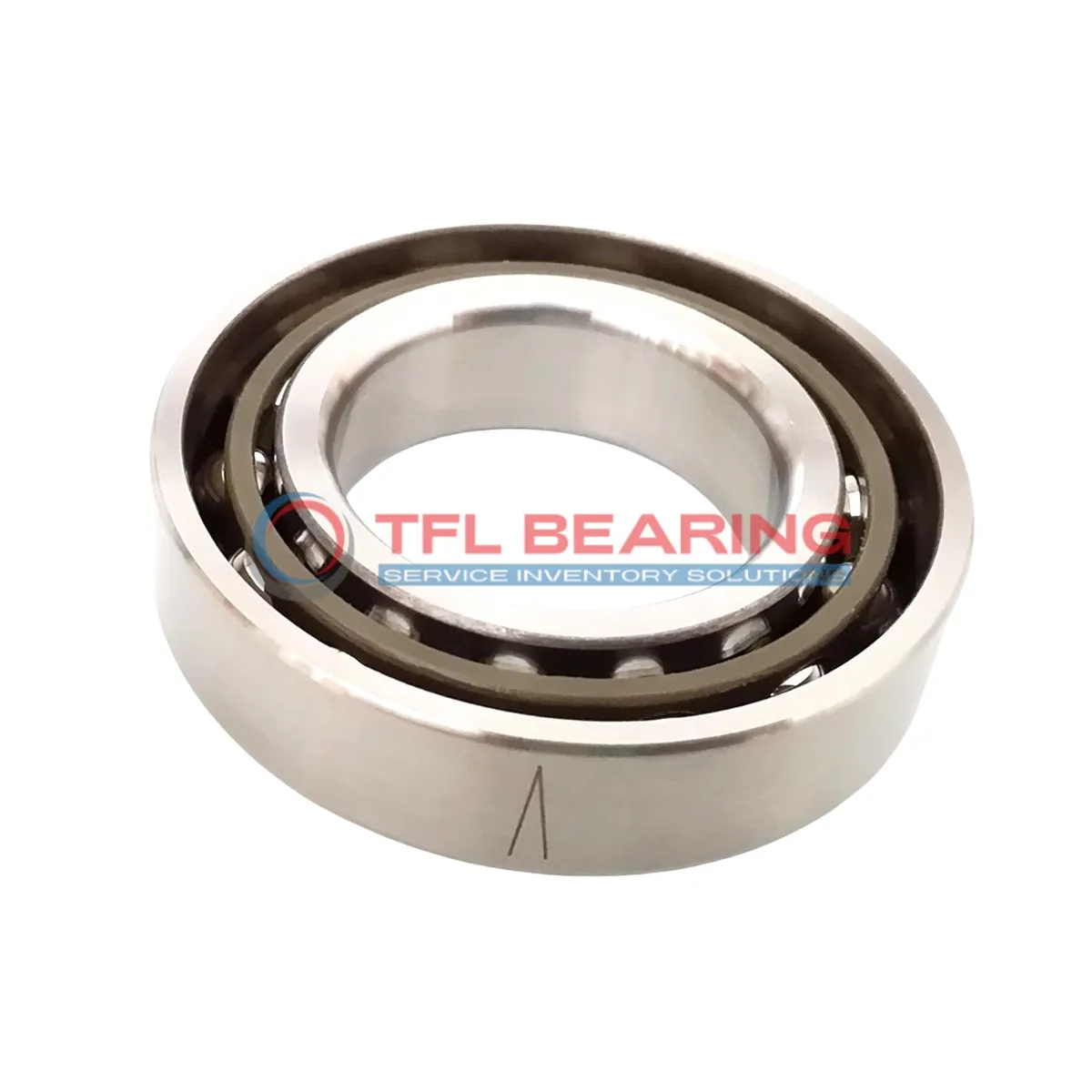

Super Precision Angular Contact Ball Bearings 71922 CD/P4AQBCA

Brand: TFL Bearing Interchangeable: SKF 71922 CD/P4AQBCA 110 mm × 150 mm × 80 mm Metric Open
Part number: 71922 CD/P4AQBCA
Super Precision Angular Contact Ball Bearings 71922 CD/P4AQBCA
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia110 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia150 mm
Outer Dia Tolerance-0.004mm to 0
Width80 mm
Width Tolerance-0.2mm to 0
Ball Dia12.7 mm
Performance
PreloadExtra light / Class A
Dynamic Radial Load37,125 lbf
Static Radial Load65,250 lbf
Temperature Range- 30°C to 110 °C
Max Speed16,250 rpm
Characteristics
Ball Qty28
Contact Angle15°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched Arrangement4 bearings <<>> QBC
Number Of Bearings In Matched Set4
Universal Matching BearingNo
For Load DirectionAngular Contact
LubricationLubricated
Weight3.44 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 71922 CD/P4AQBCA is a super precision angular contact ball bearing with a 110mm bore and 150mm outer diameter, crafted from high-quality chrome steel. It handles radial loads up to 37125 lbf and operates smoothly at speeds up to 16250 RPM.

Its 15° contact angle and matched arrangement of four bearings provide excellent stability for angular loads. The phenolic cage ensures durability while keeping the weight manageable at 3.44kg.

This bearing is lubricated for easy maintenance and works in temperatures from -30°C to 110°C. Ideal for high-precision applications like machine tool spindles or high-speed rotary systems.

Interchangeable with SKF bearings, it offers a reliable replacement option. The P4A tolerance class ensures consistent performance in demanding conditions.

Features

Performance Features of 71922 CD/P4AQBCA Bearing

71922 CD/P4AQBCA Bearing is designed with a 15° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls enhance durability, supporting dynamic radial loads up to 37125 lbf.

The phenolic cage ensures smooth operation, even at high speeds of 16,250 rpm.
Precision P4A tolerance guarantees consistent performance in demanding conditions.

With a matched arrangement of four bearings, 71922 CD/P4AQBCA Bearing offers balanced load handling.
Its extra light preload (Class A) reduces friction, improving efficiency and longevity.

The open design allows for easy lubrication, maintaining optimal performance.
Operating between -30°C to 110°C, it adapts to various environmental conditions.

Application

Industrial Uses of 71922 CD/P4AQBCA Bearing
71922 CD/P4AQBCA Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The phenolic cage reduces friction, making it suitable for high-speed operations.

In aerospace applications, 71922 CD/P4AQBCA Bearing supports critical components like turbine shafts, thanks to its extra light preload and P4A tolerance class. The chrome steel construction provides durability under extreme conditions.

For automation systems, 71922 CD/P4AQBCA Bearing is ideal for robotic arms, offering smooth movement and long service life. Its matched arrangement of four bearings ensures consistent performance in repetitive tasks.

Medical imaging devices benefit from 71922 CD/P4AQBCA Bearing’s precision, as it maintains stability in high-resolution scanners. The lubricated design also minimises maintenance needs in sterile environments.

In electric vehicle motors, 71922 CD/P4AQBCA Bearing handles radial and axial loads efficiently, contributing to quieter and more efficient operation. The metric sizing ensures compatibility with various motor designs.
