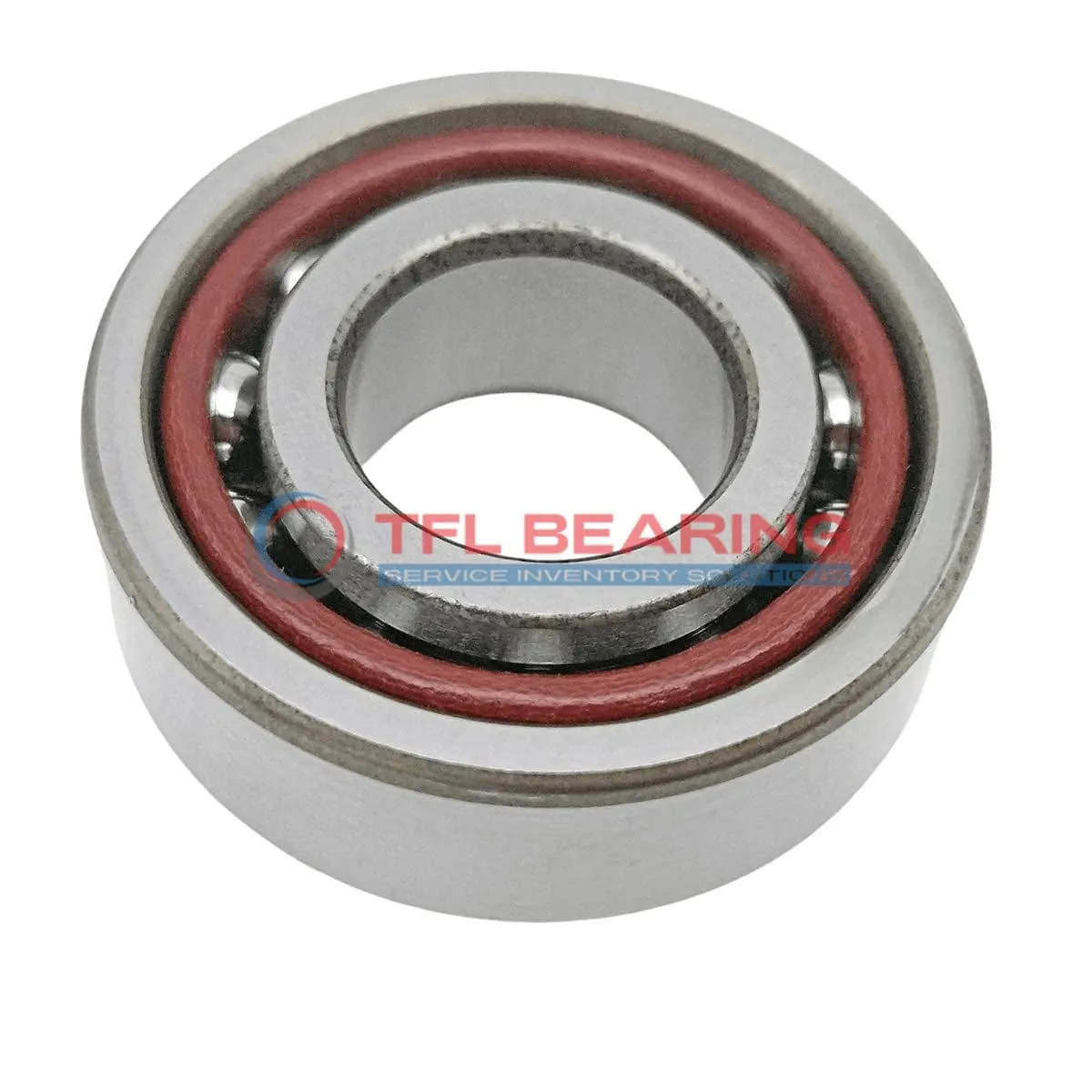

Super Precision Angular Contact Ball Bearings 71921 CD/HCP4A

Brand: TFL Bearing Interchangeable: SKF 71921 CD/HCP4A 105 mm × 145 mm × 20 mm Metric Open
Part number: 71921 CD/HCP4A
Super Precision Angular Contact Ball Bearings 71921 CD/HCP4A
In Stock
US$131.73 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia105 mm
Bore Dia Tolerance-0.008mm to 0
Outer Dia145 mm
Outer Dia Tolerance-0.009mm to 0
Width20 mm
Width Tolerance-0.2mm to 0
Ball Dia12.7 mm
Performance
PreloadAvailable
Dynamic Radial Load13,905 lbf
Static Radial Load15,638 lbf
Temperature Range-30° to 110 °C
Max Speed16,000 rpm
Characteristics
Ball Qty27
Contact Angle15°
Tolerance ClassP4 (ABEC-7)
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementAvailable
For Load DirectionAngular Contact
LubricationLubricated
Weight0.7 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 71921 CD/HCP4A is a super precision angular contact ball bearing with a 105mm bore and 145mm outer diameter, designed for high-speed applications. Its 15° contact angle efficiently handles both radial and axial loads, with dynamic radial load capacity up to 13905 lbf.

Made from chrome steel rings and ceramic balls, it offers smooth operation at speeds up to 16000 RPM. The phenolic cage ensures durability while keeping the bearing lightweight at just 0.7kg.

This open-design bearing comes pre-lubricated and can be matched for universal use, making it versatile for various setups. It performs reliably in temperatures from -30°C to 110°C.

Ideal for precision machinery like CNC spindles or high-speed motors where accuracy is crucial. Its P4 tolerance class (equivalent to ABEC-7) ensures consistent performance in demanding conditions.

Interchangeable with SKF bearings, it’s a practical choice for replacements or upgrades. The ceramic balls reduce friction, enhancing both speed and lifespan in continuous operation.

Features

How Is 71921 CD/HCP4A Bearing Engineered for Reliability?

71921 CD/HCP4A Bearing features a 15° contact angle, optimised for precision angular contact applications.
Its chrome steel rings and ceramic balls enhance durability while reducing friction.

The phenolic cage ensures smooth operation, even at high speeds up to 16,000 rpm.
With a dynamic radial load capacity of 13905 lbf, it handles demanding tasks with ease.

71921 CD/HCP4A Bearing operates efficiently within a temperature range of -30° to 110°C.
Its P4 tolerance class guarantees high precision for critical applications.

Application

Ideal for Precision: 71921 CD/HCP4A Bearing
The 71921 CD/HCP4A Bearing is a go-to choice for high-speed machine tools, where its 15° contact angle ensures smooth operation under angular loads. Its ceramic balls reduce friction, making it ideal for precision grinding applications.

In robotics, the 71921 CD/HCP4A Bearing excels in articulated arms, providing reliable movement with minimal vibration. The phenolic cage adds durability, even in continuous operation scenarios.

For aerospace applications, the 71921 CD/HCP4A Bearing’s P4 tolerance class guarantees accuracy in critical components like gyroscopes. Its lubricated design ensures consistent performance across a wide temperature range.

Automotive enthusiasts appreciate the 71921 CD/HCP4A Bearing in performance gearboxes, where its high dynamic load capacity handles rigorous conditions. The open seal design simplifies maintenance during routine checks.

In medical imaging devices, the 71921 CD/HCP4A Bearing’s chrome steel rings offer stability for precise rotational movements. Its lightweight construction (0.7kg) helps reduce overall equipment weight without compromising strength.
