Super Precision Angular Contact Ball Bearings 71920 ACD/P4ATBTB

Brand: TFL Bearing Interchangeable: SKF 71920 ACD/P4ATBTB 100 mm × 140 mm × 60 mm Metric Open
Part number: 71920 ACD/P4ATBTB
Super Precision Angular Contact Ball Bearings 71920 ACD/P4ATBTB
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia100 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia140 mm
Outer Dia Tolerance-0.004mm to 0
Width60 mm
Width Tolerance-0.2mm to 0
Ball Dia12.7 mm
Performance
PreloadLight / Class B
Dynamic Radial Load27,900 lbf
Static Radial Load42,750 lbf
Temperature Range- 30°C to 110 °C
Max Speed15,000 rpm
Characteristics
Ball Qty26
Contact Angle25°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched Arrangement3 bearings <>> TBT
Number Of Bearings In Matched Set3
Universal Matching BearingNo
For Load DirectionAngular Contact
LubricationLubricated
Weight2.4 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic

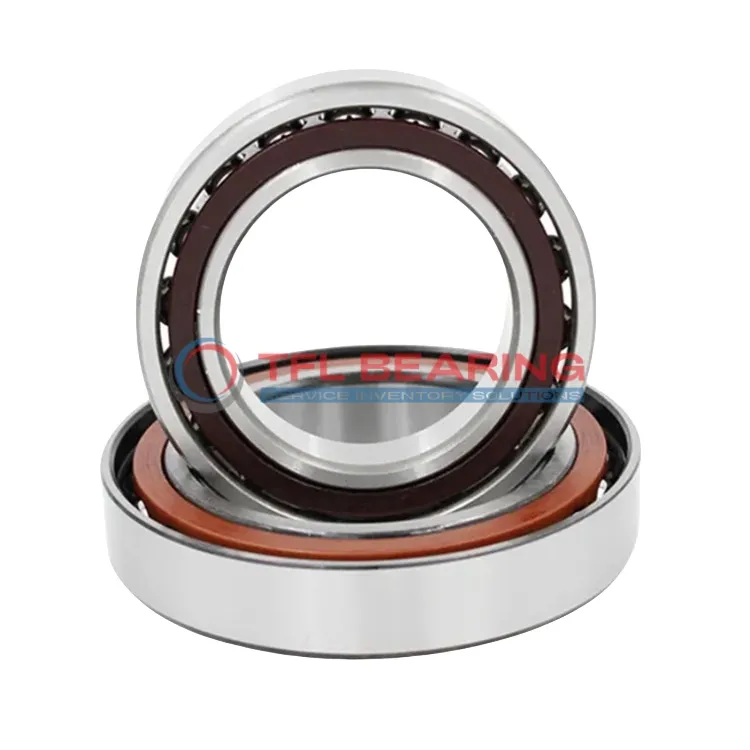

Dimension drawing · click to enlarge

Description

The 71920 ACD/P4ATBTB is a super precision angular contact ball bearing with a 100mm bore and 140mm outer diameter, crafted from high-quality chrome steel. It handles radial loads up to 27900 lbf and operates smoothly at speeds up to 15000 RPM.

Its 25° contact angle and matched set of three bearings (arranged TBT) provide excellent stability for angular loads. The phenolic cage ensures quiet, long-lasting performance, even in temperatures from -30°C to 110°C.

This bearing is preloaded for light applications, making it ideal for high-precision machinery like spindles or CNC equipment. Its open design allows for easy lubrication and maintenance.

Weighing 2.4kg, it’s a robust choice for demanding industrial applications. Compliant with P4A tolerance standards, it offers reliable performance for precision engineering needs.

Features

Performance Features of 71920 ACD/P4ATBTB Bearing

71920 ACD/P4ATBTB Bearing is designed with a 25° contact angle, optimising load distribution for angular contact applications.

Its chrome steel rings and balls provide strong resistance to both dynamic and static radial loads, reaching up to 27900 lbf and 42750 lbf respectively.

The phenolic cage ensures smooth operation at high speeds, with a maximum speed of 15,000 rpm.

With a matched arrangement of three bearings, it offers enhanced stability and precision in demanding conditions.

Application

Practical Applications of 71920 ACD/P4ATBTB Bearing
71920 ACD/P4ATBTB Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The matched arrangement of three bearings provides stability for heavy cutting operations.

In aerospace applications, 71920 ACD/P4ATBTB Bearing supports critical components like helicopter rotor systems, thanks to its light preload and high-speed capability. The phenolic cage reduces friction, making it suitable for long-duration flights.

For robotics, 71920 ACD/P4ATBTB Bearing enables smooth movement in articulated arms, where precise angular contact is essential. Its chrome steel construction ensures durability even in repetitive motion scenarios.

Medical imaging devices benefit from 71920 ACD/P4ATBTB Bearing’s low vibration and high rigidity, crucial for maintaining image clarity. The P4A tolerance class guarantees consistent performance in sensitive environments.

In automotive testing equipment, 71920 ACD/P4ATBTB Bearing handles dynamic radial loads during endurance tests. Its lubricated design minimises maintenance needs, ideal for continuous operation.
