Super Precision Angular Contact Ball Bearings 71920 ACD/P4ATBTA

Brand: TFL Bearing Interchangeable: SKF 71920 ACD/P4ATBTA 100 mm × 140 mm × 60 mm Metric Open
Part number: 71920 ACD/P4ATBTA
Super Precision Angular Contact Ball Bearings 71920 ACD/P4ATBTA
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia100 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia140 mm
Outer Dia Tolerance-0.004mm to 0
Width60 mm
Width Tolerance-0.2mm to 0
Ball Dia12.7 mm
Performance
PreloadExtra light / Class A
Dynamic Radial Load27,900 lbf
Static Radial Load42,750 lbf
Temperature Range- 30°C to 110 °C
Max Speed15,000 rpm
Characteristics
Ball Qty26
Contact Angle25°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched Arrangement3 bearings <>> TBT
Number Of Bearings In Matched Set3
Universal Matching BearingNo
For Load DirectionAngular Contact
LubricationLubricated
Weight2.4 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic

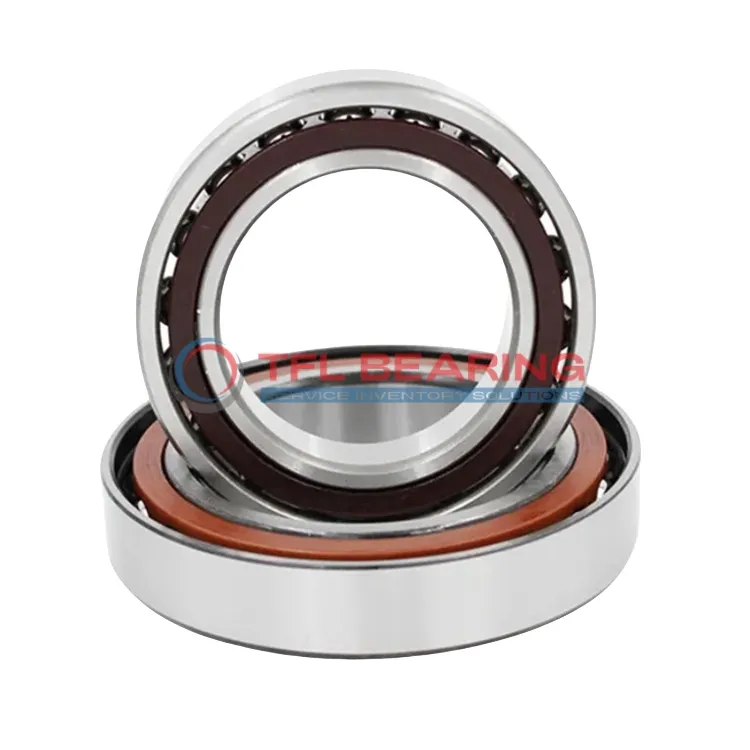

Dimension drawing · click to enlarge

Description

The 71920 ACD/P4ATBTA is a super precision angular contact ball bearing with a 100mm bore and 140mm outer diameter, crafted from high-quality chrome steel. It handles radial loads up to 27900 lbf and operates smoothly at speeds up to 15000 RPM.

With a 25° contact angle and open design, it offers excellent performance in high-speed applications. The phenolic cage ensures durability and reduces friction, enhancing its lifespan.

This bearing comes in a matched set of three, arranged in a TBT configuration, providing extra stability for demanding setups. Ideal for precision machinery like CNC spindles or high-performance motors.

Weighing 2.4kg, it’s robust yet manageable for its size. Compliant with P4A tolerance standards, it ensures reliable accuracy in critical operations. Suitable for temperatures ranging from -30°C to 110°C.

Features

Performance Features of 71920 ACD/P4ATBTA Bearing

71920 ACD/P4ATBTA Bearing is designed with a 25° contact angle, optimising load distribution for precision applications.
Its chrome steel construction ensures durability and consistent performance under high radial loads.

The phenolic cage maintains ball alignment, reducing friction and enhancing operational smoothness.
With a maximum speed of 15,000 rpm, it balances high-speed performance with reliability.

71920 ACD/P4ATBTA Bearing operates efficiently in temperatures from -30°C to 110°C, suitable for varied environments.
Its extra light preload class ensures minimal resistance, ideal for precision machinery.

The matched arrangement of three bearings provides stability and load-sharing capabilities.
This design reduces wear and extends the overall service life of the bearing set.

Lubrication is pre-applied, simplifying initial setup and reducing maintenance requirements.
The P4A tolerance class guarantees high precision, meeting stringent industry standards.

Application

Common Applications of 71920 ACD/P4ATBTA Bearing
71920 ACD/P4ATBTA Bearing is widely used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The phenolic cage reduces friction, making it suitable for high-speed operations.

In robotics, 71920 ACD/P4ATBTA Bearing supports articulated arms, providing smooth movement and long service life. Its matched arrangement of three bearings enhances stability in dynamic applications.

For aerospace components, 71920 ACD/P4ATBTA Bearing handles radial and axial loads efficiently, thanks to its chrome steel construction. The extra light preload ensures minimal vibration during flight operations.

Medical imaging devices benefit from 71920 ACD/P4ATBTA Bearing’s precision, ensuring reliable performance in critical diagnostics. The P4A tolerance class guarantees consistent accuracy in sensitive environments.

In automation systems, 71920 ACD/P4ATBTA Bearing is a trusted choice for linear guides and rotary tables. Its open design allows for easy lubrication, maintaining performance over extended periods.

Q&A

Need a quote?

Send us the part number and quantity.
WhatsApp / phone: +86 15806631151
Email: [email protected]
