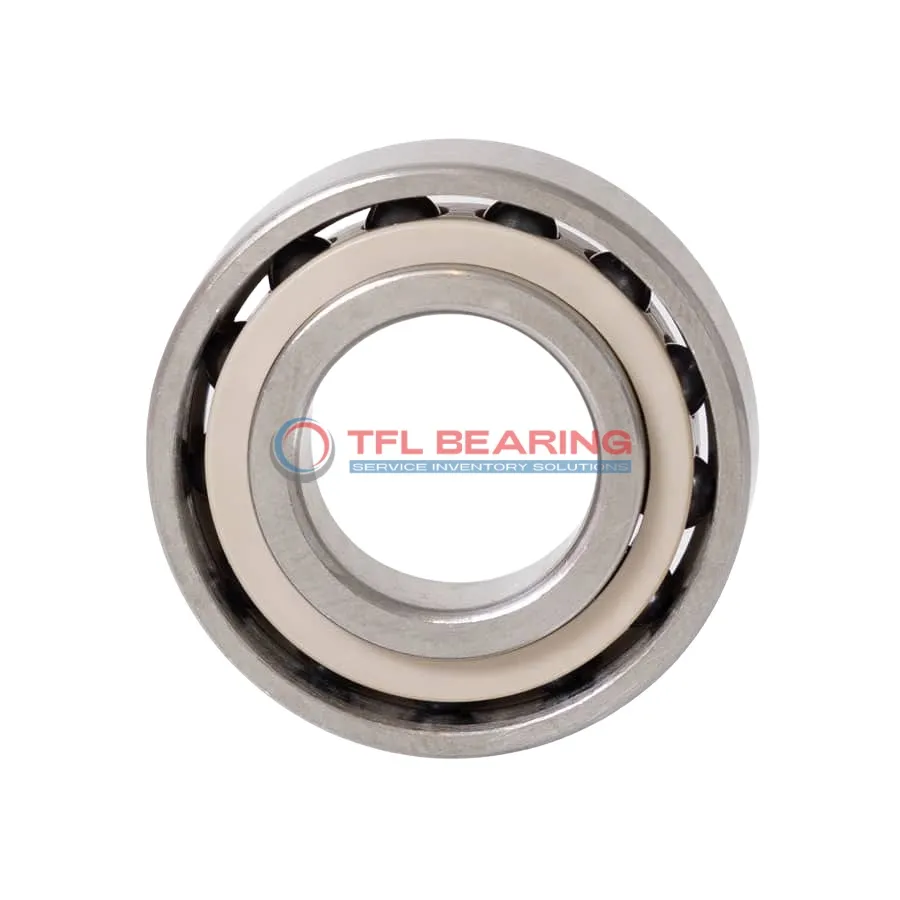

Super Precision Angular Contact Ball Bearings 71919 CE/HCP4A

Brand: TFL Bearing Interchangeable: SKF 71919 CE/HCP4A 95 mm × 130 mm × 18 mm Metric Open
Part number: 71919 CE/HCP4A
Super Precision Angular Contact Ball Bearings 71919 CE/HCP4A
In Stock
US$112.22 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia95 mm
Bore Dia Tolerance-0.008mm to 0
Outer Dia130 mm
Outer Dia Tolerance-0.009mm to 0
Width18 mm
Width Tolerance-0.2mm to 0
Ball Dia11.112 mm
Performance
PreloadAvailable
Dynamic Radial Load7,020 lbf
Static Radial Load5,738 lbf
Temperature Range-30° to 110 °C
Max Speed25,000 rpm
Characteristics
Ball Qty25
Contact Angle15°
Tolerance ClassP4 (ABEC-7)
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementAvailable
For Load DirectionAngular Contact
LubricationLubricated
Weight0.48 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 71919 CE/HCP4A is a super precision angular contact ball bearing with a 95mm bore and 130mm outer diameter, crafted from high-quality chrome steel. It features a 15° contact angle and ceramic balls for smooth operation.

This bearing handles radial loads up to 7020 lbf and spins at speeds up to 25,000 RPM, making it suitable for high-performance applications. Its phenolic cage ensures durability and reduced friction.

With a P4 tolerance class, it offers exceptional accuracy for precision machinery. The open design allows for easy lubrication and maintenance. Ideal for use in CNC spindles or high-speed tooling where precision is key.

Weighing 0.48kg, it’s lightweight yet robust. It’s interchangeable with SKF bearings, providing a reliable replacement option. Compliant with standard temperature ranges from -30°C to 110°C.

Features

How Is 71919 CE/HCP4A Bearing Engineered for Reliability?

71919 CE/HCP4A Bearing features a 15° contact angle, optimised for precision angular contact applications.
Its chrome steel rings and ceramic balls enhance durability while reducing friction.

The phenolic cage ensures smooth operation, even at high speeds up to 25,000 rpm.
With a dynamic radial load capacity of 7020 lbf, it handles demanding conditions reliably.

71919 CE/HCP4A Bearing’s P4 tolerance class guarantees consistent performance in precision tasks.
Its open design allows for easy lubrication, maintaining efficiency over time.

Application

Industrial Uses of 71919 CE/HCP4A Bearing
71919 CE/HCP4A Bearing is commonly used in high-speed machine spindles, where its 15° contact angle ensures smooth rotational accuracy. The ceramic balls reduce friction, making it ideal for precision grinding applications.

In automotive systems, 71919 CE/HCP4A Bearing supports electric motor shafts, providing reliable performance under angular loads. Its phenolic cage offers excellent heat resistance, which is crucial for long-term durability.

For automation equipment, 71919 CE/HCP4A Bearing’s P4 tolerance class ensures consistent performance in robotic arms. The open design allows for easy lubrication, extending service life in demanding environments.

What Makes 71919 CE/HCP4A Bearing a Preferred Choice?
71919 CE/HCP4A Bearing’s matched arrangement option makes it suitable for paired mounting in CNC lathes. The ceramic balls and chrome steel rings provide a good balance between strength and speed.

In medical imaging devices, 71919 CE/HCP4A Bearing’s low vibration characteristics ensure quiet operation. Its high-speed capability is perfect for applications requiring both precision and reliability.
