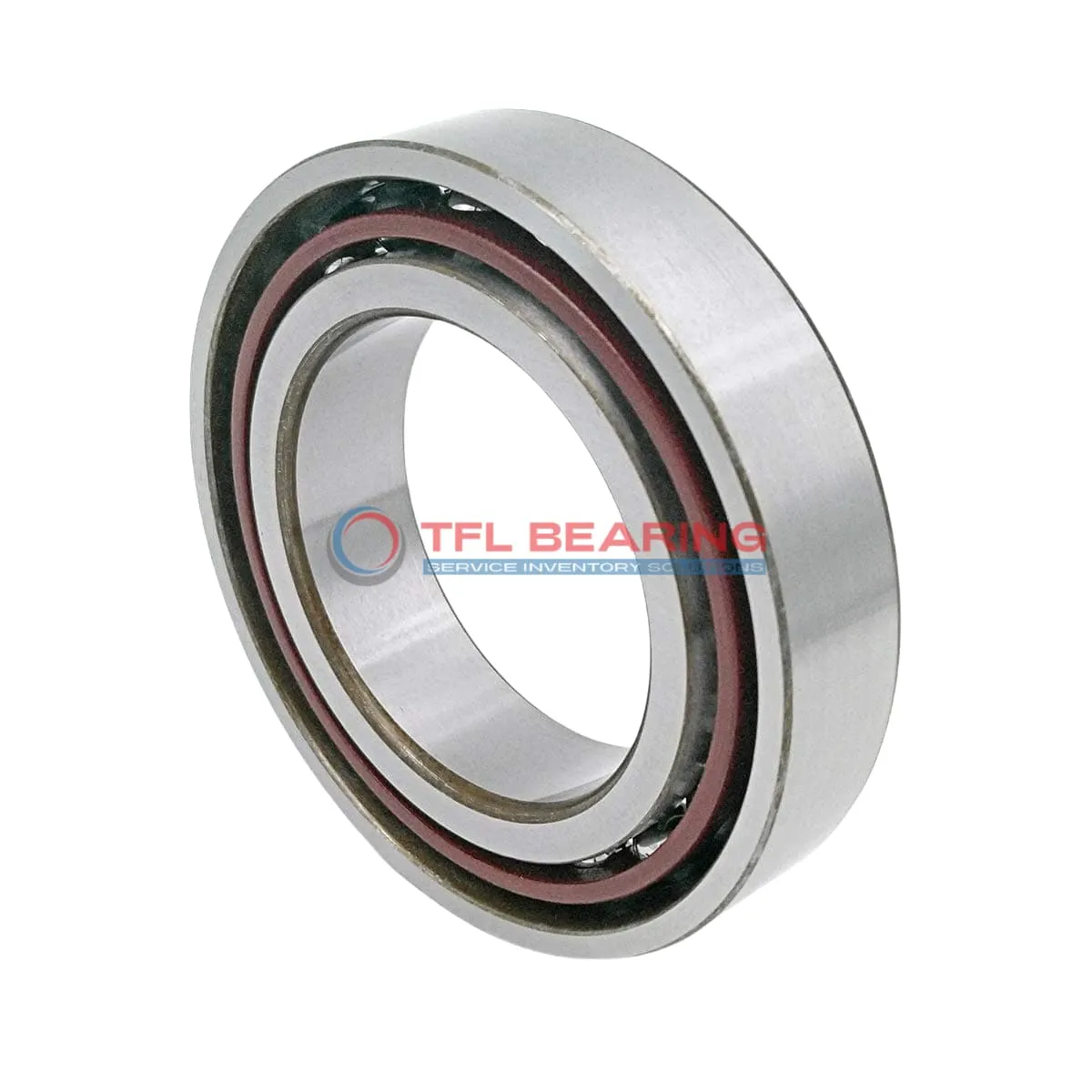

Super Precision Angular Contact Ball Bearings 71918 CE/HCP4A

Brand: TFL Bearing Interchangeable: SKF 71918 CE/HCP4A 90 mm × 125 mm × 18 mm Metric Open
Part number: 71918 CE/HCP4A
Super Precision Angular Contact Ball Bearings 71918 CE/HCP4A
In Stock
US$11.47 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia90 mm
Bore Dia Tolerance-0.008mm to 0
Outer Dia125 mm
Outer Dia Tolerance-0.009mm to 0
Width18 mm
Width Tolerance-0.2mm to 0
Ball Dia11.112 mm
Performance
PreloadAvailable
Dynamic Radial Load6,908 lbf
Static Radial Load5,400 lbf
Temperature Range-30° to 110 °C
Max Speed27,000 rpm
Characteristics
Ball Qty24
Contact Angle15°
Tolerance ClassP4 (ABEC-7)
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementNo
For Load DirectionAngular Contact
LubricationLubricated
Weight0.46 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 71918 CE/HCP4A is a super precision angular contact ball bearing with a 90mm bore and 125mm outer diameter, crafted from high-quality chrome steel. It features a 15° contact angle and ceramic balls for smooth operation.

This bearing handles radial loads up to 6908 lbf and reaches speeds of 27,000 RPM, making it suitable for high-performance applications. Its phenolic cage ensures durability and reduced friction.

The open design allows for easy lubrication, while the P4 tolerance class guarantees precise performance. It operates well in temperatures from -30°C to 110°C.

Ideal for precision machinery like spindles or CNC equipment, this lightweight bearing weighs just 0.46kg. It’s interchangeable with SKF models for convenient replacements.

Features

Performance Features of 71918 CE/HCP4A Bearing

71918 CE/HCP4A Bearing features a 15° contact angle, optimised for precision angular contact applications.

Its chrome steel rings and ceramic balls ensure smooth operation, even at high speeds up to 27,000 rpm.

The phenolic cage provides excellent stability, reducing friction and wear during use.

With a dynamic radial load capacity of 6908 lbf, it delivers reliable performance in demanding conditions.

Application

Industrial Uses of 71918 CE/HCP4A Bearing
71918 CE/HCP4A Bearing is commonly used in high-speed machine tools, where its ceramic balls and phenolic cage reduce friction and heat buildup. The P4 tolerance ensures precise operation, making it ideal for CNC spindle applications.

Where Is 71918 CE/HCP4A Bearing Used?
You’ll often find 71918 CE/HCP4A Bearing in automotive transmissions, where its angular contact design handles combined radial and thrust loads efficiently. The 15° contact angle provides stability at high rotational speeds.

Built for Heavy-Duty Use: 71918 CE/HCP4A Bearing
71918 CE/HCP4A Bearing works well in robotics, particularly in articulated arms requiring smooth, precise movement. Its chrome steel rings and ceramic balls offer durability in continuous operation.

Medical vs Industrial: Where 71918 CE/HCP4A Bearing Excels
In medical imaging devices, 71918 CE/HCP4A Bearing provides quiet, vibration-free performance. For industrial pumps, its lubricated design ensures long service life even under constant load.
