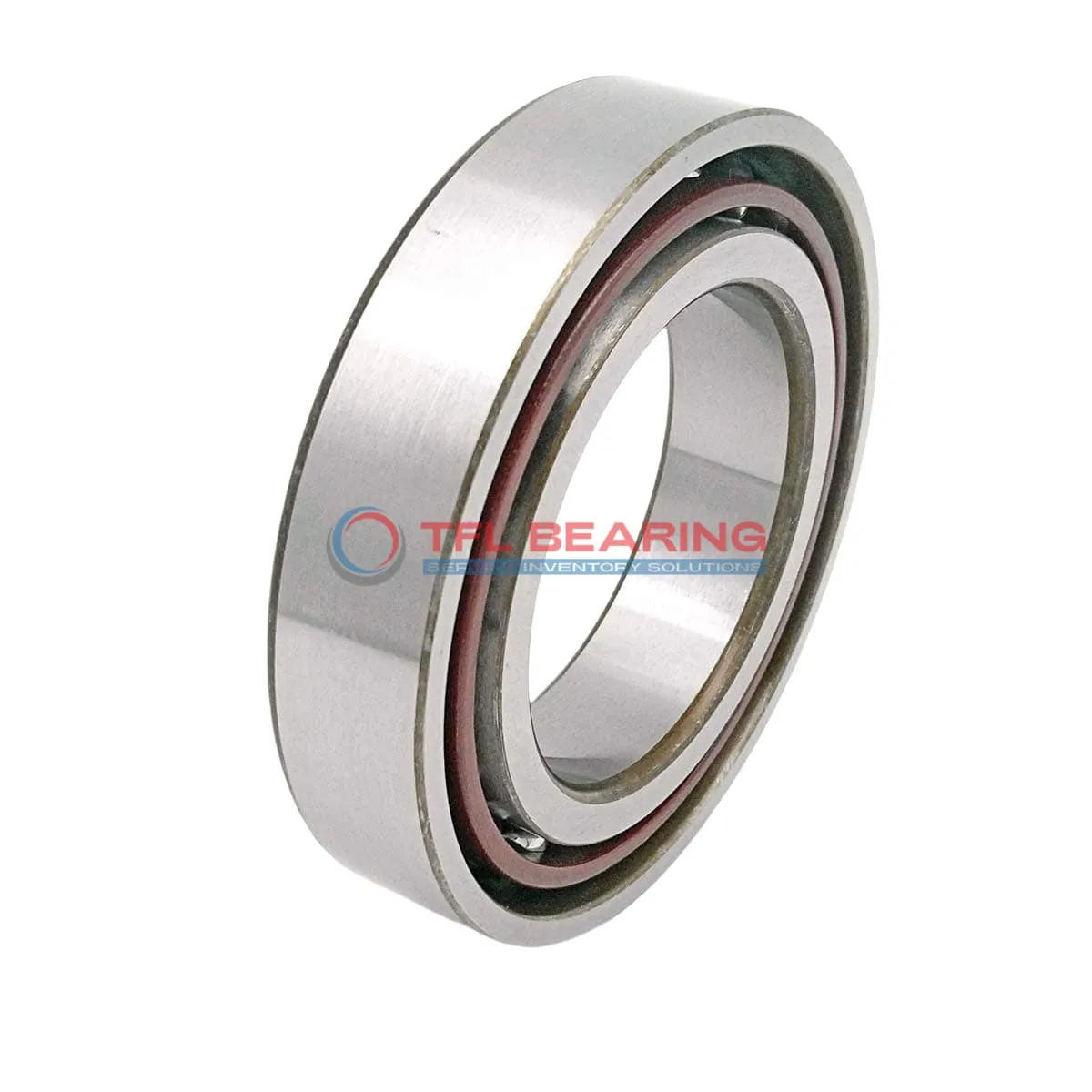

Super Precision Angular Contact Ball Bearings 71916 CB/HCP4A

Brand: TFL Bearing Interchangeable: SKF 71916 CB/HCP4A 80 mm × 110 mm × 16 mm Metric Open
Part number: 71916 CB/HCP4A
Super Precision Angular Contact Ball Bearings 71916 CB/HCP4A
In Stock
US$88.78 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia80 mm
Bore Dia Tolerance-0.007mm to 0
Outer Dia110 mm
Outer Dia Tolerance-0.008mm to 0
Width16 mm
Width Tolerance-0.2mm to 0
Ball Dia6.747 mm
Performance
PreloadAvailable
Dynamic Radial Load3,510 lbf
Static Radial Load3,375 lbf
Temperature Range-30° to 110 °C
Max Speed30,000 rpm
Characteristics
Ball Qty34
Contact Angle15°
Tolerance ClassP4 (ABEC-7)
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementAvailable
For Load DirectionAngular Contact
LubricationLubricated
Weight0.35 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 71916 CB/HCP4A is a super precision angular contact ball bearing with an 80mm bore and 110mm outer diameter, crafted from high-quality chrome steel. It features a 15° contact angle and can handle dynamic radial loads up to 3510 lbf.

With a maximum speed of 30,000 RPM and ceramic balls, it offers smooth, high-speed performance. The phenolic cage ensures durability, while the open design allows for easy lubrication.

This bearing is ideal for precision applications like machine tools or spindles, where accuracy and speed are crucial. It operates efficiently in temperatures from -30°C to 110°C.

Weighing 0.35kg, it’s lightweight yet robust. Compliant with P4 tolerance class (ABEC-7), it’s interchangeable with SKF bearings, making it a reliable choice for replacements.

Features

Why Choose 71916 CB/HCP4A Bearing for Precision Tasks?

71916 CB/HCP4A Bearing features a 15° contact angle, ideal for handling combined radial and axial loads with precision.
Its ceramic balls and chrome steel rings reduce friction, ensuring smooth operation even at high speeds.

The phenolic cage maintains ball alignment, enhancing durability and performance in demanding applications.
With a maximum speed of 30,000 rpm, it excels in high-speed machinery while maintaining accuracy.

71916 CB/HCP4A Bearing’s P4 tolerance class guarantees consistent performance for precision engineering needs.
Its open design allows for easy lubrication, ensuring long service life with minimal maintenance.

Application

Key Fields for 71916 CB/HCP4A Bearing
71916 CB/HCP4A Bearing is commonly used in high-speed machine tools, where its precision angular contact design ensures accurate spindle rotation. The ceramic balls reduce friction, making it ideal for applications demanding smooth operation.

In robotics, 71916 CB/HCP4A Bearing supports articulated arms, providing stability and precision in repetitive movements. Its phenolic cage offers lightweight durability, perfect for automated systems.

For medical imaging devices, 71916 CB/HCP4A Bearing’s P4 tolerance class guarantees consistent performance in sensitive equipment. The chrome steel rings and ceramic balls enhance longevity, even in high-use environments.
