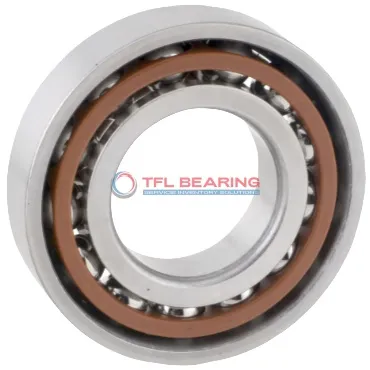

Super Precision Angular Contact Ball Bearings 71914 CEGA/HCP4A

Super Precision Angular Contact Ball Bearings 71914 CEGA/HCP4A

The 71914 CEGA/HCP4A is a super precision angular contact ball bearing with a 70mm bore and 100mm outer diameter, crafted from durable chrome steel. Its 15° contact angle and ceramic balls ensure smooth operation under radial loads up to 4972 lbf.

This bearing spins at speeds up to 28,000 RPM, thanks to its phenolic cage and extra-light preload design. It performs reliably in temperatures ranging from -30°C to 110°C.

Its open seal allows for easy lubrication, while the P4A tolerance class guarantees high precision. The bearing can be used in matched sets for back-to-back, face-to-face, or tandem arrangements.

Weighing just 0.27kg, it’s ideal for high-speed applications like machine tool spindles or precision instruments. Interchangeable with SKF bearings, it offers a practical replacement option.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 71914 CEGA/HCP4A
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 16 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 9.525 mm
  • Ball Qty 22
  • Contact Angle 15°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement No
  • Number Of Bearings In Matched Set 3
  • Universal Matching Bearing Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
  • Preload Extra light / Class A
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Ceramic
  • Cage Material Phenolic
  • Dynamic Radial Load 4972 lbf
  • Static Radial Load 3600 lbf
  • Lubrication Lubricated
  • Temperature Range - 30°C to 110 °C
  • Max Speed 28000 rpm
  • Weight 0.27 kg
  • Price（$） 365.895
Super Precision Angular Contact Ball Bearings 71914 CEGA/HCP4A dimension drawing
Download DWG Download PDF

Features

How Is 71914 CEGA/HCP4A Bearing Engineered for Reliability?

71914 CEGA/HCP4A Bearing features a 15° contact angle, optimised for precision angular contact applications.
Its chrome steel rings and ceramic balls enhance durability while reducing friction.

The phenolic cage maintains ball alignment, ensuring smooth operation even at high speeds.
With a maximum speed of 28,000 rpm, it delivers consistent performance in demanding conditions.

71914 CEGA/HCP4A Bearing’s extra light preload design minimises vibration and noise.
Its P4A tolerance class guarantees high precision for critical applications.

The open seal type allows for easy lubrication, extending the bearing’s service life.
Its dynamic radial load capacity of 4972 lbf ensures reliability under heavy loads.

Application

Key Fields for 71914 CEGA/HCP4A Bearing
71914 CEGA/HCP4A Bearing is commonly used in high-speed machine spindles, where its 15° contact angle ensures smooth rotation under radial and axial loads. The ceramic balls reduce friction, making it ideal for precision applications like CNC machining.

In automotive systems, 71914 CEGA/HCP4A Bearing supports components like turbochargers and electric motors, where its extra light preload enhances performance. The phenolic cage adds durability, even in high-temperature environments.

For medical imaging devices, 71914 CEGA/HCP4A Bearing’s P4A tolerance class guarantees consistent accuracy. Its open design allows for easy lubrication, ensuring long service life in critical equipment.

Automation vs Robotics: Applications of 71914 CEGA/HCP4A Bearing
71914 CEGA/HCP4A Bearing excels in robotic arms, where its high-speed capability and low friction are crucial. The metric sizing ensures compatibility with various European and Asian automation systems.

In 3D printers, 71914 CEGA/HCP4A Bearing’s precision reduces vibration, improving print quality. The chrome steel rings provide reliable performance even during prolonged use.
