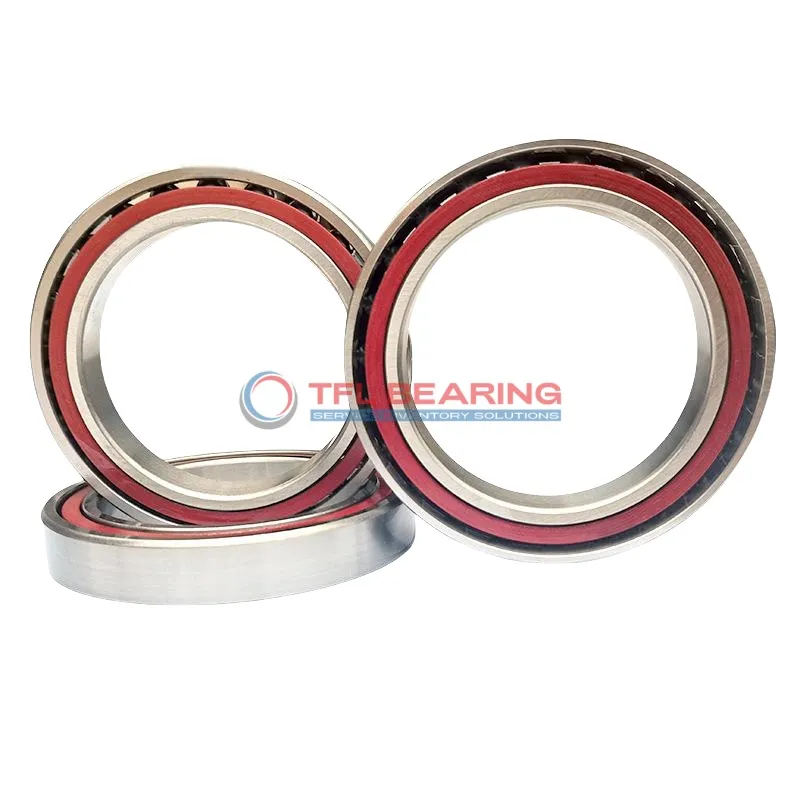

Super Precision Angular Contact Ball Bearings 71912 ACE/HCP4ADGA

Super Precision Angular Contact Ball Bearings 71912 ACE/HCP4ADGA

The 71912 ACE/HCP4ADGA is a super precision angular contact ball bearing with a 60mm bore and 85mm outer diameter, crafted from chrome steel for durability. It features a 25° contact angle and ceramic balls for smooth operation.

This bearing handles radial loads up to 5648 lbf and spins at speeds up to 33,000 RPM. Its extra light preload (Class A) ensures minimal friction, while the phenolic cage offers quiet performance.

The universal matching design allows flexible arrangements (back-to-back, face-to-face, or tandem). Ideal for high-speed applications like machine tool spindles or precision instruments.

Weighing 0.32kg, it operates in temperatures from -30°C to 110°C. Comes as a matched set of two bearings for balanced performance. Compliant with P4A tolerance standards for exceptional accuracy.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 71912 ACE/HCP4ADGA
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 85 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 26 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 7.938 mm
  • Ball Qty 23
  • Contact Angle 25°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement Universal matching
  • Number Of Bearings In Matched Set 2
  • Universal Matching Bearing Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
  • Preload Extra light / Class A
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Ceramic
  • Cage Material Phenolic
  • Dynamic Radial Load 5648 lbf
  • Static Radial Load 4950 lbf
  • Lubrication Lubricated
  • Temperature Range - 30°C to 110 °C
  • Max Speed 33000 rpm
  • Weight 0.32 kg
Super Precision Angular Contact Ball Bearings 71912 ACE/HCP4ADGA dimension drawing
Download DWG Download PDF

Features

Performance Features of 71912 ACE/HCP4ADGA Bearing

71912 ACE/HCP4ADGA Bearing is designed with a 25° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and ceramic balls reduce friction, enhancing precision and speed capabilities.

The phenolic cage ensures smooth operation, even at high speeds up to 33,000 rpm.
With universal matching, it supports various arrangements like back-to-back or face-to-face configurations.

Dynamic radial load capacity of 5648 lbf makes it suitable for demanding tasks.
Its extra light preload (Class A) ensures minimal friction and improved efficiency.

Operating between -30°C to 110°C, 71912 ACE/HCP4ADGA Bearing performs reliably in varied conditions.
The P4A tolerance class guarantees high precision for critical applications.

Application

Super Precision Angular Contact Ball Bearings 71912 ACE/HCP4ADGA are widely used in high-speed machine tools, where their ceramic balls and phenolic cage ensure smooth operation. The universal matching design allows for flexible arrangements, making them suitable for complex setups.

In aerospace applications, 71912 ACE/HCP4ADGA Bearings provide reliable performance in components like turbine shafts, thanks to their P4A tolerance class. The extra-light preload also helps reduce friction during high-speed rotations.

For automation systems, these bearings excel in robotic arms and precision gearboxes, where their angular contact design handles combined loads effectively. The chrome steel rings add durability, ensuring long service life even in demanding conditions.

Medical imaging devices benefit from 71912 ACE/HCP4ADGA Bearings’ low-noise operation and consistent accuracy. The lubricated design further enhances reliability in sensitive environments where minimal maintenance is preferred.
