Super Precision Angular Contact Ball Bearings 71824 ACDGB/P4

Brand: TFL Bearing Interchangeable: SKF 71824 ACDGB/P4 120 mm × 150 mm × 16 mm Metric Open
Part number: 71824 ACDGB/P4
Super Precision Angular Contact Ball Bearings 71824 ACDGB/P4
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia120 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia150 mm
Outer Dia Tolerance-0.004mm to 0
Width16 mm
Width Tolerance-0.2mm to 0
Ball Dia8.731 mm
Performance
PreloadLight / Class B
Dynamic Radial Load7,020 lbf
Static Radial Load9,562 lbf
Temperature Range- 30°C to 110 °C
Max Speed16,250 rpm
Characteristics
Ball Qty35
Contact Angle25°
Tolerance ClassP4
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementNo
Number Of Bearings In Matched Set2
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationLubricated
Weight0.55 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic

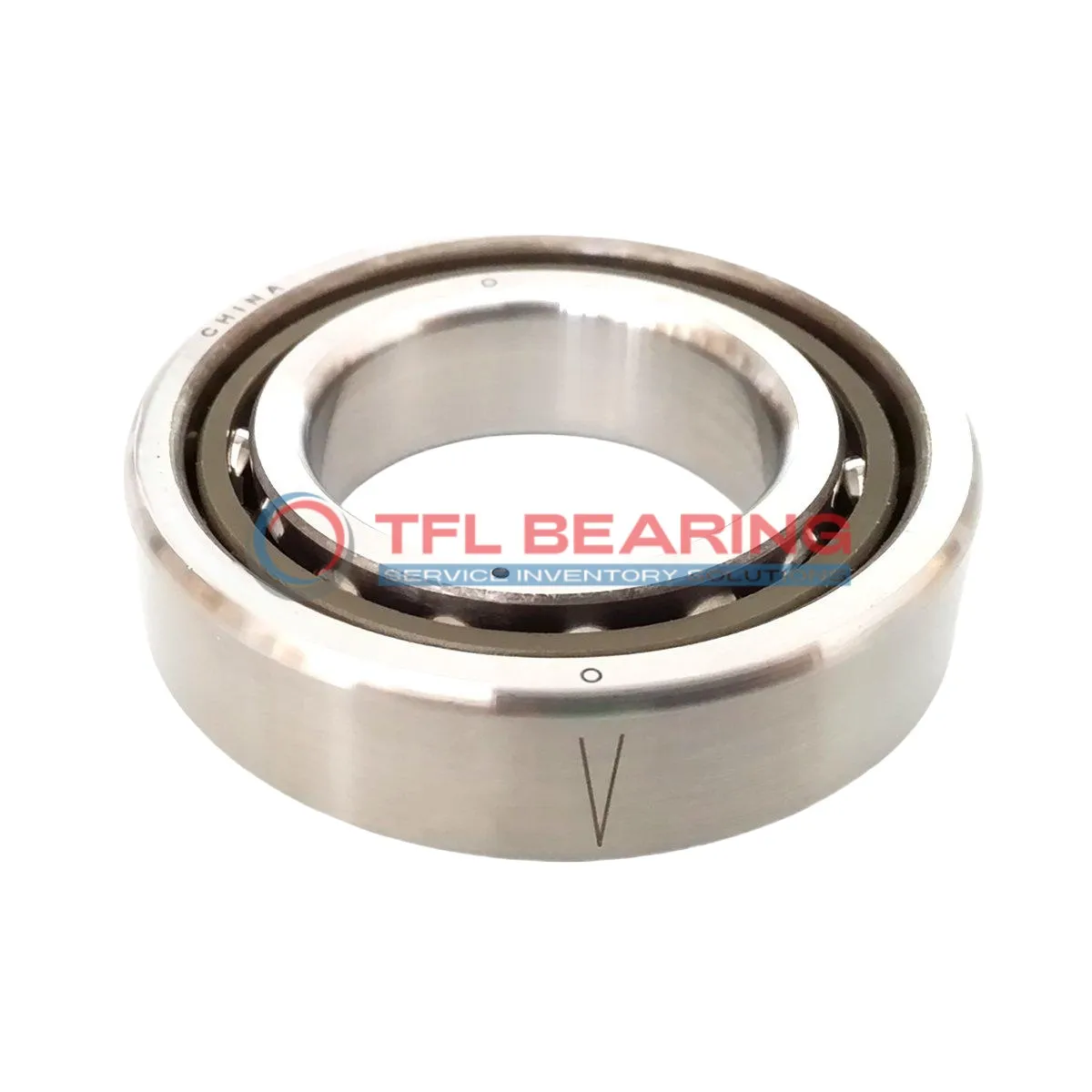

Dimension drawing · click to enlarge

Description

The 71824 ACDGB/P4 is a super precision angular contact ball bearing with a 120mm bore and 150mm outer diameter, crafted from high-quality chrome steel. It handles radial loads up to 7020 lbf and operates smoothly at speeds up to 16,250 RPM.

With a 25° contact angle and light preload, it offers excellent stability for angular contact applications. The phenolic cage ensures durability while keeping the bearing lightweight at just 0.55kg.

This open-design bearing comes pre-lubricated and works in temperatures from -30°C to 110°C. Its P4 tolerance class guarantees high precision for demanding machinery.

Ideal for spindle assemblies or high-speed applications where accuracy is crucial. The bearing can be paired in back-to-back, face-to-face, or tandem configurations for versatile use.

Features

Performance Features of 71824 ACDGB/P4 Bearing

71824 ACDGB/P4 Bearing is designed with a 25° contact angle, optimising load distribution for precision applications.
Its chrome steel rings and balls enhance durability, while the phenolic cage ensures smooth operation at high speeds.

With a dynamic radial load capacity of 7020 lbf, 71824 ACDGB/P4 Bearing handles demanding tasks effortlessly.
The P4 tolerance class guarantees exceptional accuracy, making it ideal for high-performance machinery.

71824 ACDGB/P4 Bearing operates efficiently at speeds up to 16,250 rpm, maintaining stability under stress.
Its universal matching capability allows flexible configurations, including back-to-back or face-to-face arrangements.

The lightweight design of 71824 ACDGB/P4 Bearing reduces overall system weight without compromising strength.
Its temperature range of -30°C to 110°C ensures reliable performance in various environments.

Application

Industrial Uses of 71824 ACDGB/P4 Bearing
71824 ACDGB/P4 Bearing is commonly used in high-precision machine tools, where its 25° contact angle ensures accurate radial and axial load distribution. The open design and phenolic cage make it suitable for high-speed operations in clean environments.

In robotics, 71824 ACDGB/P4 Bearing provides smooth motion control for articulated arms and joints, thanks to its light preload and P4 tolerance class. Its chrome steel construction offers durability in repetitive, high-accuracy tasks.

For aerospace applications, 71824 ACDGB/P4 Bearing handles the demanding loads in flight control systems and landing gear mechanisms. The metric dimensions and universal matching options simplify integration into various aircraft designs.

What Makes 71824 ACDGB/P4 Bearing a Preferred Choice?
71824 ACDGB/P4 Bearing excels in medical imaging equipment, where its precision and low friction are critical for smooth scanner rotation. The lubricated design ensures quiet operation, essential in sensitive diagnostic environments.

In automation systems, 71824 ACDGB/P4 Bearing supports linear guides and spindle drives, maintaining alignment under dynamic loads. Its temperature stability (-30°C to 110°C) makes it reliable in diverse operating conditions.
