Super Precision Angular Contact Ball Bearings 71824 ACD/P4DGC

Super Precision Angular Contact Ball Bearings 71824 ACD/P4DGC

The 71824 ACD/P4DGC is a super precision angular contact ball bearing with a 120mm bore and 150mm outer diameter, crafted from durable chrome steel. Its 25° contact angle efficiently handles both radial and axial loads, making it versatile for high-performance applications.

With a dynamic radial load capacity of 11408 lbf, it supports heavy-duty operations while maintaining smooth rotation at speeds up to 16250 RPM. The phenolic cage ensures stability and reduces friction, enhancing longevity.

Designed for universal matching, this bearing can be arranged back-to-back, face-to-face, or tandem to suit different load requirements. Its moderate preload (Class C) offers balanced stiffness and precision.

Ideal for machine tools, spindles, or other high-speed equipment, it operates reliably in temperatures from -30°C to 110°C. Weighing 1.1kg, it’s robust yet manageable for its size. Compliant with P4 tolerance standards for exceptional accuracy.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 71824 ACD/P4DGC
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 120 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 32 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 8.731 mm
  • Ball Qty 35
  • Contact Angle 25°
  • Tolerance Class P4
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement Universal matching
  • Number Of Bearings In Matched Set 2
  • Universal Matching Bearing Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
  • Preload Moderate / Class C
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 11408 lbf
  • Static Radial Load 19125 lbf
  • Lubrication Lubricated
  • Temperature Range - 30°C to 110 °C
  • Max Speed 16250 rpm
  • Weight 1.1 kg

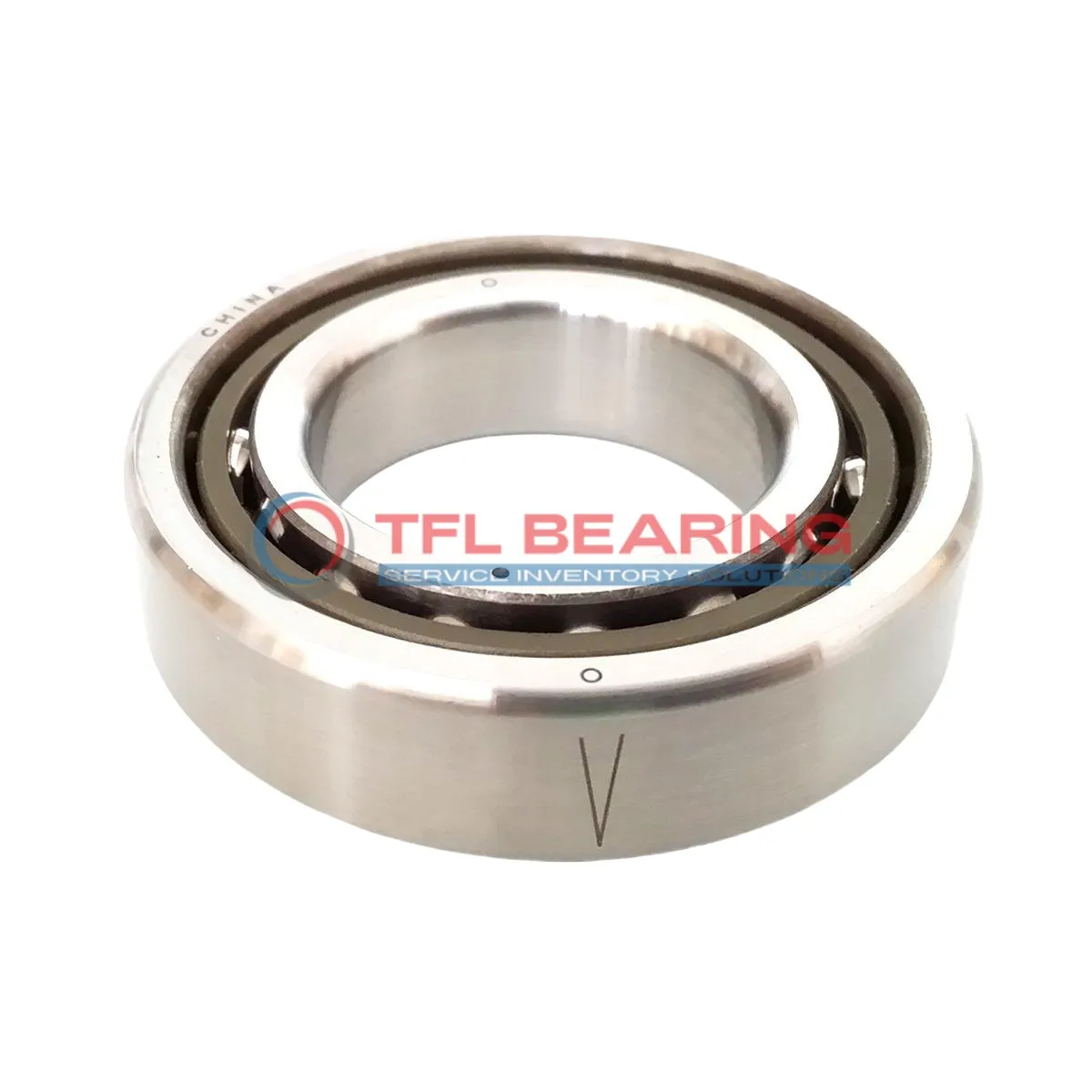

Super Precision Angular Contact Ball Bearings 71824 ACD/P4DGC dimension drawing
Download DWG Download PDF

Features

Performance Features of 71824 ACD/P4DGC Bearing

71824 ACD/P4DGC Bearing is designed with a 25° contact angle, ideal for handling combined radial and axial loads.
Its universal matching allows flexible arrangement in back-to-back, face-to-face, or tandem configurations.

The chrome steel rings and balls ensure durability, while the phenolic cage reduces friction and noise.
With a dynamic radial load capacity of 11408 lbf, it performs reliably in high-speed applications.

71824 ACD/P4DGC Bearing operates smoothly at speeds up to 16,250 rpm, thanks to its precision P4 tolerance class.
Its moderate preload (Class C) enhances stability, making it suitable for demanding machinery.

The open design simplifies lubrication, ensuring consistent performance in temperatures from -30°C to 110°C.
Weighing just 1.1 kg, it balances strength and ease of handling.

Application

Common Applications of 71824 ACD/P4DGC Bearing
71824 ACD/P4DGC Bearing is widely used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The moderate preload and P4 tolerance class make it suitable for applications demanding tight control.

In robotics, 71824 ACD/P4DGC Bearing supports articulated arms, providing smooth movement under combined radial and axial loads. Its universal matching feature allows flexible arrangement in complex assemblies.

For aerospace components, 71824 ACD/P4DGC Bearing’s phenolic cage and chrome steel construction handle high speeds without compromising stability. The lubricated design further extends service life in demanding conditions.

Medical imaging systems benefit from 71824 ACD/P4DGC Bearing’s low vibration and precise motion control. The open seal type facilitates maintenance while keeping contamination risks minimal.

In automotive testing equipment, 71824 ACD/P4DGC Bearing’s dynamic load capacity ensures reliable performance during prolonged use. Its metric dimensions align with standard European engineering specifications.
