Super Precision Angular Contact Ball Bearings 71824 ACD/P4DGB

Brand: TFL Bearing Interchangeable: SKF 71824 ACD/P4DGB 120 mm × 150 mm × 32 mm Metric Open
Part number: 71824 ACD/P4DGB
Super Precision Angular Contact Ball Bearings 71824 ACD/P4DGB
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia120 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia150 mm
Outer Dia Tolerance-0.004mm to 0
Width32 mm
Width Tolerance-0.2mm to 0
Ball Dia8.731 mm
Performance
PreloadLight / Class B
Dynamic Radial Load11,408 lbf
Static Radial Load19,125 lbf
Temperature Range- 30°C to 110 °C
Max Speed16,250 rpm
Characteristics
Ball Qty35
Contact Angle25°
Tolerance ClassP4
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementUniversal matching
Number Of Bearings In Matched Set2
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationLubricated
Weight1.1 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic

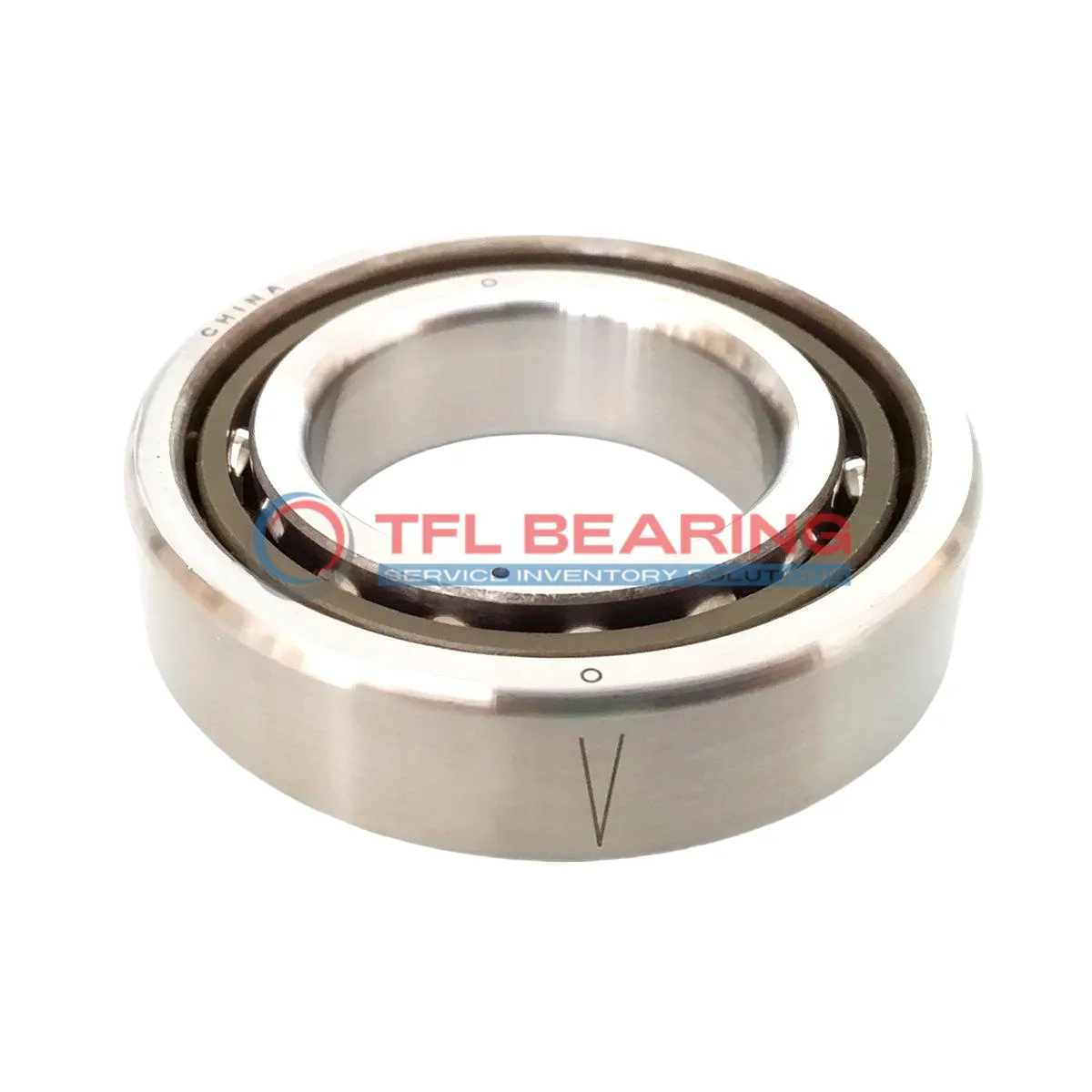

Dimension drawing · click to enlarge

Description

The 71824 ACD/P4DGB is a super precision angular contact ball bearing with a 120mm bore and 150mm outer diameter, crafted from high-quality chrome steel. It features a 25° contact angle and is designed for angular contact loads, handling up to 11408 lbf dynamically.

Its open design and phenolic cage ensure smooth operation at speeds up to 16250 RPM, even in temperatures from -30°C to 110°C. The bearing comes pre-lubricated for immediate use and is part of a matched set for universal mounting options.

This model is interchangeable with SKF bearings, offering flexibility for replacements. Ideal for high-precision applications like machine tool spindles or high-speed robotics, where accuracy and reliability are key.

Weighing 1.1kg, it’s robust yet manageable for its size. Compliant with P4 tolerance standards, it ensures consistent performance in demanding environments.

Features

Performance Features of 71824 ACD/P4DGB Bearing

71824 ACD/P4DGB Bearing is designed with a 25° contact angle, providing excellent radial and axial load capacity.
Its chrome steel rings and balls ensure durability, while the phenolic cage reduces friction for smoother operation.

With a dynamic radial load of 11408 lbf, it handles demanding applications with ease.
The universal matching arrangement allows for versatile installation options, including back-to-back and face-to-face setups.

Operating at speeds up to 16,250 rpm, 71824 ACD/P4DGB Bearing maintains precision and reliability.
Its P4 tolerance class ensures high accuracy, making it suitable for precision machinery.

The open design simplifies lubrication, extending the bearing’s service life.
Its temperature range of -30°C to 110°C ensures performance in various environments.

Application

Industrial Uses of 71824 ACD/P4DGB Bearing
71824 ACD/P4DGB Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The light preload and universal matching make it suitable for applications requiring minimal deflection.

In automotive systems, 71824 ACD/P4DGB Bearing supports high-speed components like turbochargers and electric motors. Its phenolic cage and chrome steel construction provide durability under demanding conditions.

For medical imaging devices, 71824 ACD/P4DGB Bearing offers smooth operation due to its P4 tolerance class. The open design allows for easy lubrication, extending its service life in critical applications.

Automation and robotics benefit from 71824 ACD/P4DGB Bearing’s ability to handle combined loads in robotic arms. The matched arrangement ensures consistent performance in repetitive motion tasks.

In consumer electronics, 71824 ACD/P4DGB Bearing can be found in high-end printers, where its precision reduces vibration and noise. The metric sizing ensures compatibility with various European and Asian models.
