Super Precision Angular Contact Ball Bearings 71816 ACDGB/P4

Brand: TFL Bearing Interchangeable: SKF 71816 ACDGB/P4 80 mm × 100 mm × 10 mm Metric Open
Part number: 71816 ACDGB/P4
Super Precision Angular Contact Ball Bearings 71816 ACDGB/P4
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia80 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia100 mm
Outer Dia Tolerance-0.004mm to 0
Width10 mm
Width Tolerance-0.2mm to 0
Ball Dia5.556 mm
Performance
PreloadLight / Class B
Dynamic Radial Load3,105 lbf
Static Radial Load3,825 lbf
Temperature Range- 30°C to 110 °C
Max Speed28,000 rpm
Characteristics
Ball Qty35
Contact Angle25°
Tolerance ClassP4
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementNo
Number Of Bearings In Matched Set3
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationLubricated
Weight0.15 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic

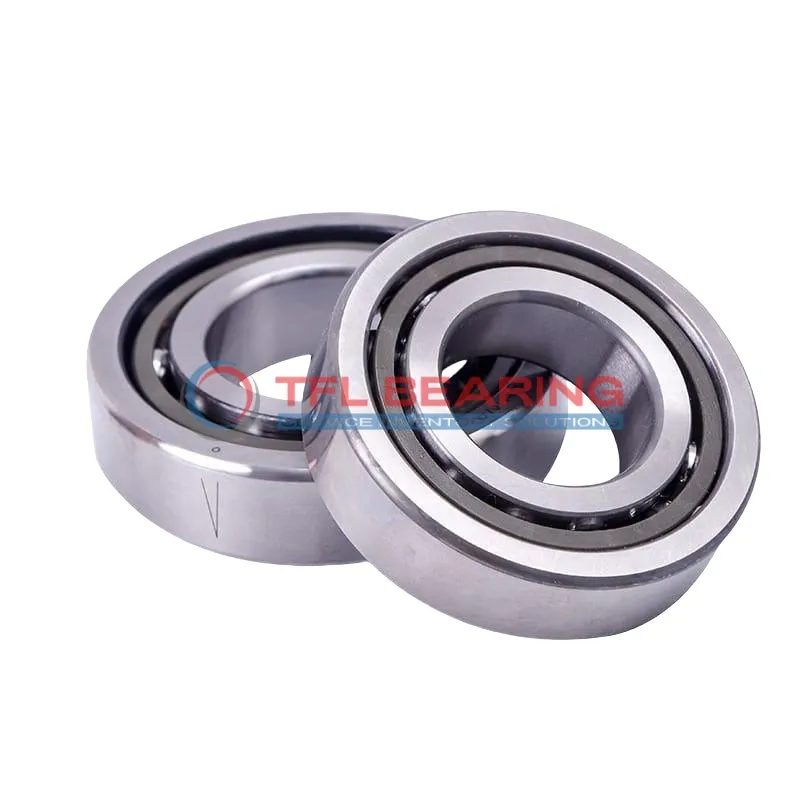

Dimension drawing · click to enlarge

Description

The 71816 ACDGB/P4 is a super precision angular contact ball bearing with an 80mm bore and 100mm outer diameter, crafted from high-quality chrome steel. Its compact 10mm width makes it suitable for space-sensitive applications.

With a 25° contact angle, it handles both radial and axial loads efficiently, supporting up to 3105 lbf dynamically. It spins smoothly at speeds up to 28,000 RPM, ideal for high-performance machinery.

The phenolic cage ensures quiet operation and durability, while the open design allows for easy lubrication. It operates reliably in temperatures from -30°C to 110°C.

This bearing is part of a universal matching set, suitable for back-to-back, face-to-face, or tandem arrangements. Perfect for precision equipment like spindles or machine tools where accuracy is key.

Weighing just 0.15kg, it’s lightweight yet robust, meeting P4 tolerance standards for exceptional precision.

Features

Performance Features of 71816 ACDGB/P4 Bearing

71816 ACDGB/P4 Bearing is designed with a 25° contact angle, optimising load distribution for angular contact applications.
The chrome steel rings and balls enhance durability, while the phenolic cage ensures smooth operation at high speeds.

With a dynamic radial load capacity of 3105 lbf, 71816 ACDGB/P4 Bearing handles demanding conditions reliably.
Its maximum speed of 28,000 rpm makes it suitable for high-performance machinery.

The P4 tolerance class ensures precision, reducing vibration and noise in operation.
Light preload (Class B) further enhances stability and performance.

71816 ACDGB/P4 Bearing operates efficiently within a temperature range of -30°C to 110°C.
Its universal matching capability allows flexible arrangement options for varied applications.

Application

Industrial Uses of 71816 ACDGB/P4 Bearing
71816 ACDGB/P4 Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The light preload and P4 tolerance make it suitable for applications demanding minimal vibration.

In automotive systems, 71816 ACDGB/P4 Bearing supports components like wheel hubs and transmissions, thanks to its ability to handle both radial and axial loads. The phenolic cage offers durability under high-speed conditions.

For robotics, 71816 ACDGB/P4 Bearing provides smooth motion in articulated arms and joints, where precision is key. Its chrome steel construction ensures long-lasting performance even in continuous operation.

Medical imaging devices benefit from 71816 ACDGB/P4 Bearing’s low noise and high-speed capabilities. The open design allows for easy lubrication, maintaining efficiency in critical applications.
