Super Precision Angular Contact Ball Bearings 71816 ACD/P4DGC

Brand: TFL Bearing Interchangeable: SKF 71816 ACD/P4DGC 80 mm × 100 mm × 20 mm Metric Open
Part number: 71816 ACD/P4DGC
Super Precision Angular Contact Ball Bearings 71816 ACD/P4DGC
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia80 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia100 mm
Outer Dia Tolerance-0.004mm to 0
Width20 mm
Width Tolerance-0.2mm to 0
Ball Dia5.556 mm
Performance
PreloadModerate / Class C
Dynamic Radial Load4,972 lbf
Static Radial Load7,762 lbf
Temperature Range- 30°C to 110 °C
Max Speed28,000 rpm
Characteristics
Ball Qty35
Contact Angle25°
Tolerance ClassP4
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementUniversal matching
Number Of Bearings In Matched Set2
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationLubricated
Weight0.3 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic

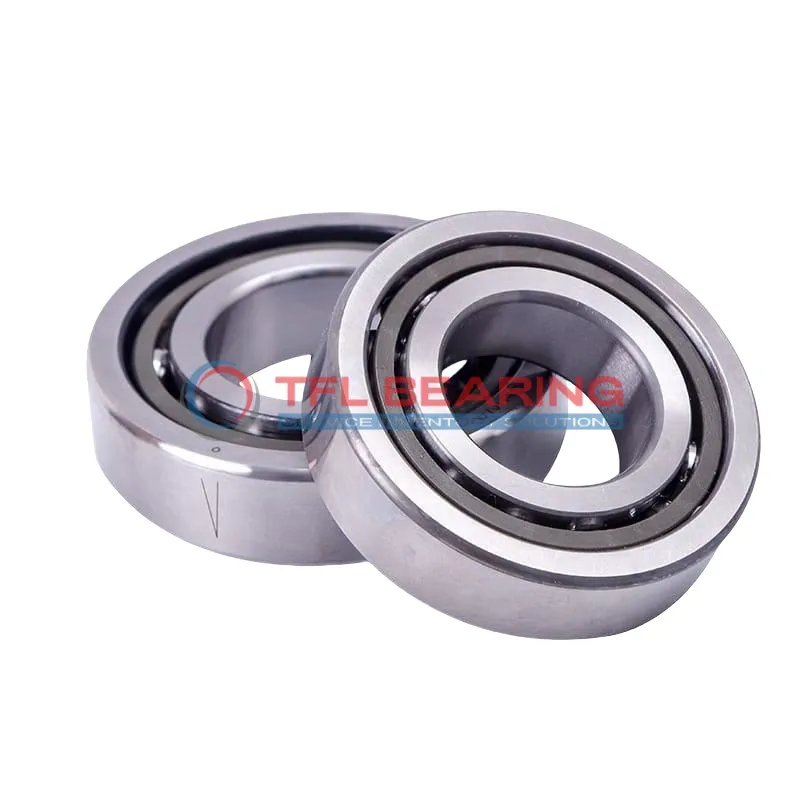

Dimension drawing · click to enlarge

Description

The 71816 ACD/P4DGC is a super precision angular contact ball bearing with an 80mm bore and 100mm outer diameter, crafted from high-quality chrome steel. It features a 25° contact angle and moderate preload for balanced performance.

This bearing handles radial loads up to 4972 lbf and spins smoothly at speeds up to 28,000 RPM. Its open design allows easy lubrication, while the phenolic cage ensures quiet operation and durability.

The universal matching design offers flexibility for back-to-back, face-to-face, or tandem arrangements. Ideal for high-precision applications like machine tool spindles or high-speed robotics.

Weighing just 0.3kg, it operates efficiently in temperatures from -30°C to 110°C. Compliant with P4 tolerance class for exceptional accuracy.

Features

Performance Features of 71816 ACD/P4DGC Bearing

71816 ACD/P4DGC Bearing features a 25° contact angle, optimised for handling combined radial and axial loads.
Its universal matching design allows flexible arrangement in back-to-back, face-to-face, or tandem configurations.

The chrome steel rings and balls ensure durability, while the phenolic cage reduces friction and noise.
With a dynamic radial load capacity of 4972 lbf, it performs reliably in high-speed applications.

71816 ACD/P4DGC Bearing operates smoothly at speeds up to 28,000 rpm, maintaining precision.
Its P4 tolerance class guarantees consistent performance in demanding conditions.

Application

Practical Applications of 71816 ACD/P4DGC Bearing
71816 ACD/P4DGC Bearing is widely used in high-precision machine tools, where its 25° contact angle ensures accurate radial and axial load handling. The universal matching design allows for flexible arrangements, making it suitable for complex setups.

In aerospace applications, 71816 ACD/P4DGC Bearing supports components like turbine shafts, thanks to its moderate preload and high-speed capabilities. The phenolic cage reduces friction, enhancing performance in demanding conditions.

For automation systems, 71816 ACD/P4DGC Bearing is a reliable choice for robotic arms, where its P4 tolerance class guarantees consistent movement. The chrome steel construction also ensures durability in continuous operation.

Medical imaging devices benefit from 71816 ACD/P4DGC Bearing’s precision, particularly in MRI machines where smooth rotation is essential. The open seal design allows for easy lubrication, maintaining performance over time.

In electric motors, 71816 ACD/P4DGC Bearing handles high speeds efficiently, making it ideal for industrial fans and pumps. The metric sizing ensures compatibility with a range of European and Asian equipment.
