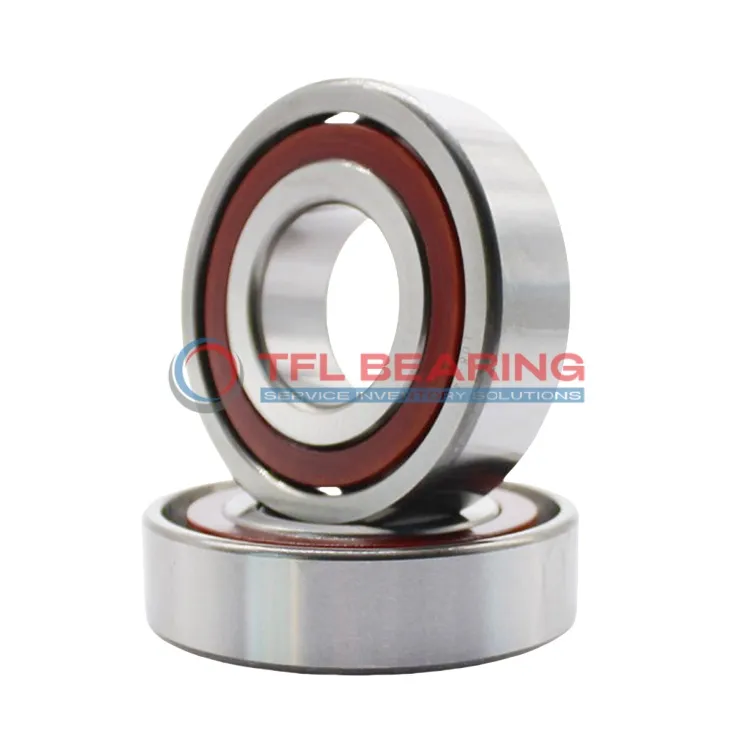

Super Precision Angular Contact Ball Bearings 71812 CDGB/P4

Brand: TFL Bearing Interchangeable: SKF 71812 CDGB/P4 60 mm × 78 mm × 10 mm Metric Open
Part number: 71812 CDGB/P4
Super Precision Angular Contact Ball Bearings 71812 CDGB/P4
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia60 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia78 mm
Outer Dia Tolerance-0.004mm to 0
Width10 mm
Width Tolerance-0.2mm to 0
Ball Dia5.556 mm
Performance
PreloadLight / Class B
Dynamic Radial Load3,038 lbf
Static Radial Load3,218 lbf
Temperature Range- 30°C to 110 °C
Max Speed33,000 rpm
Characteristics
Ball Qty28
Contact Angle15°
Tolerance ClassP4
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementNo
Number Of Bearings In Matched Set2
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationLubricated
Weight0.1 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 71812 CDGB/P4 is a super precision angular contact ball bearing with a 60mm bore and 78mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 3038 lbf and operates smoothly at speeds up to 33,000 RPM.

With a 15° contact angle and light preload, it offers precise performance for demanding applications. The phenolic cage ensures quiet operation and long service life.

This bearing is suitable for temperatures from -30°C to 110°C and comes pre-lubricated for easy use. Its P4 tolerance class guarantees high accuracy.

Ideal for precision machinery like spindles or CNC equipment, where low vibration and high-speed performance are key. Weighing just 0.1kg, it’s lightweight yet robust.

It can be paired in back-to-back, face-to-face, or tandem arrangements for versatile setups. Interchangeable with SKF bearings, making replacements straightforward.

Features

Performance Features of 71812 CDGB/P4 Bearing

71812 CDGB/P4 Bearing features a 15° contact angle, optimised for handling combined radial and axial loads with precision.
Its chrome steel construction ensures durability and resistance to wear in high-speed applications.

The phenolic cage maintains ball alignment, reducing friction and enhancing operational smoothness.
With a maximum speed of 33,000 rpm, it delivers reliable performance in demanding conditions.

71812 CDGB/P4 Bearing operates efficiently within a temperature range of -30°C to 110°C.
Its P4 tolerance class guarantees high precision, making it suitable for critical applications.

The open design allows for easy lubrication, ensuring consistent performance over time.
Light preload class B further enhances its stability and reduces vibration during operation.

Application

Practical Applications of 71812 CDGB/P4 Bearing
71812 CDGB/P4 Bearing is commonly used in high-speed machine tools, where its precision angular contact design ensures accurate spindle rotation. The light preload helps maintain stability during demanding operations.

In robotics, 71812 CDGB/P4 Bearing supports articulated arms, providing smooth movement and reducing friction. Its phenolic cage offers durability in repetitive motion scenarios.

For medical imaging devices, 71812 CDGB/P4 Bearing’s P4 tolerance class guarantees consistent performance in sensitive equipment. The chrome steel construction also resists wear in sterile environments.

Automotive applications include electric vehicle motors, where 71812 CDGB/P4 Bearing handles angular loads efficiently. Its metric sizing fits seamlessly into European and Asian designs.

In 3D printers, 71812 CDGB/P4 Bearing ensures precise linear motion, thanks to its high-speed capabilities. The open design allows for easy lubrication, extending service life.
