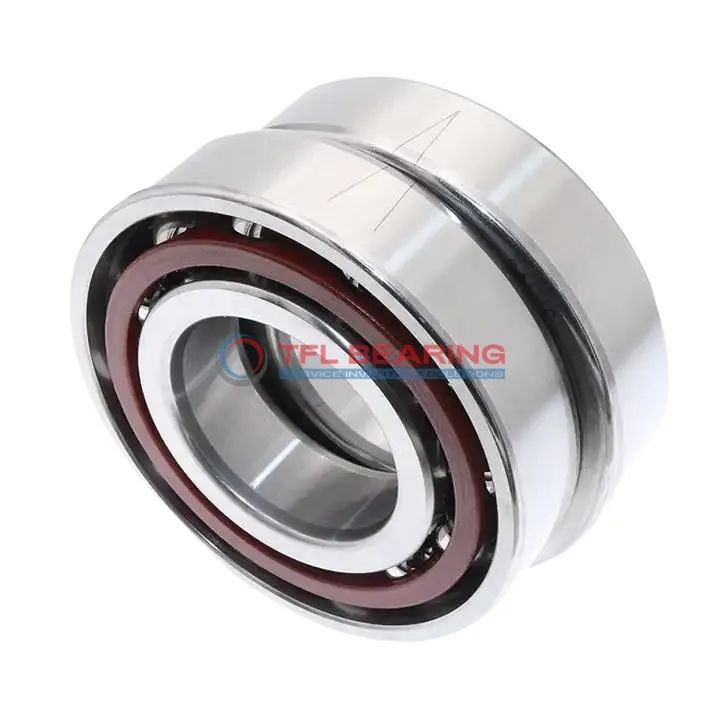

Super Precision Angular Contact Ball Bearings 71807 CD/HCP4DBAGMM

Brand: TFL Bearing Interchangeable: SKF 71807 CD/HCP4DBAGMM 35 mm × 47 mm × 14 mm Metric Open
Part number: 71807 CD/HCP4DBAGMM
Super Precision Angular Contact Ball Bearings 71807 CD/HCP4DBAGMM
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia35 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia47 mm
Outer Dia Tolerance-0.004mm to 0
Width14 mm
Width Tolerance-0.2mm to 0
Ball Dia3.175 mm
Performance
PreloadExtra light / Class A
Dynamic Radial Load1,712 lbf
Static Radial Load1,946 lbf
Temperature Range- 30°C to 110 °C
Max Speed56,000 rpm
Characteristics
Ball Qty26
Contact Angle15°
Tolerance ClassP4
System of MeasurementMetric
Seal TypeOpen
Matched Arrangement2 bearings <> DB
Number Of Bearings In Matched Set2
Universal Matching BearingNo
For Load DirectionAngular Contact
LubricationGrease
Weight0.052 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 71807 CD/HCP4DBAGMM is a super precision angular contact ball bearing with a 35mm bore and 47mm outer diameter, designed for high-speed applications. Its 15° contact angle and ceramic balls ensure smooth operation under radial loads up to 1712 lbf.

The matched pair arrangement (DB) with extra light preload offers stability and reduced vibration. The phenolic cage and chrome steel rings provide durability, while the open design allows for easy relubrication.

With a maximum speed of 56,000 RPM and a temperature range of -30°C to 110°C, it’s suitable for precision machinery like spindles or CNC tools. Weighing just 0.052kg, it’s lightweight yet robust for its size.

This bearing is interchangeable with SKF models, making it a practical choice for replacements or upgrades in demanding environments.

Features

How Does 71807 CD/HCP4DBAGMM Bearing Achieve Super Precision?

71807 CD/HCP4DBAGMM Bearing features a 15° contact angle, optimised for high-precision angular contact applications.
Its chrome steel rings and ceramic balls reduce friction, ensuring smooth operation even at high speeds.

The phenolic cage maintains ball alignment, enhancing durability and performance.
With a maximum speed of 56,000 rpm, it is ideal for demanding, high-speed machinery.

Grease lubrication ensures consistent performance across a temperature range of -30°C to 110°C.
The extra light preload (Class A) further enhances precision and reduces vibration.

Application

Industrial Uses of 71807 CD/HCP4DBAGMM Bearing
This bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The ceramic balls reduce friction, making it ideal for high-speed applications.

In robotics, 71807 CD/HCP4DBAGMM Bearing provides smooth motion control for articulated arms and joints. Its matched arrangement enhances stability, which is crucial for repetitive tasks.

For medical imaging devices, 71807 CD/HCP4DBAGMM Bearing offers reliable performance due to its phenolic cage and grease lubrication. The P4 tolerance class ensures minimal vibration during operation.

Automotive vs Aerospace: Applications of 71807 CD/HCP4DBAGMM Bearing
In automotive systems, this bearing supports components like turbochargers, where its extra light preload improves efficiency. The ceramic balls also handle high temperatures well.

Aerospace applications benefit from 71807 CD/HCP4DBAGMM Bearing’s lightweight design and precision. It’s often found in flight control systems, where reliability is critical.
