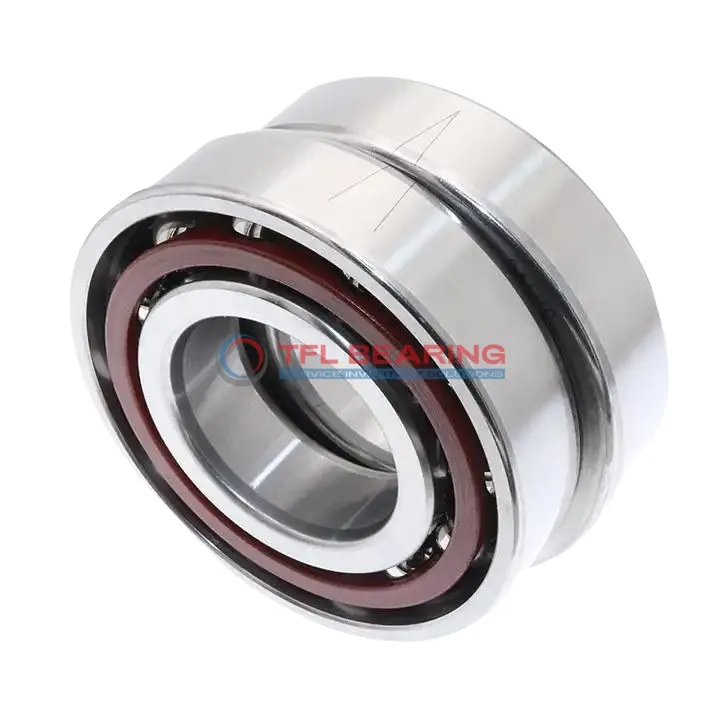

Super Precision Angular Contact Ball Bearings 71807 ACDGA/HCP4

Brand: TFL Bearing Interchangeable: SKF 71807 ACDGA/HCP4 35 mm × 47 mm × 7 mm Metric Open
Part number: 71807 ACDGA/HCP4
Super Precision Angular Contact Ball Bearings 71807 ACDGA/HCP4
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia35 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia47 mm
Outer Dia Tolerance-0.004mm to 0
Width7 mm
Width Tolerance-0.2mm to 0
Ball Dia3.175 mm
Performance
PreloadExtra light / Class A
Dynamic Radial Load981 lbf
Static Radial Load911 lbf
Temperature Range- 30°C to 110 °C
Max Speed56,000 rpm
Characteristics
Ball Qty26
Contact Angle25°
Tolerance ClassP4
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementNo
Number Of Bearings In Matched Set3
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationLubricated
Weight0.026 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 71807 ACDGA/HCP4 is a super precision angular contact ball bearing with a 35mm bore and 47mm outer diameter, designed for high-speed applications. Its 25° contact angle and ceramic balls ensure smooth operation under radial loads up to 981 lbf.

The open design and phenolic cage allow for easy lubrication, while the P4 tolerance class guarantees exceptional accuracy. It can handle speeds up to 56,000 RPM and temperatures from -30°C to 110°C.

This bearing is part of a universal matching set, suitable for back-to-back, face-to-face, or tandem arrangements. Ideal for precision machinery like spindles or CNC tools where high speed and accuracy are crucial.

Weighing just 0.026kg, it’s lightweight yet robust, making it a reliable choice for demanding applications.

Features

How Does 71807 ACDGA/HCP4 Bearing Achieve Super Precision?

71807 ACDGA/HCP4 Bearing features a 25° contact angle, optimised for high-precision angular contact applications.
The ceramic balls and chrome steel rings ensure smooth operation with minimal friction.

With a dynamic radial load capacity of 981 lbf, it handles demanding tasks while maintaining accuracy.
Its phenolic cage keeps the 26 ceramic balls aligned, enhancing durability and performance.

The P4 tolerance class guarantees exceptional precision, ideal for high-speed applications up to 56,000 rpm.
Its compact size (35 mm×47 mm×7 mm) makes it suitable for space-constrained installations.

Application

Ideal for Precision: 71807 ACDGA/HCP4 Bearing
The 71807 ACDGA/HCP4 Bearing is a go-to choice for high-speed machine tools, where its ceramic balls and P4 tolerance ensure minimal friction and precise rotation. Its compact design fits seamlessly into tight spaces without compromising performance.

In robotics, the 71807 ACDGA/HCP4 Bearing excels in articulated arms, providing smooth motion and reliability even under continuous operation. The phenolic cage adds durability, making it suitable for repetitive tasks.

For medical imaging devices, the 71807 ACDGA/HCP4 Bearing’s chrome steel rings and ceramic balls deliver quiet, vibration-free operation. This makes it ideal for sensitive equipment where accuracy is paramount.

Automotive applications like electric vehicle motors benefit from the 71807 ACDGA/HCP4 Bearing’s ability to handle angular loads efficiently. Its lightweight design and high-speed capability enhance overall system performance.

In consumer electronics, such as high-end printers, the 71807 ACDGA/HCP4 Bearing’s precision ensures consistent print quality. The open design allows for easy lubrication, extending its service life.
