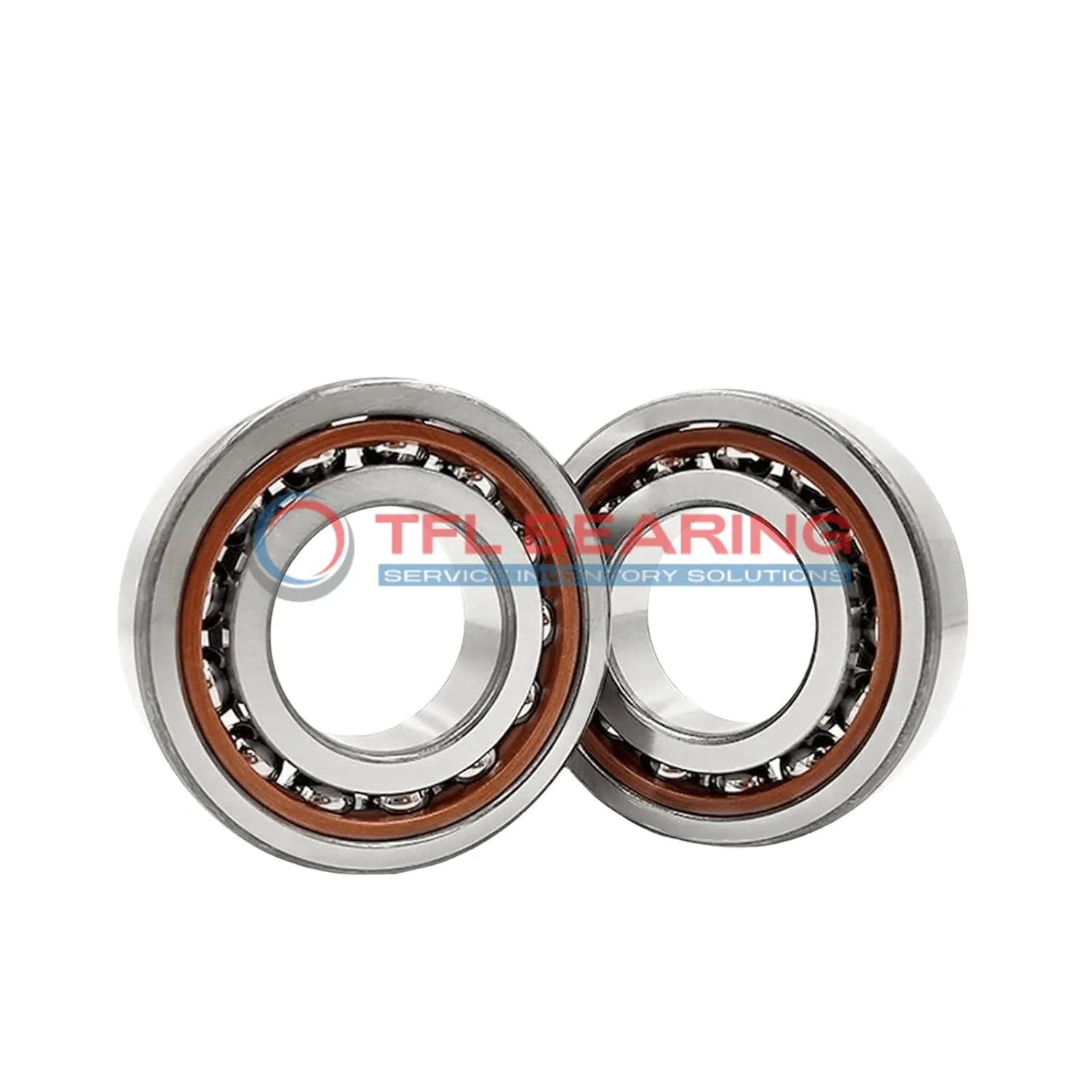

Super Precision Angular Contact Ball Bearings 71807 ACD/P4TBTM

Brand: TFL Bearing Interchangeable: SKF 71807 ACD/P4TBTM 35 mm × 47 mm × 21 mm Metric Open
Part number: 71807 ACD/P4TBTM
Super Precision Angular Contact Ball Bearings 71807 ACD/P4TBTM
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia35 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia47 mm
Outer Dia Tolerance-0.004mm to 0
Width21 mm
Width Tolerance-0.2mm to 0
Ball Dia3.175 mm
Performance
PreloadAvailable
Dynamic Radial Load2,106 lbf
Static Radial Load2,745 lbf
Temperature Range- 30°C to 110 °C
Max Speed56,000 rpm
Characteristics
Ball Qty26
Contact Angle25°
Tolerance ClassP4
System of MeasurementMetric
Seal TypeOpen
Matched Arrangement3 bearings <>> TBT
Number Of Bearings In Matched Set3
Universal Matching BearingNo
For Load DirectionAngular Contact
LubricationLubricated
Weight0.084 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 71807 ACD/P4TBTM is a super precision angular contact ball bearing with a 35mm bore and 47mm outer diameter, crafted from durable chrome steel. Its 25° contact angle efficiently handles both radial and axial loads, with a dynamic radial load capacity of 2106 lbf.

This set includes three matched bearings arranged in a TBT configuration, offering preload for enhanced stability. The phenolic cage ensures smooth operation at high speeds, up to 56,000 RPM, while the open design allows easy lubrication.

Ideal for precision applications like machine tool spindles or high-speed robotics, it operates reliably between -30°C and 110°C. The P4 tolerance class guarantees exceptional accuracy for demanding tasks.

Weighing just 0.084kg, it’s lightweight yet robust, and interchangeable with SKF bearings for convenient replacements. Compliant with industry standards, it’s a dependable choice for high-performance machinery.

Features

How Does 71807 ACD/P4TBTM Bearing Reduce Friction?

71807 ACD/P4TBTM Bearing features a 25° contact angle, optimised for smooth angular contact operation.
The chrome steel construction ensures durability while minimising friction during high-speed rotations.

With a dynamic radial load capacity of 2106 lbf, it handles demanding applications effortlessly.
Its phenolic cage maintains ball alignment, reducing wear and enhancing performance.

The P4 tolerance class guarantees precision, making it ideal for high-accuracy tasks.
Lubricated for efficiency, it operates seamlessly at speeds up to 56,000 rpm.

Application

Key Fields for 71807 ACD/P4TBTM Bearing
71807 ACD/P4TBTM Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The matched set of three bearings provides enhanced stability for demanding operations.

In robotics, 71807 ACD/P4TBTM Bearing supports articulated arms, offering smooth movement and low friction. Its phenolic cage helps reduce weight while maintaining durability in continuous use.

For medical imaging devices, 71807 ACD/P4TBTM Bearing’s P4 tolerance class ensures minimal vibration, crucial for clear diagnostic results. The chrome steel construction also resists wear in sterile environments.

Automotive testing equipment benefits from 71807 ACD/P4TBTM Bearing’s ability to handle combined radial and axial loads. Its lubricated design extends service life even under rigorous testing conditions.

In aerospace applications, 71807 ACD/P4TBTM Bearing’s high-speed capability makes it suitable for auxiliary systems. The temperature range allows reliable performance in varying operational conditions.
