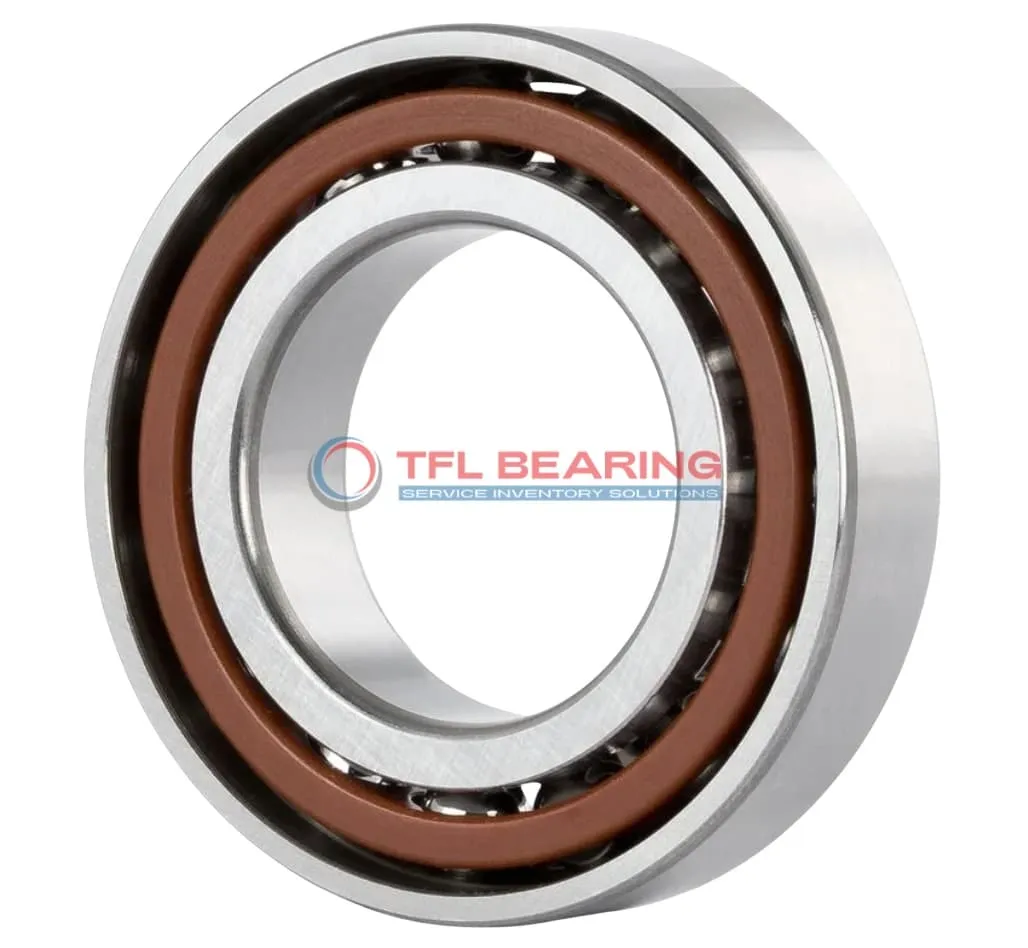

Super Precision Angular Contact Ball Bearings 71806 ACD/HCP4DGA

Brand: TFL Bearing Interchangeable: SKF 71806 ACD/HCP4DGA 30 mm × 42 mm × 14 mm Metric Open
Part number: 71806 ACD/HCP4DGA
Super Precision Angular Contact Ball Bearings 71806 ACD/HCP4DGA
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia30 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia42 mm
Outer Dia Tolerance-0.004mm to 0
Width14 mm
Width Tolerance-0.2mm to 0
Ball Dia3.175 mm
Performance
PreloadExtra light / Class A
Dynamic Radial Load1,521 lbf
Static Radial Load1,598 lbf
Temperature Range- 30°C to 110 °C
Max Speed100,500 rpm
Characteristics
Ball Qty23
Contact Angle25°
Tolerance ClassP4
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementUniversal matching
Number Of Bearings In Matched Set2
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationLubricated
Weight0.048 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 71806 ACD/HCP4DGA is a super precision angular contact ball bearing with a 30mm bore and 42mm outer diameter, measuring 14mm wide. Made from chrome steel and ceramic balls, it offers smooth operation and durability.

With a 25° contact angle, it handles radial loads up to 1521 lbf and spins at speeds up to 100,500 RPM. The phenolic cage ensures stability, while the open design allows easy lubrication.

This bearing comes in a matched set of two, suitable for universal matching in back-to-back, face-to-face, or tandem arrangements. Ideal for high-speed applications like machine tools or precision instruments.

Weighing just 0.048kg, it’s lightweight yet robust. Compliant with P4 tolerance class, it ensures reliable performance in temperatures from -30°C to 110°C.

Features

How Is 71806 ACD/HCP4DGA Bearing Engineered for Reliability?

71806 ACD/HCP4DGA Bearing features a 25° contact angle, optimised for precise angular contact applications.
Its ceramic balls and chrome steel rings ensure smooth operation even at high speeds up to 100,500 rpm.

The phenolic cage maintains ball alignment, reducing friction and wear.
With universal matching capability, it offers flexibility in mounting configurations like back-to-back or face-to-face.

Designed for extra light preload, 71806 ACD/HCP4DGA Bearing delivers consistent performance under dynamic radial loads of 1521 lbf.
Its P4 tolerance class guarantees high precision in demanding environments.

The open seal design allows for easy lubrication, extending service life.
Operating between -30°C to 110°C, it performs reliably in varied temperature conditions.

Application

Practical Applications of 71806 ACD/HCP4DGA Bearing
In industrial settings, 71806 ACD/HCP4DGA Bearing is commonly used in high-speed spindles and precision machine tools, where its ceramic balls reduce friction and heat buildup. The universal matching design allows for flexible arrangements, making it suitable for complex machinery.

Where Is 71806 ACD/HCP4DGA Bearing Used?
You’ll often find 71806 ACD/HCP4DGA Bearing in automotive applications like electric motors and gearboxes, where its angular contact design handles combined loads efficiently. The phenolic cage ensures quiet operation, perfect for electric vehicles.

Optimized for Performance: 71806 ACD/HCP4DGA Bearing
For medical devices such as dental drills and imaging equipment, 71806 ACD/HCP4DGA Bearing offers reliable precision due to its P4 tolerance class. The ceramic balls also resist corrosion, ideal for sterile environments.

Automotive vs Aerospace: Applications of 71806 ACD/HCP4DGA Bearing
In automotive systems, 71806 ACD/HCP4DGA Bearing supports high-speed components like turbochargers. Meanwhile, in aerospace, its lightweight design and ceramic balls make it a fit for avionics and control systems.

Essential Roles of 71806 ACD/HCP4DGA Bearing
In robotics and automation, 71806 ACD/HCP4DGA Bearing ensures smooth motion in robotic arms and CNC machines. The extra-light preload reduces vibration, enhancing accuracy in repetitive tasks.
