Super Precision Angular Contact Ball Bearings 71803 ACD/HCP4

Brand: TFL Bearing Interchangeable: SKF 71803 ACD/HCP4 17 mm × 26 mm × 5 mm Metric Open
Part number: 71803 ACD/HCP4
Super Precision Angular Contact Ball Bearings 71803 ACD/HCP4
In Stock
US$169.82 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia17 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia26 mm
Outer Dia Tolerance-0.005mm to 0
Width5 mm
Width Tolerance-0.2mm to 0
Ball Dia2.381 mm
Performance
PreloadAvailable
Dynamic Radial Load497 lbf
Static Radial Load344 lbf
Temperature Range-30° to 110 °C
Max Speed90,000 rpm
Characteristics
Ball Qty18
Contact Angle25°
Tolerance ClassP4 (ABEC-7)
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementAvailable
For Load DirectionAngular Contact
LubricationLubricated
Weight0.009 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic

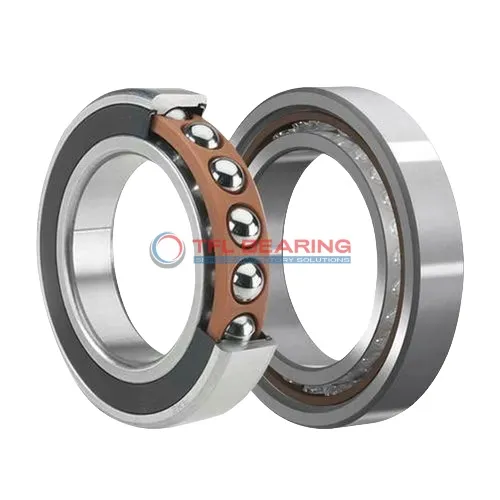

Dimension drawing · click to enlarge

Description

The 71803 ACD/HCP4 is a super precision angular contact ball bearing with a compact size of 17mm by 26mm by 5mm, crafted from chrome steel and ceramic balls. It handles radial loads up to 497 lbf and reaches speeds of 90,000 RPM, making it ideal for high-performance applications.

Its 25° contact angle and phenolic cage ensure smooth operation under angular loads, while the open design allows for easy lubrication. The P4 tolerance class guarantees exceptional accuracy, suitable for precision machinery.

This bearing is interchangeable with SKF models, offering a reliable replacement option. Perfect for use in spindles or high-speed tools where precision and durability are key.

Weighing just 0.009kg, it’s lightweight yet robust, performing well in temperatures from -30°C to 110°C.

Features

Performance Features of 71803 ACD/HCP4 Bearing

71803 ACD/HCP4 Bearing is designed with a 25° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and ceramic balls enhance durability while reducing friction.
The phenolic cage ensures smooth operation, even at high speeds up to 90,000 rpm.
With a P4 tolerance class, it delivers precision performance in demanding conditions.

Application

Ideal for Precision: 71803 ACD/HCP4 Bearing
71803 ACD/HCP4 Bearing is commonly used in high-speed machine tools, where its ceramic balls and phenolic cage ensure smooth operation. The 25° contact angle provides excellent radial and axial load support.

In robotics, 71803 ACD/HCP4 Bearing is a go-to choice for precise joint movements, thanks to its P4 tolerance class. Its compact size fits well in tight spaces without compromising performance.

For medical imaging devices, 71803 ACD/HCP4 Bearing’s low friction and high-speed capability make it reliable. The chrome steel rings add durability, even in demanding conditions.

Automotive applications like electric motor shafts benefit from 71803 ACD/HCP4 Bearing’s balanced load handling. Its lubricated design ensures long service life with minimal maintenance.
