Super Precision Angular Contact Ball Bearings 709 ACDGB/P4A

Brand: TFL Bearing Interchangeable: SKF 709 ACDGB/P4A 9 mm × 24 mm × 7 mm Metric Open
Part number: 709 ACDGB/P4A
Super Precision Angular Contact Ball Bearings 709 ACDGB/P4A
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia9 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia24 mm
Outer Dia Tolerance-0.004mm to 0
Width7 mm
Width Tolerance-0.2mm to 0
Ball Dia3.969 mm
Performance
PreloadLight / Class B
Dynamic Radial Load776 lbf
Static Radial Load344 lbf
Temperature Range- 30°C to 110 °C
Max Speed220,000 rpm
Characteristics
Ball Qty10
Contact Angle25°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementNo
Number Of Bearings In Matched Set2
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationLubricated
Weight0.015 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic

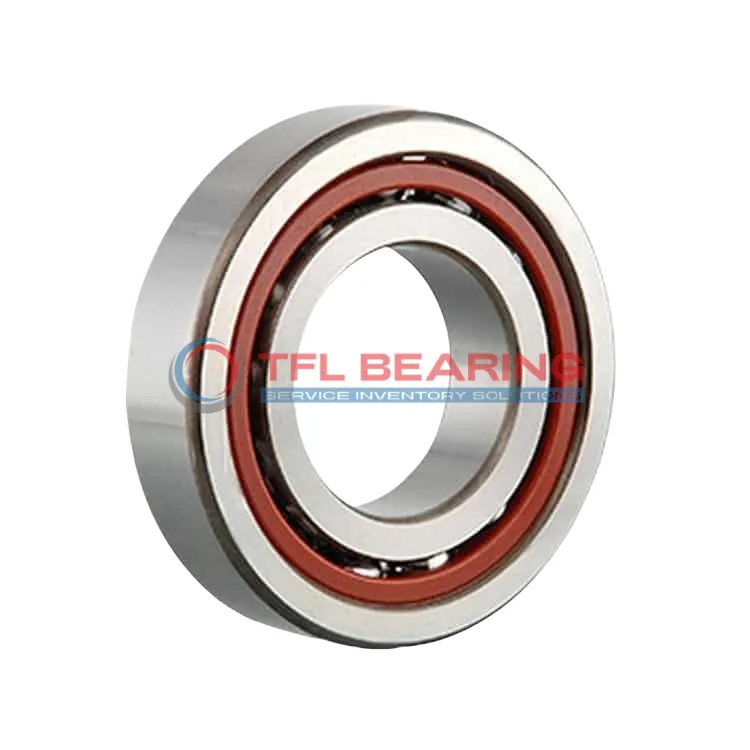

Dimension drawing · click to enlarge

Description

The 709 ACDGB/P4A is a super precision angular contact ball bearing with a compact size of 9mm by 24mm by 7mm, crafted from chrome steel for durability. It handles radial loads up to 776 lbf and spins smoothly at speeds up to 220,000 RPM.

Its 25° contact angle and light preload ensure precise performance in high-speed applications. The open design and phenolic cage make it easy to maintain and resistant to wear.

This bearing is ideal for precision machinery like spindles or dental tools, where accuracy and speed are key. It can be paired in back-to-back, face-to-face, or tandem arrangements for versatile use.

Weighing just 0.015kg, it’s lightweight yet robust. Compliant with P4A tolerance standards, it’s a reliable choice for demanding applications. Interchangeable with SKF bearings for easy replacement.

Features

Why Choose 709 ACDGB/P4A Bearing for Precision Tasks?

709 ACDGB/P4A Bearing features a 25° contact angle, ideal for handling combined radial and axial loads with precision.
Its chrome steel rings and balls ensure durability, while the phenolic cage reduces friction for smoother operation.

With a dynamic radial load capacity of 776 lbf, it performs reliably in high-speed applications.
The P4A tolerance class guarantees consistent accuracy, making it suitable for demanding tasks.

Operating at speeds up to 220,000 rpm, 709 ACDGB/P4A Bearing balances speed and stability.
Its lightweight design at just 0.015 kg makes it efficient without compromising strength.

The open seal type allows for easy lubrication, maintaining optimal performance.
Its universal matching capability enables flexible configurations like back-to-back or face-to-face arrangements.

Application

Key Fields for 709 ACDGB/P4A Bearing
In industrial settings, 709 ACDGB/P4A Bearing is commonly used in high-speed spindles and precision machine tools, where its angular contact design ensures accurate radial and axial load handling. The phenolic cage reduces friction, making it ideal for continuous operation.

Automotive vs Aerospace: Applications of 709 ACDGB/P4A Bearing
For automotive applications, 709 ACDGB/P4A Bearing fits well in gearboxes and electric motors, offering smooth performance under light preload. In aerospace, its P4A tolerance class meets the stringent requirements for navigation systems and flight controls.

How Does 709 ACDGB/P4A Bearing Improve Performance?
The 25° contact angle of 709 ACDGB/P4A Bearing enhances stability in high-speed scenarios, such as dental drills or CNC routers. Its chrome steel construction ensures durability, even in demanding environments.

Perfect Fit for Automation: 709 ACDGB/P4A Bearing
In robotics and automation, 709 ACDGB/P4A Bearing supports precise movements in robotic arms and 3D printers. The open seal design allows for easy lubrication, extending its service life.

Where Is 709 ACDGB/P4A Bearing Used?
You’ll often find 709 ACDGB/P4A Bearing in medical imaging devices, where its low friction and high-speed capability are crucial. The lightweight design also makes it suitable for portable diagnostic equipment.
