Super Precision Angular Contact Ball Bearings 709 ACD/HCP4A

Brand: TFL Bearing Interchangeable: SKF 709 ACD/HCP4A 9 mm × 24 mm × 7 mm Metric Open
Part number: 709 ACD/HCP4A
Super Precision Angular Contact Ball Bearings 709 ACD/HCP4A
In Stock
US$95.90 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia9 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia24 mm
Outer Dia Tolerance-0.005mm to 0
Width7 mm
Width Tolerance-0.2mm to 0
Ball Dia3.969 mm
Performance
PreloadAvailable
Dynamic Radial Load776 lbf
Static Radial Load344 lbf
Temperature Range-30° to 110 °C
Max Speed130,000 rpm
Characteristics
Ball Qty10
Contact Angle25°
Tolerance ClassP4 (ABEC-7)
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementNo
For Load DirectionAngular Contact
LubricationLubricated
Weight0.013 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic

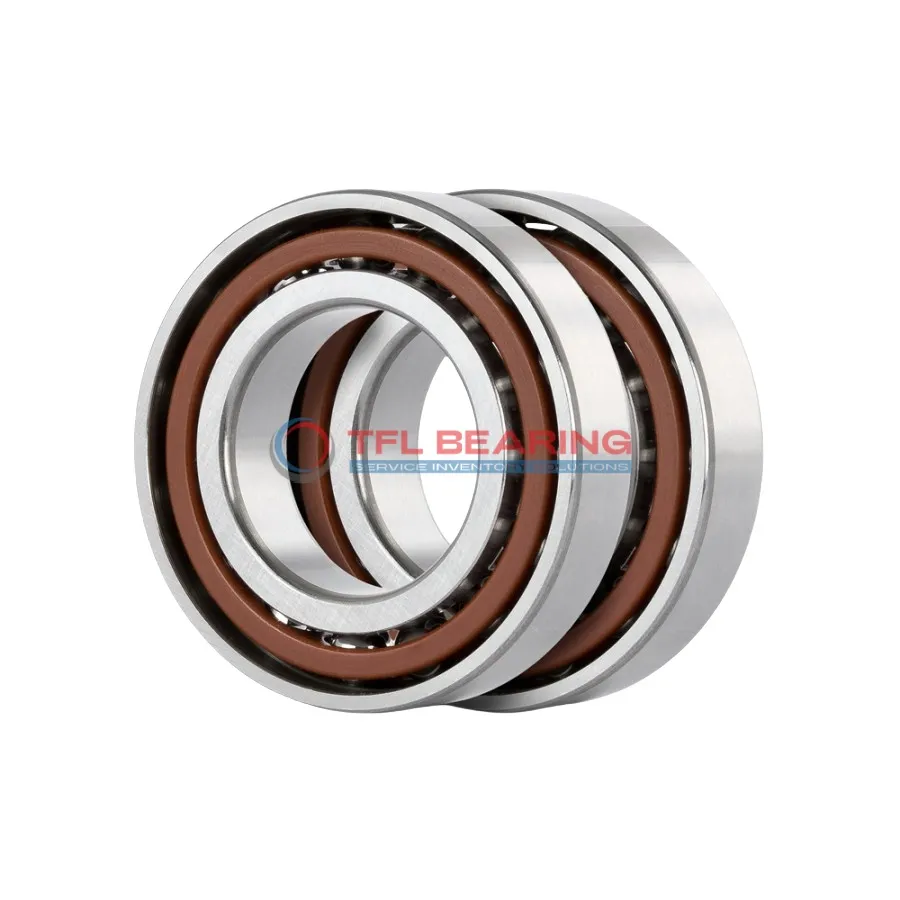

Dimension drawing · click to enlarge

Description

The 709 ACD/HCP4A is a super precision angular contact ball bearing with a compact size of 9mm by 24mm by 7mm, crafted from chrome steel and ceramic balls for durability. It handles radial loads up to 776 lbf and spins smoothly at speeds up to 130,000 RPM.

With a 25° contact angle and phenolic cage, it offers excellent stability and low friction. The open design allows for easy lubrication, ensuring long-lasting performance in temperatures from -30°C to 110°C.

This bearing is ideal for high-precision applications like machine tool spindles or dental equipment. Its P4 tolerance class ensures reliable accuracy, while the lightweight design (0.013kg) makes it easy to handle.

Interchangeable with SKF bearings, it’s a practical choice for replacements or upgrades in demanding environments.

Features

Why Choose 709 ACD/HCP4A Bearing for Precision Tasks?

709 ACD/HCP4A Bearing features a 25° contact angle, ideal for handling combined radial and axial loads with precision.
Its ceramic balls and chrome steel rings reduce friction, ensuring smooth operation even at high speeds.

The phenolic cage maintains ball alignment, enhancing durability and performance in demanding applications.
With a maximum speed of 130,000 rpm, it excels in high-speed machinery while maintaining accuracy.

Preloaded for optimal performance, 709 ACD/HCP4A Bearing is suited for applications requiring tight tolerances.
Its P4 tolerance class ensures consistent quality and reliability in precision engineering tasks.

Application

Key Fields for 709 ACD/HCP4A Bearing
709 ACD/HCP4A Bearing is commonly used in high-speed machine tools, where its precision and angular contact design ensure accurate performance. The ceramic balls reduce friction, making it ideal for applications requiring smooth rotation.

In robotics, 709 ACD/HCP4A Bearing supports delicate movements in robotic arms, thanks to its P4 tolerance class. Its compact size and lightweight design make it a great fit for space-constrained setups.

For dental drills and other medical instruments, 709 ACD/HCP4A Bearing offers reliable operation due to its phenolic cage and chrome steel rings. The high-speed capability ensures consistent performance in critical medical procedures.

Automotive applications like electric vehicle motors benefit from 709 ACD/HCP4A Bearing’s ability to handle both radial and axial loads. The lubricated design helps maintain efficiency even under continuous use.

In 3D printers, 709 ACD/HCP4A Bearing contributes to precise layer alignment, enhancing print quality. Its open seal type allows for easy maintenance, extending the bearing’s lifespan in demanding environments.
