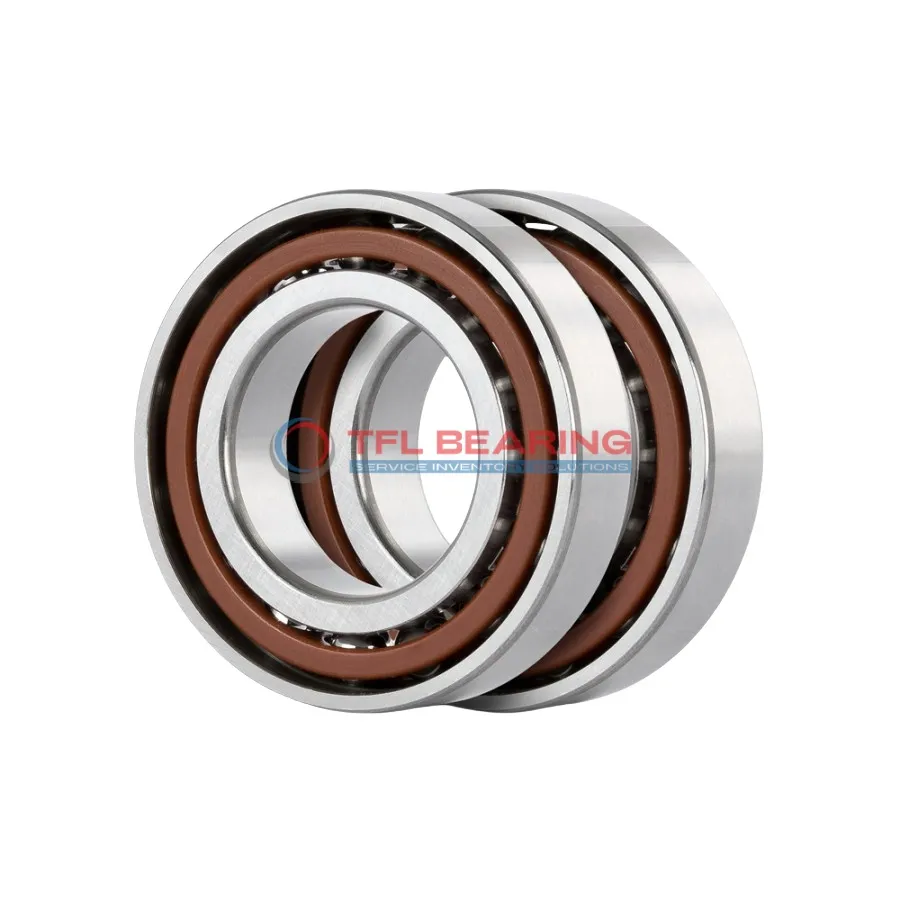

Super Precision Angular Contact Ball Bearings 707 ACDGA/HCP4A

Brand: TFL Bearing Interchangeable: SKF 707 ACDGA/HCP4A 7 mm × 19 mm × 6 mm Metric Open
Part number: 707 ACDGA/HCP4A
Super Precision Angular Contact Ball Bearings 707 ACDGA/HCP4A
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia7 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia19 mm
Outer Dia Tolerance-0.004mm to 0
Width6 mm
Width Tolerance-0.2mm to 0
Ball Dia3.572 mm
Performance
PreloadExtra light / Class A
Dynamic Radial Load544 lbf
Static Radial Load214 lbf
Temperature Range- 30°C to 110 °C
Max Speed170,000 rpm
Characteristics
Ball Qty8
Contact Angle25°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementNo
Number Of Bearings In Matched Set2
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationLubricated
Weight0.007 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 707 ACDGA/HCP4A is a super precision angular contact ball bearing with a compact size of 7mm by 19mm by 6mm. Made from chrome steel and ceramic balls, it offers smooth operation and durability.

With a 25° contact angle, it handles radial loads up to 544 lbf and spins at speeds up to 170,000 RPM. The extra light preload ensures minimal friction for high-precision applications.

The open design and phenolic cage make maintenance easy while maintaining performance. It works in temperatures from -30°C to 110°C, suitable for demanding environments.

Ideal for precision machinery like spindles or robotics, this bearing is interchangeable with SKF models. Its lightweight design (0.007kg) and universal matching options add versatility.

Features

Performance Features of 707 ACDGA/HCP4A Bearing

707 ACDGA/HCP4A Bearing is designed with a 25° contact angle, ideal for high-precision angular contact applications.
The chrome steel rings and ceramic balls ensure smooth operation and reduced friction.
With a dynamic radial load capacity of 544 lbf, it handles demanding tasks efficiently.
Its phenolic cage maintains ball alignment, enhancing durability and performance.

How Does 707 ACDGA/HCP4A Bearing Achieve High-Speed Performance?

707 ACDGA/HCP4A Bearing can reach speeds up to 170,000 rpm, thanks to its ceramic balls and precision design.
The extra light preload (Class A) ensures minimal friction and optimal performance.
Its open seal type allows for easy lubrication, maintaining smooth operation.
The P4A tolerance class guarantees high accuracy in critical applications.

Engineered for Precision: 707 ACDGA/HCP4A Bearing

707 ACDGA/HCP4A Bearing’s chrome steel rings and ceramic balls provide excellent wear resistance.
The phenolic cage ensures stability and reduces vibration during high-speed operation.
With a temperature range of -30°C to 110°C, it performs reliably in various conditions.
Its universal matching capability allows flexible arrangement options for different setups.

Application

Key Fields for 707 ACDGA/HCP4A Bearing
707 ACDGA/HCP4A Bearing is commonly used in high-speed machine tools, where its ceramic balls and phenolic cage reduce friction and heat buildup. The extra light preload ensures smooth operation in precision applications.

In robotics, 707 ACDGA/HCP4A Bearing excels in articulated arms, providing stability and accuracy for repetitive movements. Its P4A tolerance class makes it ideal for tasks requiring minimal deviation.

For dental handpieces, 707 ACDGA/HCP4A Bearing’s chrome steel rings and ceramic balls offer durability and quiet performance. The open design allows for easy lubrication, extending its service life in demanding medical environments.

What Makes 707 ACDGA/HCP4A Bearing a Preferred Choice?
707 ACDGA/HCP4A Bearing is a go-to for 3D printers, where its angular contact design handles both radial and axial loads efficiently. The high-speed capability ensures consistent print quality.

In optical equipment, 707 ACDGA/HCP4A Bearing’s precision reduces vibration, crucial for clear imaging. The lightweight construction also minimises strain on delicate components.

Built for Heavy-Duty Use: 707 ACDGA/HCP4A Bearing
707 ACDGA/HCP4A Bearing performs well in conveyor systems, managing angular loads with ease. Its phenolic cage resists wear, even in dusty industrial settings.

For electric motors, 707 ACDGA/HCP4A Bearing’s ceramic balls reduce energy loss, improving efficiency. The wide temperature range ensures reliability in varying operating conditions.
