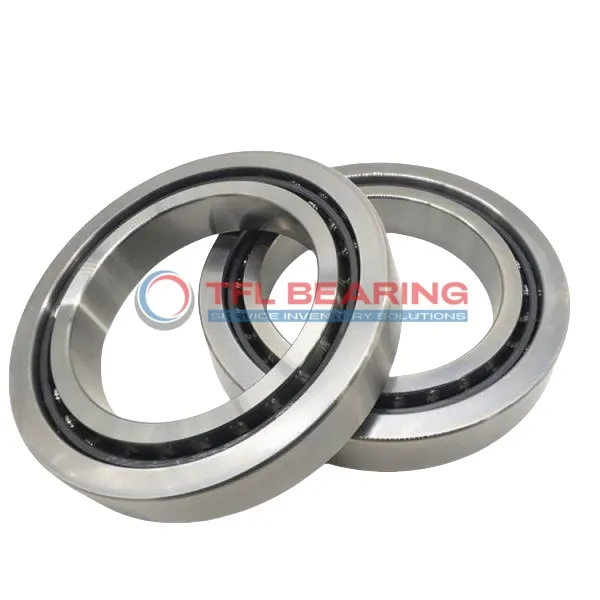

Super Precision Angular Contact Ball Bearings 7048 ACD/P4A

Brand: TFL Bearing Interchangeable: SKF 7048 ACD/P4A 240 mm × 360 mm × 56 mm Metric Open
Part number: 7048 ACD/P4A
Super Precision Angular Contact Ball Bearings 7048 ACD/P4A
In Stock
US$5,319.67 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia240 mm
Bore Dia Tolerance-0.012mm to 0
Outer Dia360 mm
Outer Dia Tolerance-0.015mm to 0
Width56 mm
Width Tolerance-0.3mm to 0
Ball Dia38.1 mm
Performance
PreloadAvailable
Dynamic Radial Load73,125 lbf
Static Radial Load104,625 lbf
Temperature Range-30° to 110 °C
Max Speed5,000 rpm
Characteristics
Ball Qty22
Contact Angle25°
Tolerance ClassP4 (ABEC-7)
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementNo
For Load DirectionAngular Contact
LubricationLubricated
Weight17.1 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 7048 ACD/P4A is a super precision angular contact ball bearing with a 240mm bore and 360mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 73125 lbf and operates smoothly at speeds up to 5000 RPM.

With a 25° contact angle and phenolic cage, it offers excellent stability and low friction. The open design allows for easy lubrication, enhancing its performance in demanding conditions.

This bearing is ideal for high-precision applications like machine tool spindles or industrial gearboxes. Its P4 tolerance class ensures reliable accuracy for critical operations.

Weighing 17.1kg, it’s built to last in temperatures ranging from -30°C to 110°C. Interchangeable with SKF bearings, it’s a practical choice for replacements or upgrades.

Features

Performance Features of 7048 ACD/P4A Bearing

7048 ACD/P4A Bearing is designed with a 25° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls ensure durability under high dynamic radial loads of up to 73125 lbf.

The phenolic cage maintains ball alignment, reducing friction and enhancing operational smoothness.
With a maximum speed of 5,000 rpm, it balances performance and longevity in precision settings.

7048 ACD/P4A Bearing operates efficiently within a temperature range of -30° to 110°C.
Its P4 tolerance class (ABEC-7) ensures high precision for demanding industrial applications.

Application

Key Fields for 7048 ACD/P4A Bearing
7048 ACD/P4A Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The phenolic cage reduces friction, making it suitable for continuous operation.

In robotics, 7048 ACD/P4A Bearing supports articulated arms, providing smooth movement under angular loads. Its P4 tolerance class ensures minimal vibration, crucial for delicate tasks.

For aerospace applications, 7048 ACD/P4A Bearing handles radial and axial loads in landing gear systems. The chrome steel construction offers durability in demanding conditions.

Medical imaging devices benefit from 7048 ACD/P4A Bearing’s precision, ensuring stable performance in CT scanners. The lubricated design extends service life in high-use environments.

In industrial pumps, 7048 ACD/P4A Bearing’s open seal allows for easy maintenance, while its high dynamic load capacity ensures reliability. The metric sizing fits standard European equipment.
