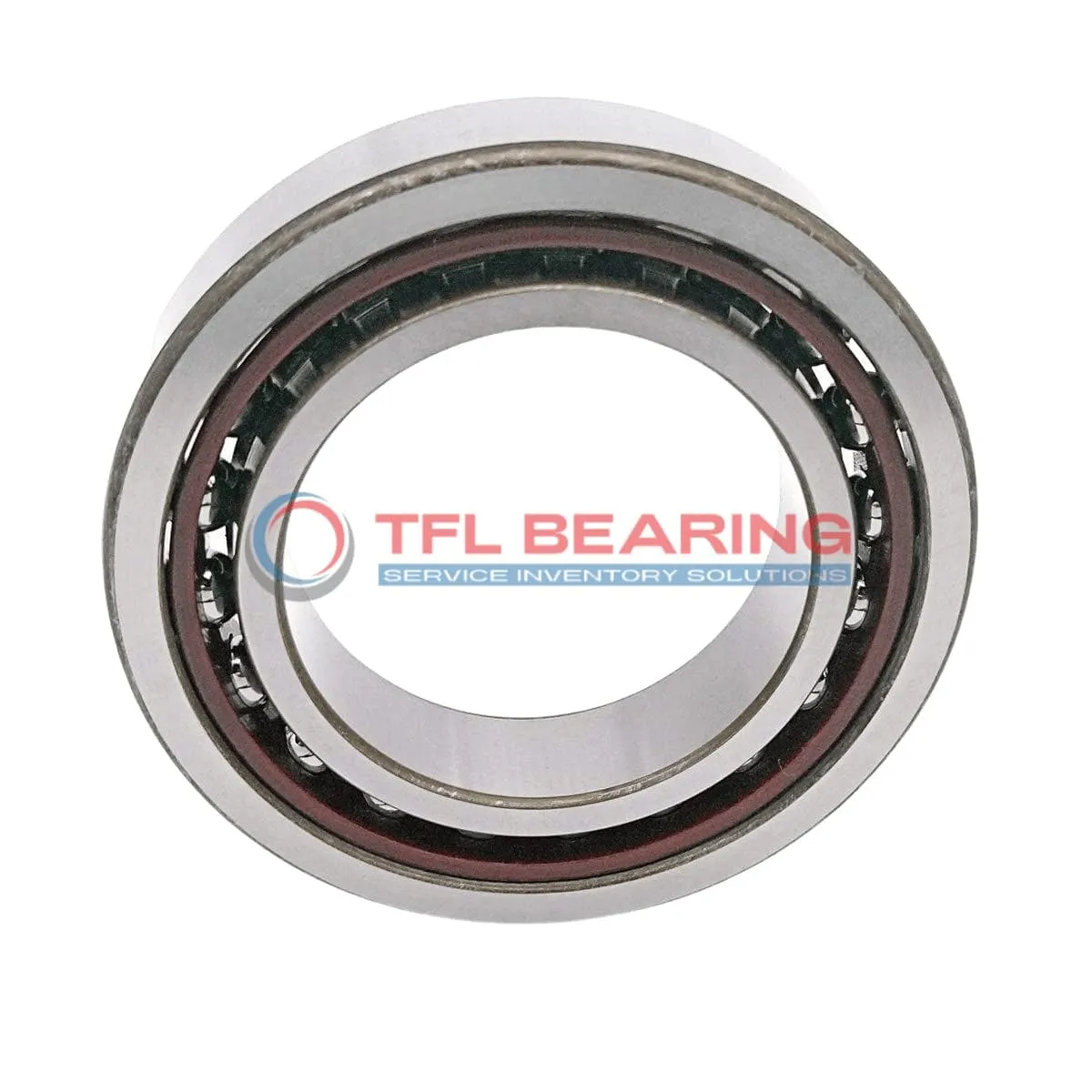

Super Precision Angular Contact Ball Bearings 7034 CD/P4A

Super Precision Angular Contact Ball Bearings 7034 CD/P4A

The 7034 CD/P4A is a super precision angular contact ball bearing with a 170mm bore and 260mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 47700 lbf and operates smoothly at speeds up to 8000 RPM.

With a 15° contact angle and open design, it offers excellent performance in high-speed applications. The phenolic cage ensures quiet operation and long service life.

This bearing is suitable for temperatures ranging from -30°C to 110°C, making it versatile for various environments. It meets the P4 tolerance class, ensuring high precision.

Ideal for machine tools or spindle applications where precision and speed are crucial. Weighing 6.99kg, it’s robust yet manageable for its size. Compatible with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7034 CD/P4A
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 170 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 260 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 42 mm
  • Width Tolerance -0.24mm to 0
  • Ball Dia 26.988 mm
  • Ball Qty 22
  • Contact Angle 15°
  • Tolerance Class P4 (ABEC-7)
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement No
  • Preload Available
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 47700 lbf
  • Static Radial Load 55125 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Max Speed 8000 rpm
  • Weight 6.99 kg
  • Price（$） 2644.848
Super Precision Angular Contact Ball Bearings 7034 CD/P4A dimension drawing
Download DWG Download PDF

Features

Performance Features of 7034 CD/P4A Bearing

7034 CD/P4A Bearing is designed with a 15° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls ensure durability and reliable performance under high radial loads.

The phenolic cage maintains ball alignment, reducing friction and wear during operation.
With a maximum speed of 8,000 rpm, it delivers smooth and efficient performance.

7034 CD/P4A Bearing operates in temperatures from -30° to 110°C, suitable for various industrial environments.
Its P4 tolerance class ensures high precision, making it ideal for demanding applications.

Application

Key Fields for 7034 CD/P4A Bearing
In industrial settings, 7034 CD/P4A Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate radial and axial load handling. The open seal type allows for easy lubrication, extending service life in demanding environments.

Where Is 7034 CD/P4A Bearing Used?
You’ll often find 7034 CD/P4A Bearing in automotive applications like electric motor systems, where its phenolic cage reduces friction and noise. Its metric sizing makes it a versatile fit for various European and Asian vehicle designs.

Built for Heavy-Duty Use: 7034 CD/P4A Bearing
For medical imaging equipment, 7034 CD/P4A Bearing’s chrome steel construction provides reliable performance in high-speed rotations. The P4 tolerance class ensures the precision needed for sensitive diagnostic devices.

Automotive vs Aerospace: Applications of 7034 CD/P4A Bearing
In robotics, 7034 CD/P4A Bearing supports mechanical arms requiring smooth, precise movements. Its 15° contact angle balances load distribution, making it suitable for both light and heavy-duty automation tasks.
